C106 fine aggregate sand equivalent test instrument

C106 fine aggregate sand equivalent test instrument

C106 fine aggregate sand equivalent test instrument

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: C106

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $800
Packaging Details: Wooden box
Delivery Time: Within 7days
Payment Terms: T/T
Supply Ability: 100 sets
Contact Now
Detailed Product Description
Power: Electronic Usage: Sand Equivalent Test Instrument

Product Description



Description





-Testing cohesive soil or impurities content of fine aggregate like natural sand, artificial sand and stone chips etc, to assess the cleanliness of aggregate, sand equivalent represented by SE





-Clay in fine aggregate clutter has a great influence on the fine sand aggregate performance, especially has the greatest effect in the asphalt mixture, concrete, mortar, it’s necessary to evaluate the index.





Technical indicators





               Technical Parameters
Voltage 220V±5V
Power 0.35 kW
Transparent cylindrical test tube outer diameter 40mm±0.5mm inner diameter 32mm±0.25mm height 420mm±0.25mm
Flush pipe Made by stainless steel, outer diameter 6mm±0.5mm, inner diameter:4mm±0.2mm, upper part has the switch valve, both sides of the lower part have hole pointed, bore diameter1mm±0.1mm
Weight piston club length 440mm±0.25mm, baseplate diameter 25mm±0.1mm
Mechanical oscillator the amplitude frequency 203 203mm±1.0 mm
Frequency 180times/min±2times/min



Product picutres:

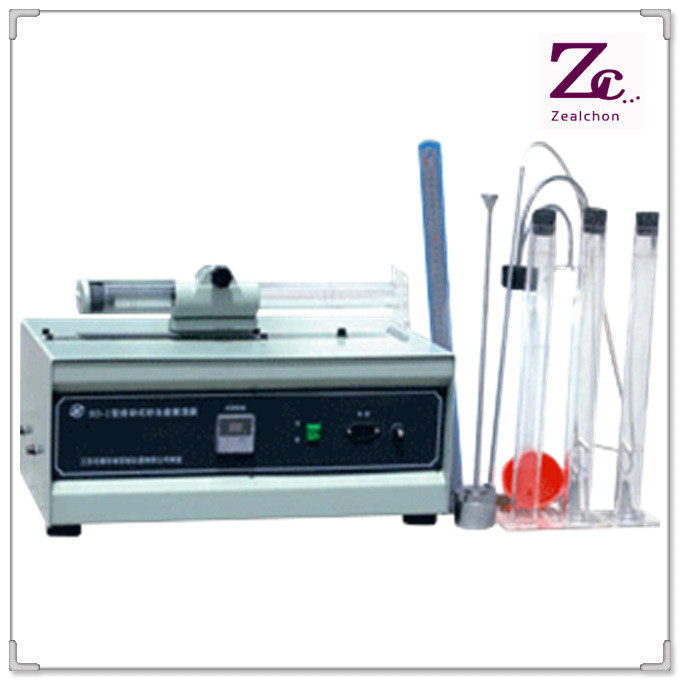

C106 fine aggregate sand equivalent test instrument
