Place of Origin: | China |
Brand Name: | zealchon |
Certification: | iso |
Model Number: | C002 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $6000 |
Packaging Details: | Wooden box |
Delivery Time: | Within 7days |
Payment Terms: | T/T |
Supply Ability: | 100 sets |
Power: | Electronic | Usage: | Soil Triaxial Shear Test |
---|

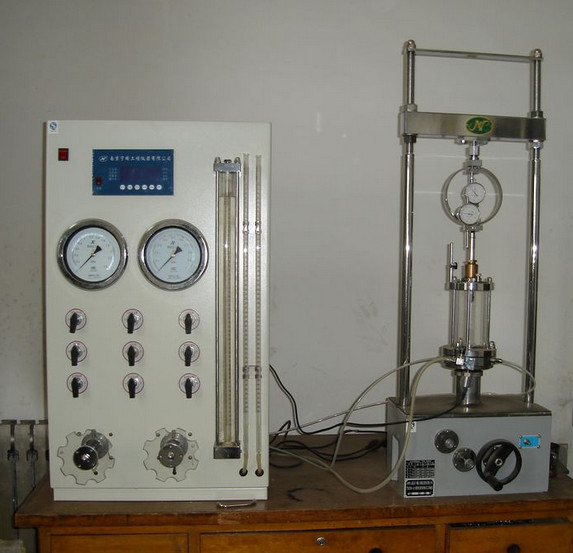

C002 Mid-pressure Triaxial Test Apparatus
Application:
TSZ-1A Bench Light-duty Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1Mpa and sample diameter of Φ39.1x80mm. It can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
Specifications:
Specimen:Φ39.1mm X 80mm
Capacity:10KN maximum 10KN
Strain rate:0.016-1.6mm/min. mechanical speed with 6 gears
Platen travel:50mm maximum
Confining pressure:(σ3)0-1MPa
Anti-pressure:(σb) 0-0.6MPa
Pore pressure:(u)0-1MPa
Volume deformation:0-25ml,minimum division:0.1ml
Axial displacement:0-30mm(micrometer)
Power supply:220V±10% 50Hz
Dimension:
Main unit:350 x 300 x 1100mm(L x W x H)
Controller:500 x 500 x 925mm(L x W x H)
Weight:170Kg
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
