C032 Soil permeability apparatus

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	iso
Model Number:	C032

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$350
Packaging Details:	Wooden box
Delivery Time:	Within 7days
Payment Terms:	T/T
Supply Ability:	100 sets

Contact Now

Detailed Product Description

Power:	Electronic	Usage:	Soil Permeability Apparatus

Product Description

C032 Falling Head Soil Permeameter

Application:

Falling Head Apparatus:

The falling head permeability test is a common laboratory testing method used to determine the permeability of fine-grained soils with intermediate and low permeability such as silts and clay-like. This testing method can be applied to an undisturbed sample.
Before the test, the sample must be completely saturated with water and the rate of the fall of the water could be read from the tubes.

Detailed Images

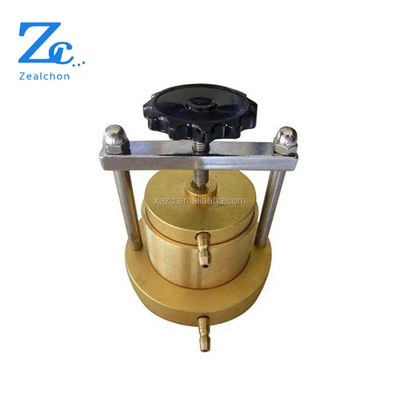

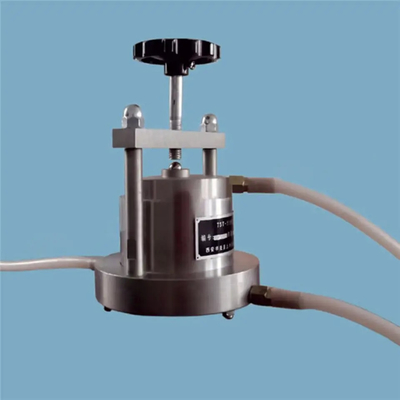

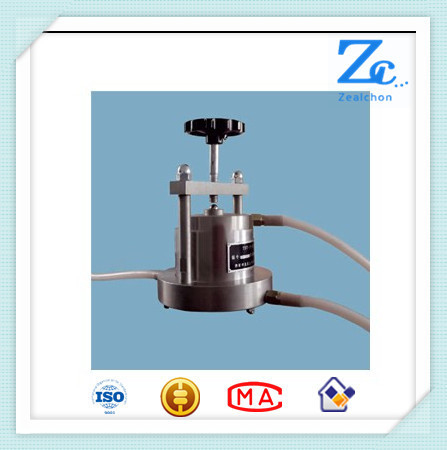

C032 Soil falling head permeability testing equipment

Specification:

parameters	details
specimen size	61.8mm height 40mm
cutting ring	61.8mm height 40mm band edge constant weight
porous stone	79.110mm /61.810mm
Variable water head tube	inner diameter 10mm length 2m Min division value 1mm
Dimensions	118mm(except water mouth) height 155mm
Weight	3.5kg
