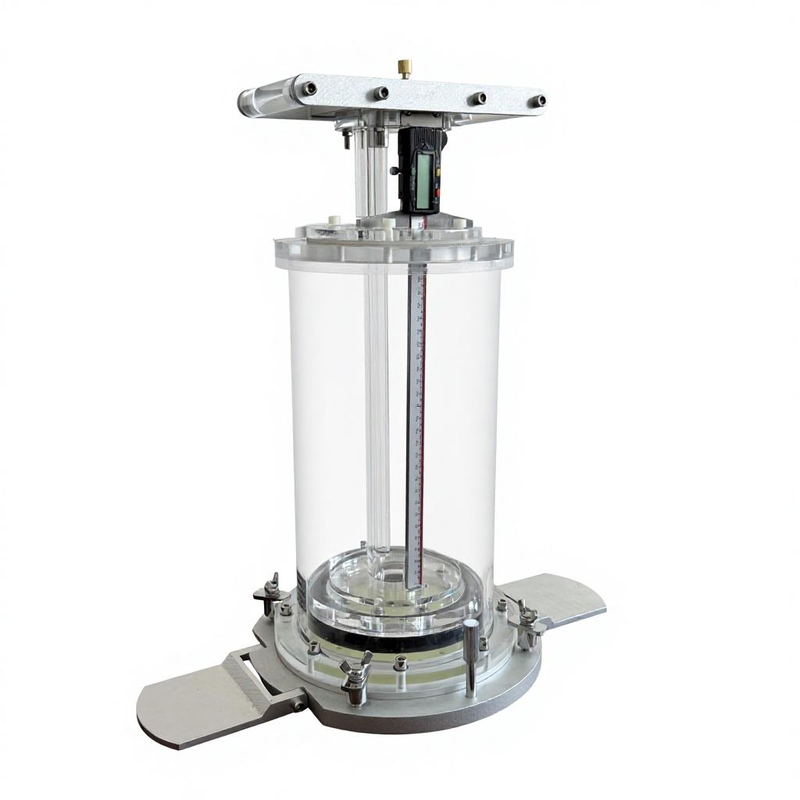

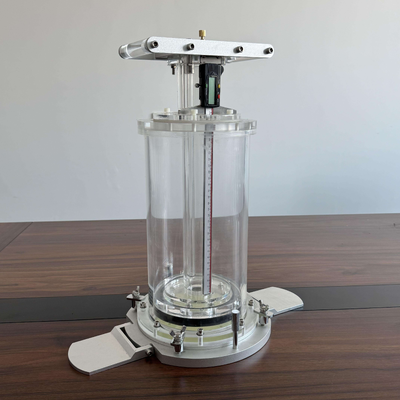

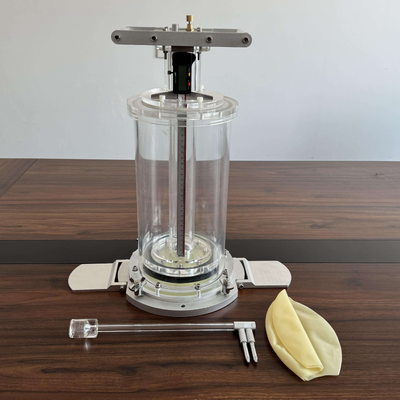

Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm

Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm

    • Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm
    • Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm
    • Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm
    • Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm
  • Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: CE ISO
    Model Number: C111

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $1200
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Cylinder volume: Cylinder Volume Piston Stroke: 280mm
     Balloon Pressure: 8KPa Detection Test pit size: 150mm × 200mm
    Dimensions: 255mm × 627mm

    Product Description
    Soil testing machine balloon method apparatus for fast precise soil density measurement suitable for field with piston stroke 280mm
    Specification
    C111 High Quality Cheap Price Balloon Method Soil Density Testing Apparatus TST-150

    This test method can replace sand filling method and water filling method, the test speed is fast, the precision is high, the
    operation is simple.

    Application Summary:

    Air bag volume measuring instrument is a test instrument for measuring the density of soil, which is suitable for field
    measurement. The density of soils with large particle sizes less than 20mm.
    Applicable standard: Code for Geotechnical Test of Railway Engineering (TB 10102-2004).

    Working principle:
    The balloon volume meter is based on Boyle's law of physics; During the test, a certain pressure is used to push the piston to transfer the medium (air) in the cylinder to the air bag placed in the test pit, so that the air bag expands close to the inner wall of the test pit; Record the data displayed by the measuring device and calculate the volume of the test pit.
    item
    value
    Warranty
    1 year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    Zealchon
    Model Number
    C111
    Piston stroke
    280mm
    Cylinder volume
    5200cm3
    Air bag pressure
    8KPa
    Test pit size
    150mm×200mm
    Certificate
    ISO
    Power supply
    220V 50Hz
    Warranty
    1 Year
    Product name
    Balloon Method Soil Density Test
    Application
    Soil
