    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: CE ISO
    Model Number: E37

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $1200
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Hydraulic Jack With Fixed Pumping Unit Capacity: 500KN Pressure Gauge And Flexible Metal Pipe: 5m Long - 1No.
    M.S (Mild Steel) Plate: 60 Cms X 60cms Sq. X 25mm Thick Plane M.S.Plate: 30cms X 30cm.sq. X 25mm Thick

    Product Description

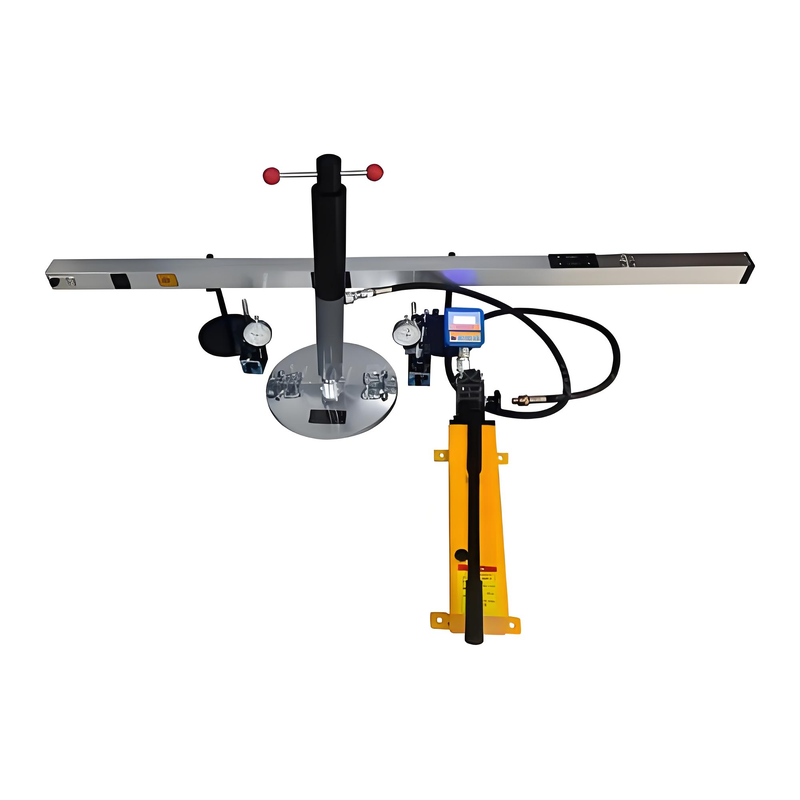

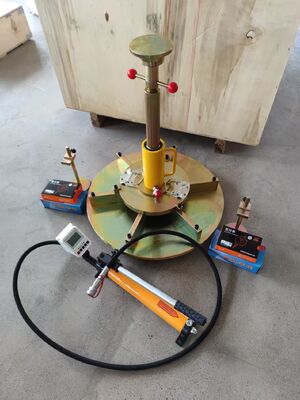

    E37 K30 Soil Field Test 30kn 50kn 100kn Plate Load Plate Bearing Tester
    Specification
    E37 K30 E37 K30 Soil Field Test 30kn 50kn 100kn Plate Load Plate Bearing Tester

    Use: for estimating the bearing capacity of shallow foundations in situ and for the design of flexible pavement; also used for load tests of soil and flexible pavement components
    Standard:

    ASTM D 1194, D1195, D1196, BS 1377:9

    Specifications:

    Hydraulic jack with fixed pumping unit capacity: 0-500 kN. x 0.5 kN.
    Pressure gauge and flexible metal pipe 5m long - 1No.
    Special ball and socket arrangement between the jack and the bearing plate
    Extension rod 12mm. dia x 25cm long
    Magnetic base with female thread on top for holding extension rod.
    Top end plate, 50mm, dia with male thread for fitting onto the extension rods and positioning the dial gauge plunger.
    Column 15cm dia x 25cm long with flanges complete with four bolts and nuts
    Column 15cm x 50cm long with flanges complete with four bolts and nuts.
    Bridge support of welded steel angle construction, 5m, span and stands approximately 30cm, high, fitted with two quick release clamps, dial bracket
    M.S (Mild Steel) Plate 60 cms x 60cms sq. x 25mm thick
    Plane M.S.Plate 45cms x 45cm.sq. x 25mm thick
    Plane M.S.Plate 30cms x 30cm.sq. x 25mm thick
    Dial Gauge 0.01mm x 25mm
    item
    value
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China
    Brand Name
    Zealchon
    Model Number
    E37
    Power
    Electronic
    Loading plate diameter
    300mm
    The jack load capacity range
    0-10t
    Jack stroke
    160mm
    Measured bridge span
    3000mm
    Manual pump rated pressure
    60mpa
    Product name
    Plate bearing load test
    Standard
    BS.EN.ASTM
    Application
    Ground foundation test
