    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: CE ISO
    Model Number: ZP-GY81S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $1000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Range Of Steel Bar Diameter: 6~50mm Range Of Protective Layer Thickness:: 1st Range 2~100mm/2nd Range 2~210mm
    Applicable Range For Diameter Measurement: 6~50mm Display Screen: 3.5-inch High-definition Screen
    Power Supply Method: Built-in Lithium Battery

    Product Description
    ZP-GY81S Nondestructive Testing Equipment Integrated Rebar Detector Steel Scanner
    ZP-GY81S Nondestructive Testing Equipment Integrated Rebar Detector Steel Scanner
    Specification

    Application Fields
    ZP-GY81S integrated steel reinforcement testing is a portable intelligent non-destructive testing equipment used to detect the construction quality of reinforced concrete structures. It can detect the thickness of the steel reinforcement protective layer, locate the position, direction, and distribution of steel reinforcement in mixed soil structures such as walls, tunnels, bridges, etc. It can also detect magnetic and conductive materials in non-magnetic and non-conductive media. Compliant with standards
    GB50010-2010 "Code for Design of Concrete Structures" (2015 edition) GB50204-2015 "Code for Acceptance of Construction Quality of Concrete Structures" GB/T50344-2019 "Technical Standard for Inspection of Building Structures" JGJ/T152-2019 Technical Specification for Testing Steel Reinforcement in Concrete GBT/50784-2013 "Technical Standard for On site Inspection of Concrete Structures"


    Product Features

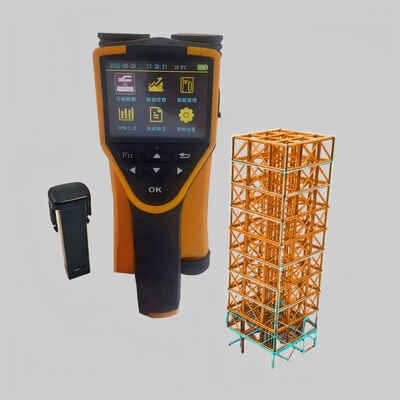

    The thickness of the steel reinforcement protective layer, the position and spacing of the steel reinforcement are displayed on the same screen, and the automatic identification of whether the thickness value meets the design value is supported; The Bluetooth version can be connected to a mobile phone through an APP, enabling real-time 3D display. The size and shape of the 3D model can be adjusted according to the actual situation, such as square and cylindrical components, to avoid accidents caused by climbing and falling, and to detect more efficiently and safely;
    Upgraded thickness detection mode, with protection layer accuracy up to 0.1mm, supporting left and right dual channel AD value prompts, and automatic center interpretation;
    Horizontal and vertical laser positioning, real-time display of steel bar positions and adjacent steel bar centerlines, multiple reminders with accurate frames and indicator lights, convenient for steel bar positioning and core drilling; Support multiple detection modes suitable for different special measurement environments, including concave detection and convex detection;
    JGJ detection automatically generates on-site measurement point thumbnails and customizes the detection sequence; Support remote instrument software upgrades, enjoy convenient service support, free driver installation for PC software, and easy completion of data processing and report generation.

    item
    value
    Warranty
    1 year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    zealchon
    Model Number
    ZP-GY81S
    Power
    Electronic
    Range of steel bar diameter
    6-50MM
    Range of protective layer thickness
    1st range 2~100mm/2nd range 2~210mm
    Display screen
    3.5-inch high-definition screen
    Power supply method
    built-in lithium battery
    Product name
    Integrated Rebar Detector
    Warranty
    1 Year
    Standard
    BS.EN.ASTM
    Power supply
    220V 50Hz
