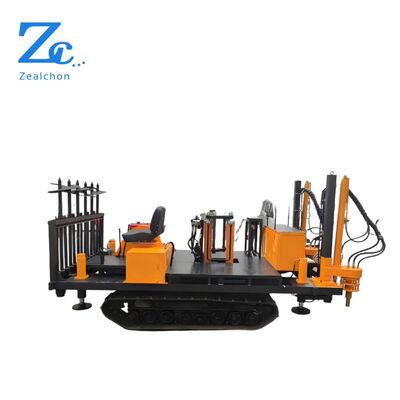

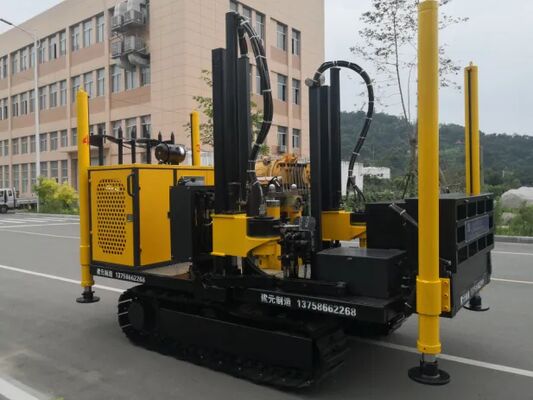

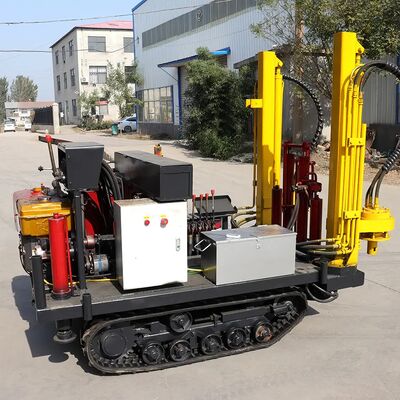

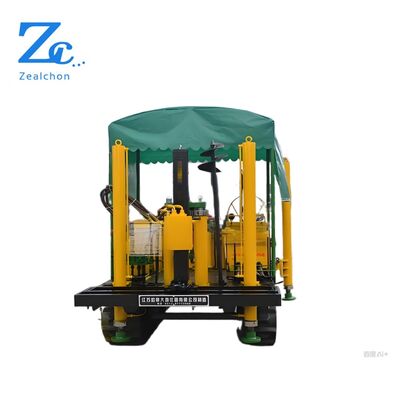

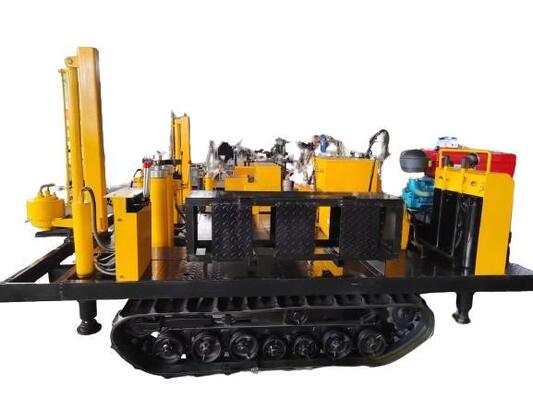

200KN Crawler Type Hydraulic Static Cone Penetrometer for Geotechnical Soil CPT CPTU Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	CE ISO
Model Number:	2Y2E

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$25000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Engine:	Single Cylinder 180 Diesel Engine Horizontal Four Stroke Water Cooling	Rated Power - Speed:	5.67KW-2600r / Min
CPT Hydraulic Cylinder Device:	Rated Penetration Force 200KN	Rated Pull Force:	240KN
Stroke:	570mm

Product Description

Soil Hydraulic CPT Static Cone Penetrometers

Professional Hydraulic Static Cone Penetrometer (CPT/CPTU Rig

Product Overview

Hydraulic Static Cone Penetrometer is a high-performance, crawler-mounted/truck-mounted geotechnical
investigation rig designed for precision soil characterization. It provides reliable in-situ testing for CPT (Cone Penetration
Test) and CPTU (Piezocone Penetration Test), complying with international standards such as ASTM D5778 and ISO 22476-1.Whether you are working on soft clay, loose sand, or complex layered soils, our rig ensures stable penetration and high-accuracy data acquisition for foundation engineering, bridge construction, and disaster prevention.

Features:

This CPT truck is used hydraulic excavators and crawler chassis bracing, it can walk in the beach, flood, sand, paddy and other harsh environment to carry out CPT job, icy roads can still walk.

It has applied the advanced hydraulic technology, using a combination of sub-chip multi-valve, compact structure, small size, easy installation, low pressure loss, overload characteristics of a good relief.
The CPT car can a machine is not only ideal for static cone penetration test, configure attachment may extend for CPTU (CPTU), since drilling pressuremeter (PMT), flat dilatometer , Vane (VCT), pressure-velocity (WVT) and other in-situ test trials.

The biggest advantage: fuel-efficient, saving manpower, high performance, high efficiency Under the country's first fully hydraulic rotary anchoring device (patent number: 201220081488.1 and patent number: 201220081492.8 configuration core barrel and drill Opening hardened concrete pavement etc.) and self-loading and unloading trucks devices (patent number: 201220382939.5), efficient and durable structure Compact, convenient and quick.

It only needs small power diesel engines for the whole vehicle power system, on a large extent, it reduced the fuel consumption and maintenance costs.

The operator can boot side edge flapper, safe and save manpower, at least two individuals can be a normal operation, it can greatly improve the work efficiency.

Parameter

Engine	single cylinder 180 diesel engine horizontal four stroke water cooling
Rated power - speed	5.67KW-2600r / min
CPT hydraulic cylinder device	rated penetration force 200KN
Rated pull force	240KN
Stroke	570mm
Weight	180 kg
Ground anchor form	single leaf or multi-leaf anchor anchor
Maximum working environment Permissible temperature:	45 ° C
Supporting probe	10cm2
Measuring instruments	static data collection or automatic collection of European and American brands

Testing results
