C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples

C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples

    • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
  • C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: CE ISO
    Model Number: C003-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $12000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Electric Cylinder Piston Stroke:: 100mm Electric Cylinder: Maximum Output 10KN (other Specifications Available: 5KN; 50KN; 100KN)
    Pressure Sensor: 0-10KN Accuracy 0.05N Deformation: 0-100mm Accuracy: 0.001mm Can Achieve Zero Reset At Any Point

    Product Description
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    Specification

    Purpose and Scope of Application
    The purpose of this experiment is to determine the changes in stress, strain, and pore water pressure of saturated soil, soil samples, or mixed samples with cement, gravel, or soil under dynamic action, in order to determine their failure strength (including liquefaction) under dynamic action, dynamic modulus and damping ratio when the strain is greater than 10-4, and other dynamic characteristic indicators (large elastic modulus).
    Composition of instruments

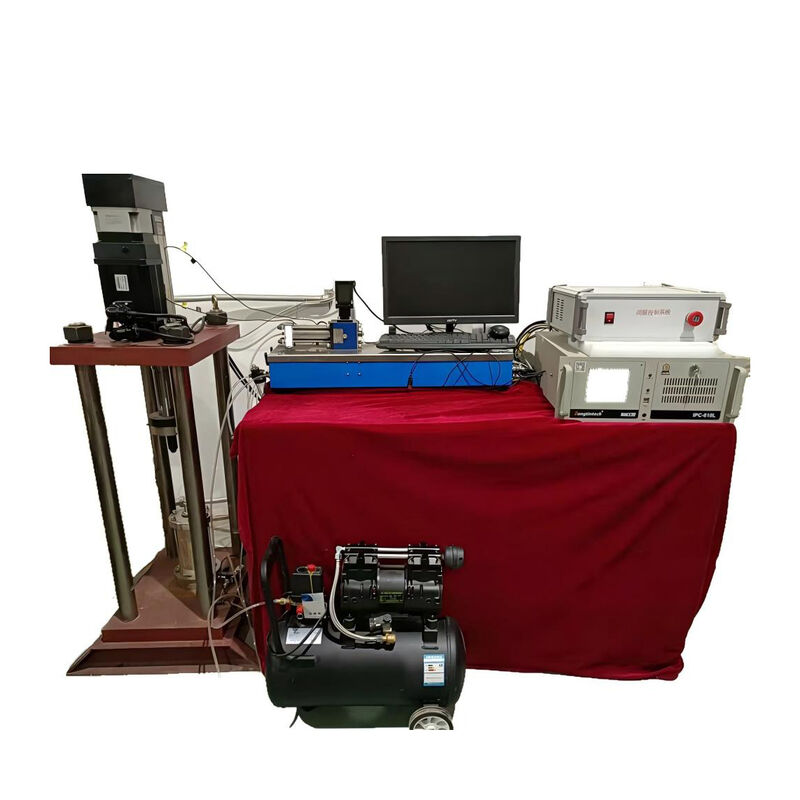

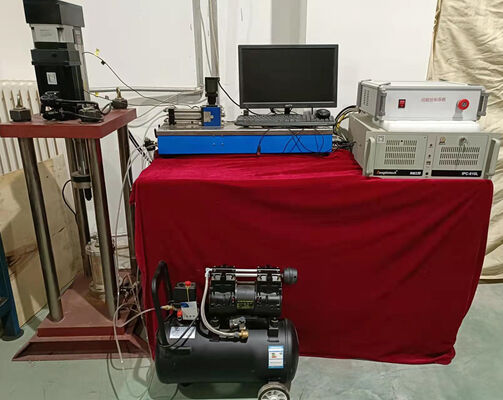

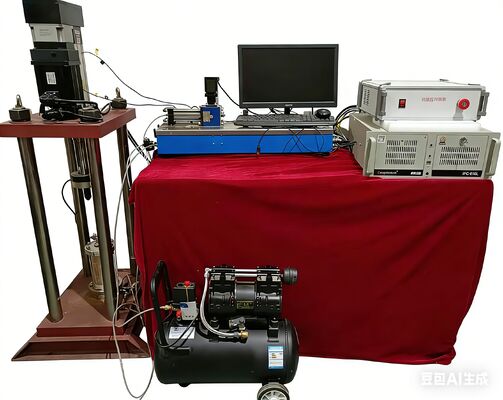

    This instrument is an electromagnetic servo vibration three-axis. Its composition includes the host, electro-hydraulic servo control system, pressure control system, computer control, data acquisition, and software processing system.
    (1) Host: including pressure chamber and servo electric cylinder. (2) Electromagnetic servo control system: used for axial vibration, applying axial dynamic stress, and controlling servo electric cylinders. (3) Pressure control system: Apply confining pressure, back pressure, including pipelines, gas sources, water sources, etc. (4) Computer control, data acquisition, and software processing system: The computer controls the entire process of the experiment, collects and records data in real-time, and automatically generates test record tables and curve reports upon completion of the experiment.
    item
    value
    Warranty
    1 year
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    ZEALCHON
    Model Number
    C003
    Power
    Electronic
    Electric cylinder piston stroke
    100mm
    Electric cylinder: maximum output
    10KN (other specifications available: 5KN; 50KN; 100KN
    Pressure sensor
    0-10KN accuracy 0.05N
    Deformation
    0-100mm Accuracy: 0.001mm can achieve zero reset at any point
    Power supply
    220V 50Hz
    Certificate
    ISO
    Product name
    Soil dynamic trixial tester
    Application
    Soil
    Testing results
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
    C003-A Soil Vibration Dynamic Triaxial Tester for Determination of elastic modulus of saturated soil and soil samples
