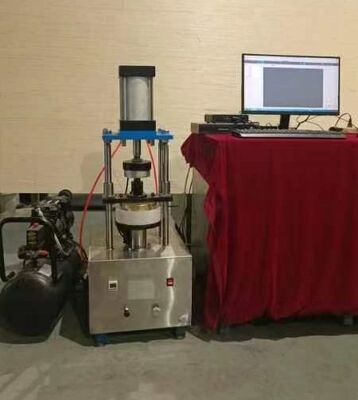

C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)

C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)

    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
  • C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: CE ISO
    Model Number: C038-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $12000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Soil Sample Size: 100mm Outer Diameter 60mm Inner Diameter 20mm High, Sample Area: 50.27cm2, Average Value 8.17cm Vertical Radial Servo Pneumatic Loading: 0-10KN, Adjustable According To The Required Sample Area, Constant.
    Torque Shear Sensor: : 0-50N. M ± 0.1N. M Voltage: 220V, 24V, 50Hz

    Product Description
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
    Specification
    C077-B Soil Automatic Ring Shear Direct Shear Tester

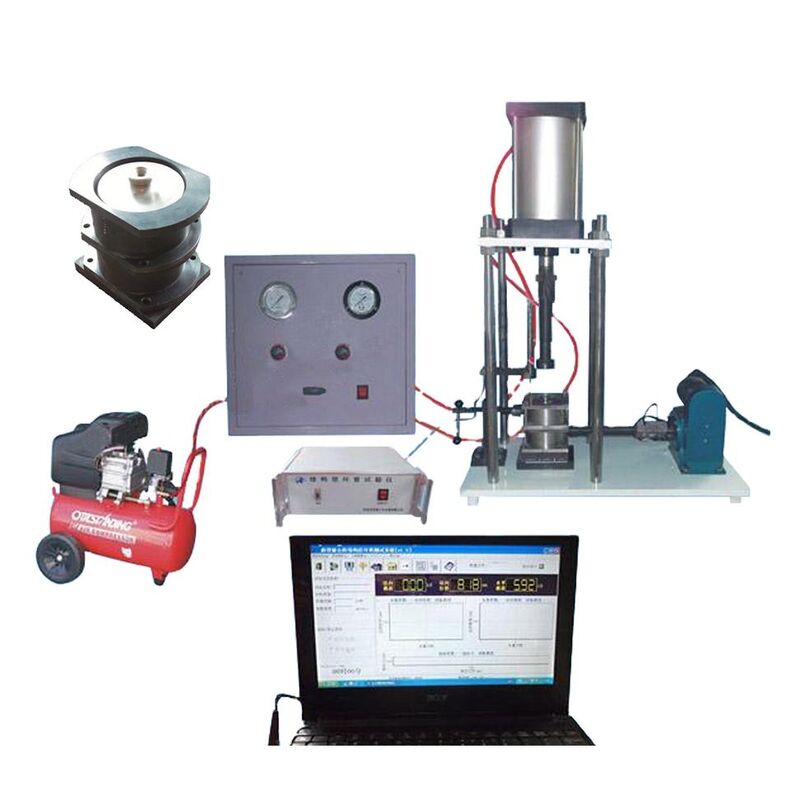

    The equal-strain control type direct shear instrument is used to measure the shear strength of soil. Usually, a specimen is used to apply shear force to shear under different vertical pressures. The shear stress at failure is obtained, and the shear strength coefficient, internal friction angle and cohesion are determined according to Coulomb's law. The instrument consists of a direct shear tester host, a pressure control system, a direct shear acquisition controller, an air pump, and host computer software. The direct shear controller displays the vertical pressure, shear force and displacement, and the speed can be set. The software can run under the Windows operating system, which can realize Automatic extraction, storage, printing, exporting and other functions of data acquisition instrument. Technical Parameters 1. Vertical loading: 0~10KN accuracy 0.005% 2. Pressurization method: cylinder pressurization. The pressure is loaded step by step according to the sample area, and the pressure is constant. 3. Shear force: 0~5KN (±10N) 4. Specimen size: ¢61.8×20mm 5. Limit displacement travel: 30mm Accuracy: 0.01mm 6. Shearing speed: 0~30mm/min can be set arbitrarily
    item
    value
    Warranty
    1 Year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    ZEALCHON
    Model Number
    C077-B
    Power
    Electronic
    Vertical loading
    0~10KN accuracy 0.005%
    Shear force:
    0~5KN (±10N)
    Specimen size
    61.8*20mm
    Limit displacement travel
    30mm Accuracy: 0.01mm
    Shearing speed
    0~30mm/min
    C038-A Soil Automatic Ring Shear Direct Shear Tester for for Residual Strength of Soil (disturbed or Undisturbed Pattern)
