Name: C110 Strain Type Soil Automatic Direct Shear Tester for the Shear Strength Coefficient, Internal Friction Angle, and Cohesion
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: C110
Price: 12000 USD
Availability: InStock

Home Products soil testing machine

C110 Strain Type Soil Automatic Direct Shear Tester for the Shear Strength Coefficient, Internal Friction Angle, and Cohesion

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	CE ISO
Model Number:	C110

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$12000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Vertical Loading::	0-10KN Accuracy 0.005%	Shear Force:	Standard 0-5KN
Test Piece Size:	Standard Size ￠ 61.8 × 20mm; Optional Specifications Such As φ 79.8mm	Ultimate Displacement Stroke:	30mm
Shear Speed:	0-30mm/min Can Be Set Arbitrarily

Product Description

Specification

C110 Soil automatic direct shear tester

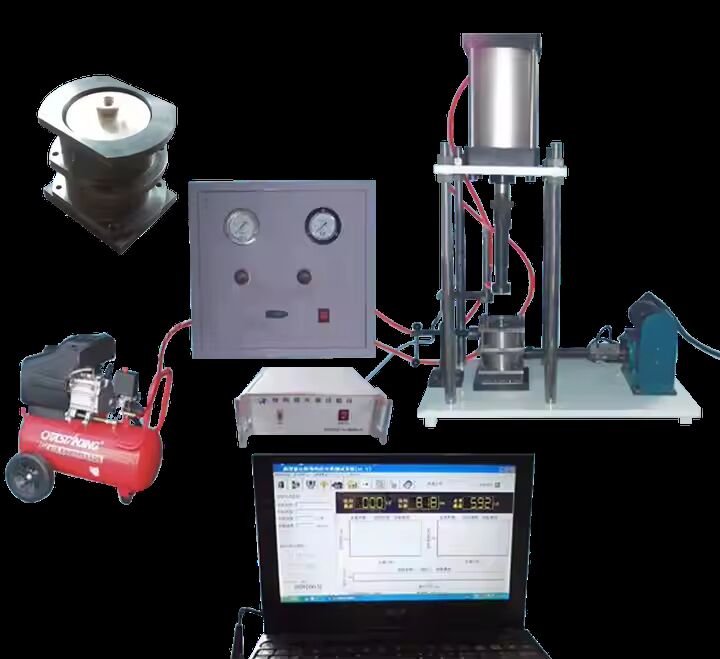

The strain controlled direct shear apparatus is used to determine the shear strength of soil. Usually, a specimen is sheared under different vertical pressures to obtain the shear stress at failure. The shear strength coefficient, internal friction angle, and cohesion are determined based on Coulomb's law. The instrument consists of a direct shear tester host, pressure control system, direct shear acquisition controller, air pump, upper computer software, etc. Direct cutting controller display High vertical pressure, shear force (using linear guides to prevent tilting motion), and displacement, with adjustable speed. This software can run on the Windows operating system and can automatically extract, store, print, and export data from the data acquisition instrument

item	value
Warranty	1 Year
Customized support	OEM, Software reengineering
Place of Origin	China
	Shaanxi
Brand Name	ZEALCHON
Model Number	C110
Power	Automatic
Soil sample size	61.8mm 79.8mm
Vertical loading	0-10KN
Pressure method	cylinder pressure
. Voltage	220V, 24V, 50Hz
Shear speed	0-30mm/min can be set arbitrarily
