Product Description
M5 Portable XRF Spectrometers Gold Analyzer for Precious Metals for On-the-go Testing
M5 is the latest XRF gold analyzer with high stability and faster processing HDSP technology (Hybrid Digital Signal Processor). Our New Generation tech is improved for better stability and accuracy for wide range of Au (Gold) samples and also Ag Pt based Jewellery samples. Specially designed Integrated Industrial grade PC and Chipset ensures very high data transmission between the DSP and Processor for reducing the Data loss and Transmission time.
Results are more stable and accurate and better than fire assay standard to detect Prohibited elements like - Ir, Ru, Re, Os, etc.
M5 occupies 30% lesser space than the current range of gold tester. Also its special electronic lock forbids user from intervening the testing process. Large testing chamber guarantees testing of almost all types of Jewellery without any compromise.
Cloud technology enable system provides Centralized data and Instrument monitoring for Businesses with Multiple branches and when instruments are spread in various locations.
Print results along with sample value estimation with integration of Electronic weighing balance and based on Current Gold prices (configurable as per customer request)
Application
Ø Hallmark Centre
Ø Testing And Assay Center
Ø Refinery and Exchange / Badlaa
Ø Jewellery Manufacturer
Ø Bullion
Ø Jewellery Showroom

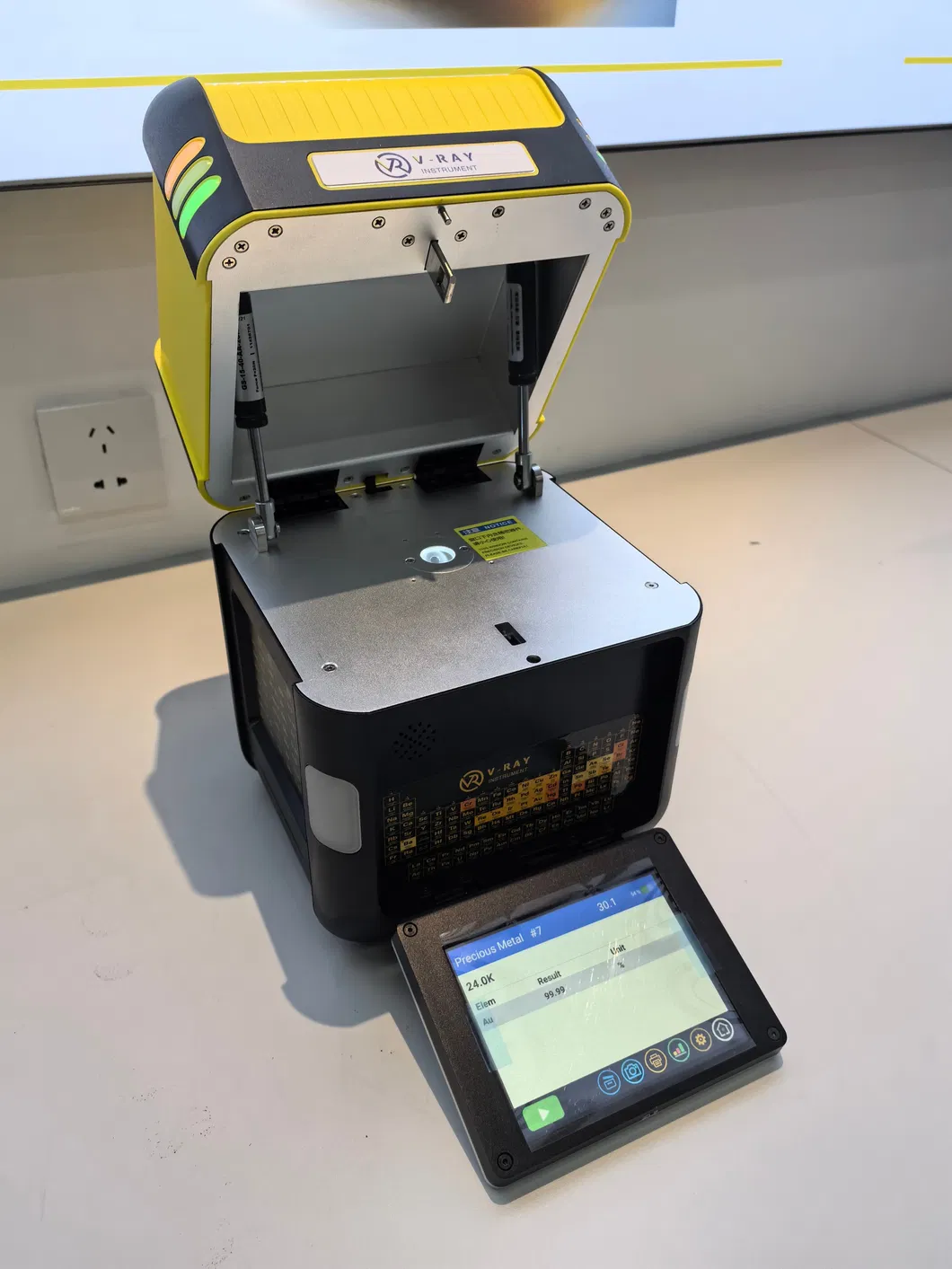

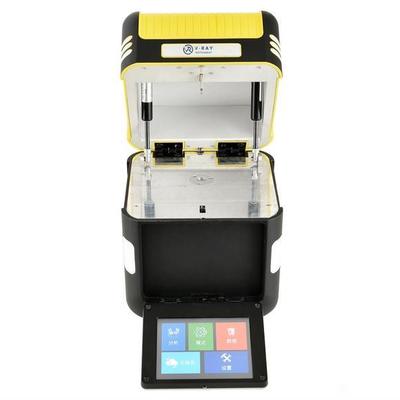

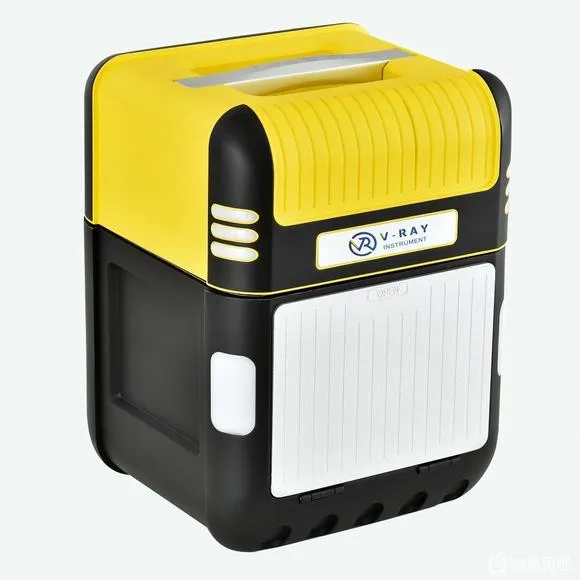

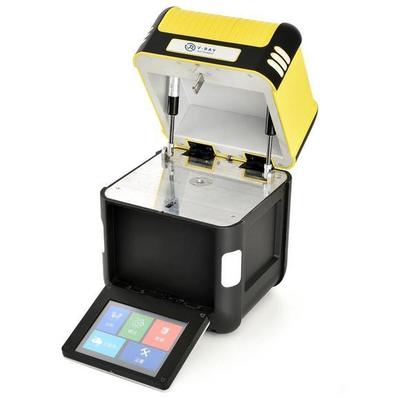

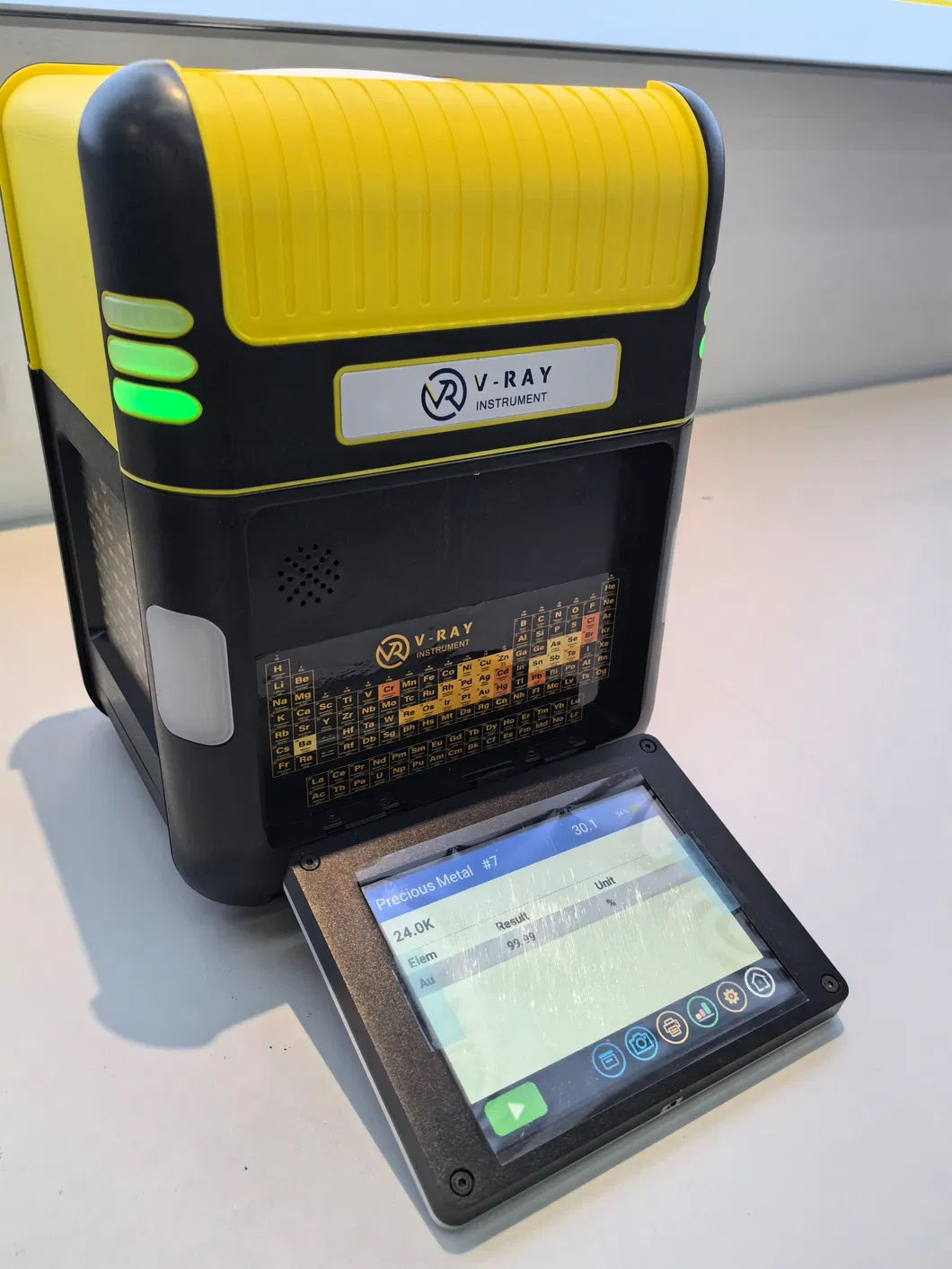

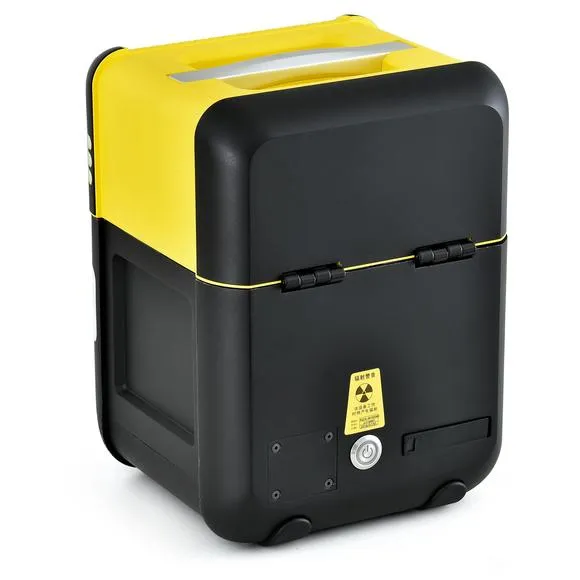

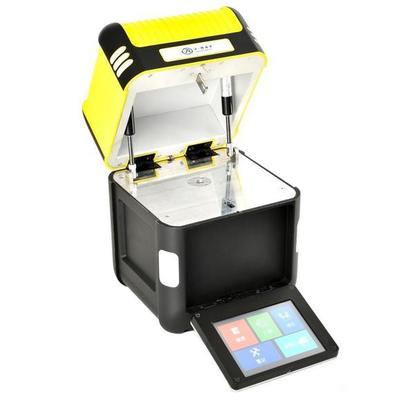

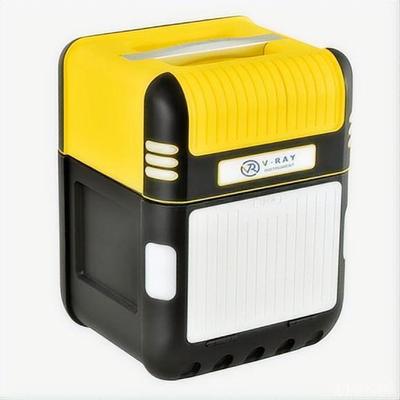

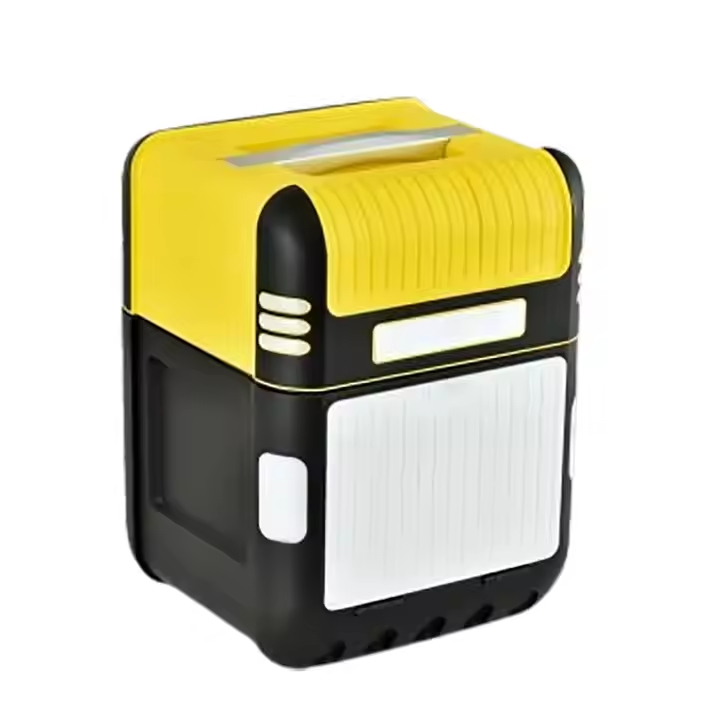

Detailed Photos
Product Parameters
| Working Principle: |
Energy Dispersive X-ray Fluorescence |
| Size(mm): |
450*400*350 |
| Precision: |
±0.05% |
| Operating Environment: |
Temperature -11~46ºC Humidity ≤70% |
| High Voltage: |
0~50KV/0~1MA |
| Detector: |
Si-Pin |
| Resolution: |
145Kev±5 |
| Testable Elements: |
Detects 20+ Elements Precisely better than Fire Assay. Identifies Prohibited Elements (Powder) Iridium, Ruthenium, Osmium, etc |
| Inbuilt Computer |
Industrial Integrated PC With External Display |
| Printer |
Thermal Printer |
| N/G Weight(KG): |
33 |
Packaging & Shipping
Test application

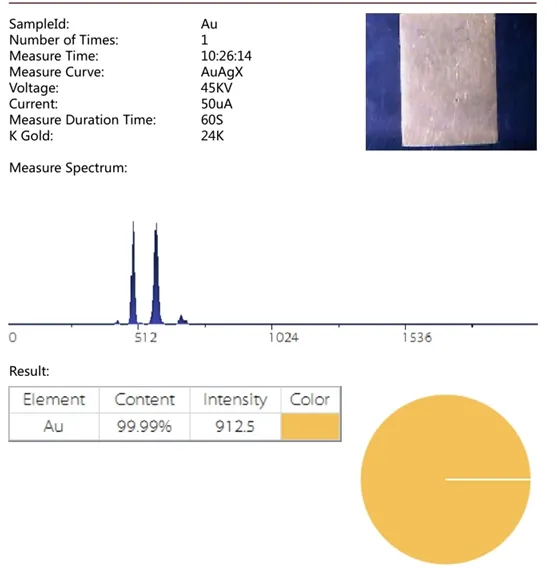

Testing report
