Name: E37 K30 Soil Field Test 30kn 50kn 100kn Plate Load Plate Bearing Tester
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: K30
Price: 1200 USD
Availability: InStock

Home Products soil testing machine

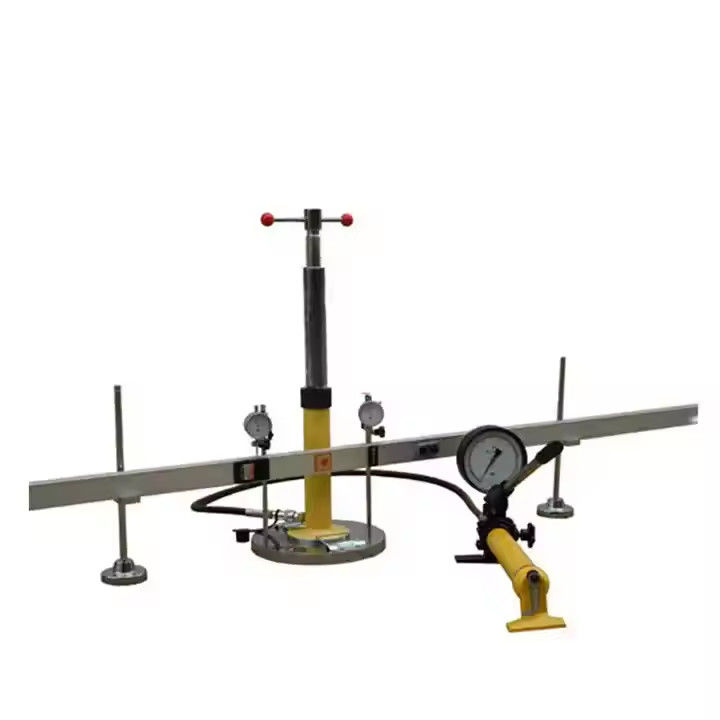

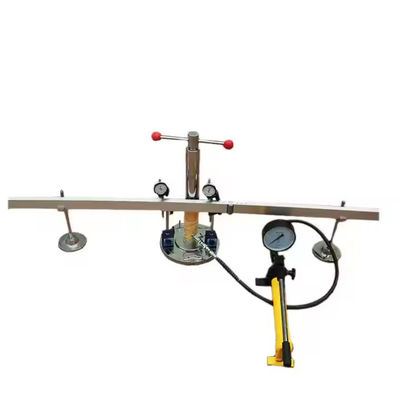

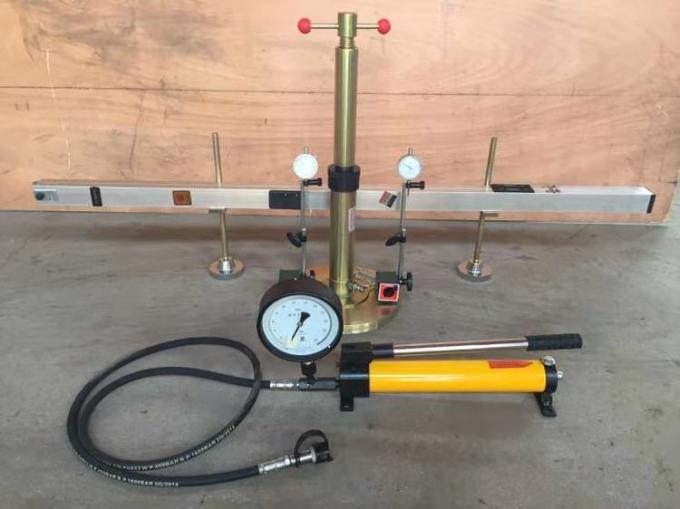

E37 K30 Soil Field Test 30kn 50kn 100kn Plate Load Plate Bearing Tester

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	K30

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$1200
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Hydraulic Jack With Fixed Pumping Unit Capacity:	0-500 KN. X 0.5 KN	Pressure Gauge And Flexible Metal Pipe:	5m Long
Top End Plate:	50mm	M.S (Mild Steel) Plate:	60 Cms X 60cms Sq. X 25mm Thick
Dial Gauge:	0.01mm X 25mm

Product Description

Specification

E37 K30 E37 K30 Soil Field Test 30kn 50kn 100kn Plate Load Plate Bearing Tester
Use: for estimating the bearing capacity of shallow foundations in situ and for the design of flexible pavement; also used for load tests of soil and flexible pavement components

Standard:

ASTM D 1194, D1195, D1196, BS 1377:9

Specifications:

Hydraulic jack with fixed pumping unit capacity: 0-500 kN. x 0.5 kN.

Pressure gauge and flexible metal pipe 5m long - 1No.

Special ball and socket arrangement between the jack and the bearing plate

Extension rod 12mm. dia x 25cm long

Magnetic base with female thread on top for holding extension rod.

Top end plate, 50mm, dia with male thread for fitting onto the extension rods and positioning the dial gauge plunger.

Column 15cm dia x 25cm long with flanges complete with four bolts and nuts

Column 15cm x 50cm long with flanges complete with four bolts and nuts.

Bridge support of welded steel angle construction, 5m, span and stands approximately 30cm, high, fitted with two quick release clamps, dial bracket

M.S (Mild Steel) Plate 60 cms x 60cms sq. x 25mm thick

Plane M.S.Plate 45cms x 45cm.sq. x 25mm thick

Plane M.S.Plate 30cms x 30cm.sq. x 25mm thick

Dial Gauge 0.01mm x 25mm

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	E37
Power	Electronic
Loading plate diameter	300mm
The jack load capacity range	0-10t
Jack stroke	160mm
Measured bridge span	3000mm
Manual pump rated pressure	60mpa
Product name	Plate bearing load test
Standard	BS.EN.ASTM
Application	Ground foundation test

Packing & Delivery

Company Profile

Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.

FAQ

1. who are we?

We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine

4. why should you buy from us not from other suppliers?

We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;

Accepted Payment Type: T/T,Credit Card,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,Japanese
