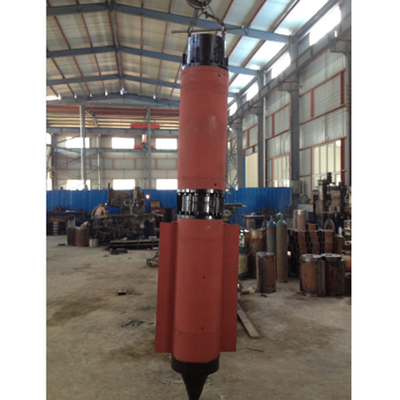

Vibroflot Equipment Method of Vibrating Infusion

Home Products stone columns Vibroflot Equipment

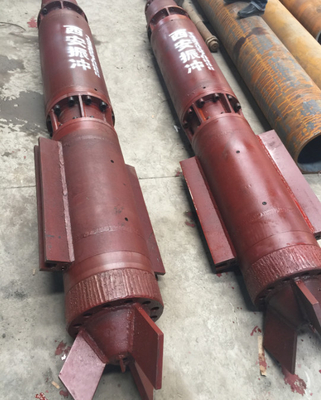

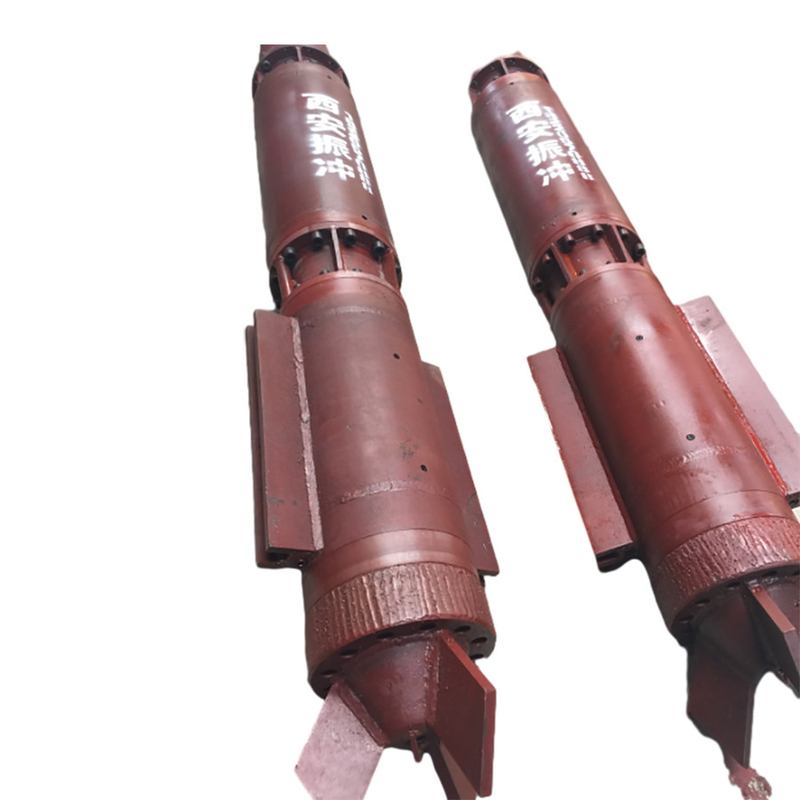

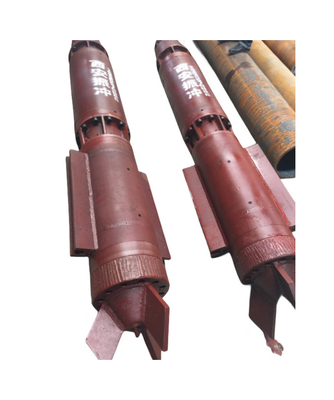

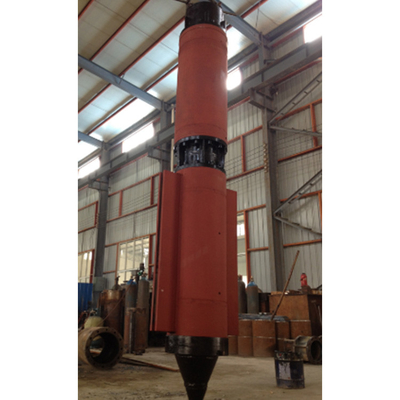

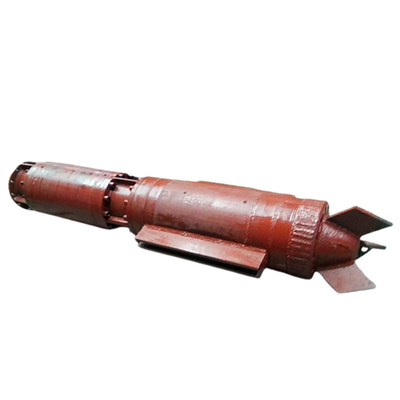

Vibroflot Equipment Method of Vibrating Infusion

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	ZCQ150

Payment & Shipping Terms:

Minimum Order Quantity:	1 year
Price:	$25000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Rated Power:	150kw	Rotating Speed:	1450 (1950)r/mim
Current Rating:	291A	Vibration Frequency:	24
Moment:	96

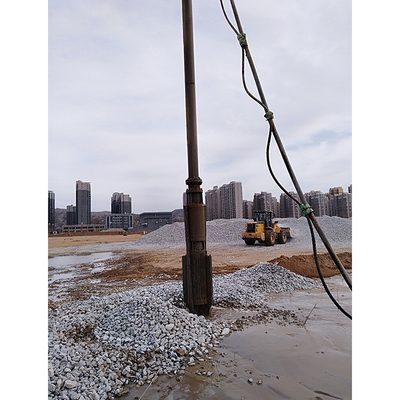

Vibroflot Equipment Method of vibrating infusion (referred vibroflotation) is the use of in situ ground vibration system

we are located in the historic city of China - the ancient capital of Xi'an Chanba New Area, location and convenient transportation, adjacent to China's largest inland port - Xi'an International Port District and a number of Expressway, exit from the motorway just a few hundred meters. Established in 1987, is set research and development, production, sales, promotion as one of the weak foundation and construction machinery are widely used trenchless technology engineering company. Enterprises always adhere to the quality first, the credibility of the first, with technical superiority, strong professional strength and excellence and pioneering spirit of forging ahead in Vibroflot development, production and sales, always in the same industry-leading level.
Enterprise since its inception, with its own tenacious struggle, flexible and efficient management system and a high level of technical research and development, from weak to strong, continue to occupy the domestic market and exported to overseas, sales rose, after twenty years of effort, It has become a domestic and international Vibroflot production and construction technology leader.

specification			ZCQ45	ZCQ55	ZCQ75	ZCQ100	ZCQ130	ZCQ150	ZCQ180	ZCQ240	ZCQ300
Vibro Motor	rated power	kw	45	55	75	100	130	150	180	240	300
	Rotating speed	r/mim	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)	1450 (1950)
	Current Rating	A	86	110	150	196	256	291	350	475	590
Vibration move machine body	Vibration frequency	HZ	24	24	24	24	24	24	24	24	24
	Moment	N.m	47	56	69	78	88	96	106
	Exciting force	kN	110-200	130-235	180-325	190-350	210-380	230-429	280-506	325-588	380-687
	Empty vibration amplitude	mm	≥18	≥16	≥15	≥15	≥16	≥18	≥21	≥23	≥26
	Empty LO current	A	≤35	≤40	≤50	≤60	≤70	≤80	≤90	≤120	≤150
The outer diameter of the body		mm	351	377	426	426	426	426	426	480	480
Body length		mm	≤2230	≤2465	≤2600	≤2750	≤2860	≤3000	≤3150	≤3100	≤3200
The total mass		kg	1000	1350	1800	1950	2200	2300	2400	2550	2660

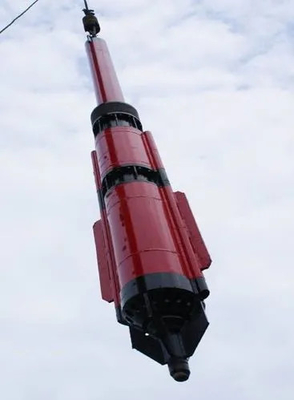

Vibroflot Equipment Method of Vibrating Infusion
