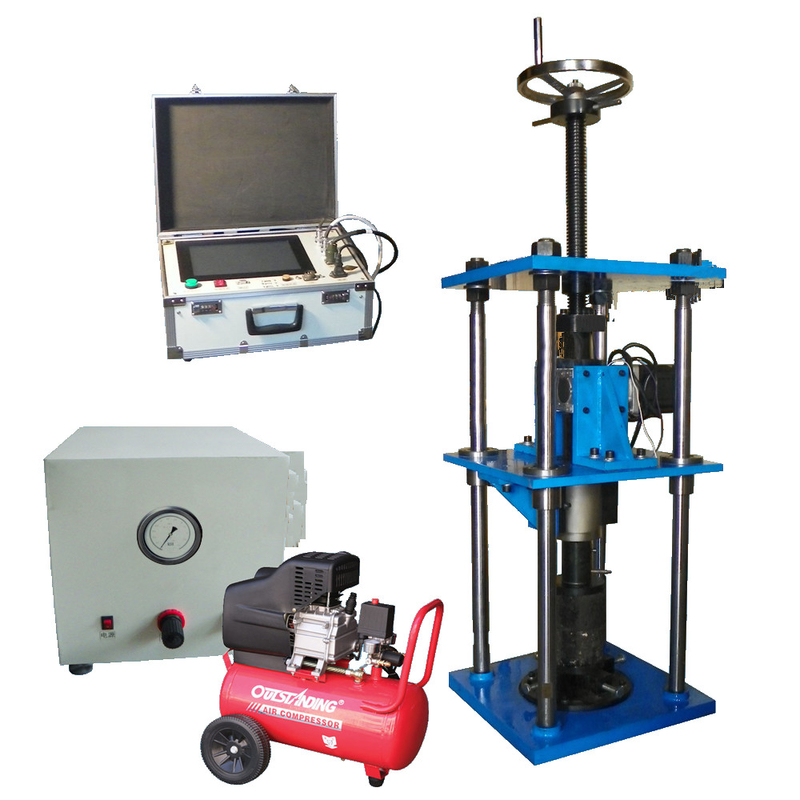

C038 Soil ring shear tester for measuring the residual strength of soil (disturbed or undisturbed pattern)

C038 Soil ring shear tester for measuring the residual strength of soil (disturbed or undisturbed pattern)

C038 Soil ring shear tester for measuring the residual strength of soil (disturbed or undisturbed pattern)

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: C038

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $13000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Soil Sample Size: 100mm Outer Diameter 60mm Inner Diameter 20mm High Vertical Radial Servo Pneumatic Loading: 0-10KN
Torque Shear Sensor: 0-50N. M ± 0.1N. M Shear Speed:: 0.001-4.5mm/min

Product Description
C038 Soil ring shear tester for measuring the residual strength of soil (disturbed or undisturbed pattern)
Specification
C038 Soil ring shear tester for measuring the residual strength of soil (disturbed or undisturbed pattern)

An ideal instrument for measuring the residual strength of soil (disturbed or undisturbed). As long as it consists of a shear ring container lifting and opening system, a vertical loading system, a torsion shear system, and a computer. Technical parameters: 1. Soil sample size: 100mm outer diameter 60mm inner diameter 20mm high, sample area: 50.27cm2, average value 8.17cm 2. Vertical radial servo pneumatic loading: 0-10KN, adjustable according to the required sample area, constant. 3. Torque shear sensor: 0-50N. m ± 0.1N. m 4. Voltage: 220V, 24V, 50Hz 5. Shear speed: 0.001-4.5mm/min, stepless speed regulation, adjustable at any time 6. Acquisition instrument, software, computer, display storage, recording, and large shear torque force. 7. Original soil pressure ring device: 1 set 8. Air source 0.8Mpa: 1 unit 9. 1 vertical normal loading air source processor 10. 1 set of dedicated acquisition instrument and software computer
item
value
Warranty
1 Year
Customized support
OEM, Software reengineering
Place of Origin
China

Shaanxi
Brand Name
ZEALCHON
Model Number
C038
Power
Electronic
Soil sample size
100mm outer diameter
Vertical radial servo pneumatic loading
0-10KN
Torque shear sensor
0-50N
. Voltage
220V, 24V, 50Hz
Shear speed
0.001-4.5mm/min
