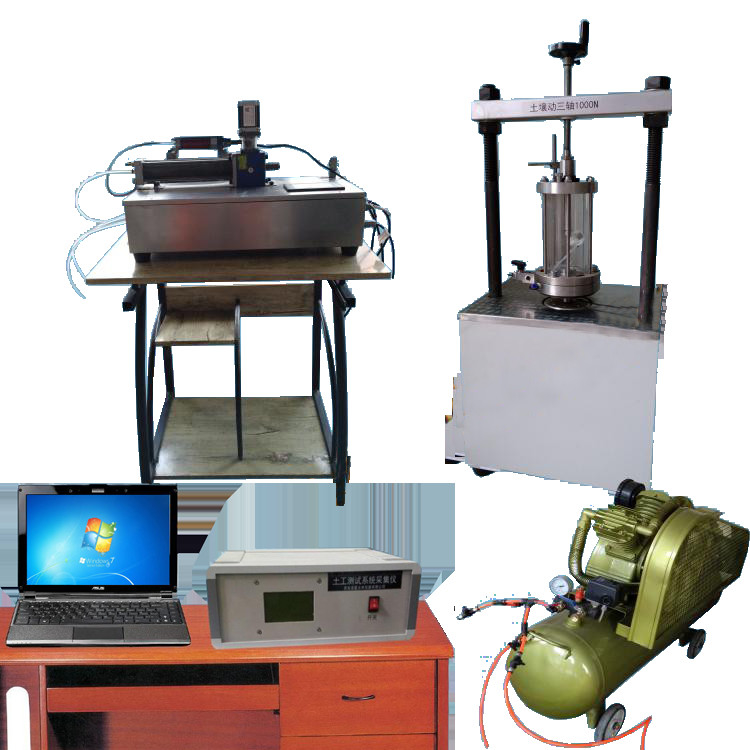

C115 Soil triaxial resonance column tester apparatus

C115 Soil triaxial resonance column tester apparatus

C115 Soil triaxial resonance column tester apparatus

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: C115

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $10000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Strong Force: 0-50Nm . Pore Pressure: 0-1MPa
Arbitrary Setting Of Confining Pressure: 0-1MPa Vibration Frequency: 0-10Hz
Amplitude: 0.08-1.2mm

Product Description
C115 Soil triaxial resonance column tester apparatus
Specification
C115 soil triaxial resonance column tester

The purpose of this experiment is to determine the dynamic shear modulus and damping ratio, or dynamic elastic modulus and damping ratio, of the specimen under cyclic loading at small strains. This experiment adopts the steady-state forced vibration method and the free vibration method. The excitation methods are rotational vibration and longitudinal vibration. It is advisable to prepare three or more specimens with the same properties for this experiment and conduct the test under different ambient pressures. The surrounding pressure should be determined based on the actual engineering situation. Generally, 100, 200, 300, and 400KPa are used Suitable for saturated sand, silt, and clay technical parameter 1. Strong force 0-50Nm, with an accuracy of 0.01Nm and constant dynamic setting at any time 2. Pore pressure 0-1MPa 3. Arbitrary setting of confining pressure 0-1MPa 4. Vibration frequency 0-10Hz 5. Amplitude 0.08-1.2mm 6. Real time collection, display, recording, image drawing, and data export by computer 7. Sample size: φ fifty × 100mm.
item
value
Warranty
1 Year
Customized support
OEM, OBM
Place of Origin
China

Shaanxi
Brand Name
zelachon
Model Number
C115
Power
Electronic
Strong force
0-50Nm
Pore pressure
0-1MPa
Arbitrary setting of confining pressure
0-1MPa
Vibration frequency
0-10Hz
Amplitude
0.08-1.2mm
Packing & Delivery
C115 Soil triaxial resonance column tester apparatus
Wooden Box
Company Profile
00:00

00:28

C115 Soil triaxial resonance column tester apparatus
C115 Soil triaxial resonance column tester apparatus
C115 Soil triaxial resonance column tester apparatus
Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine

4. why should you buy from us not from other suppliers?
We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,Credit Card,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese
