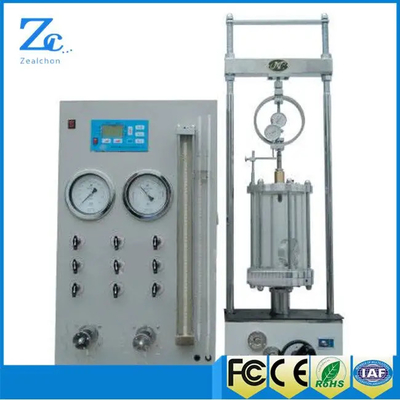

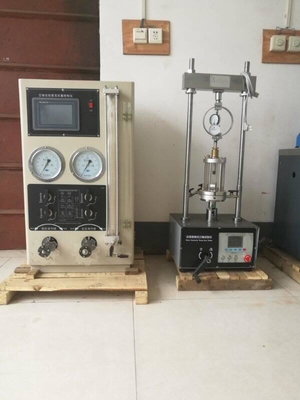

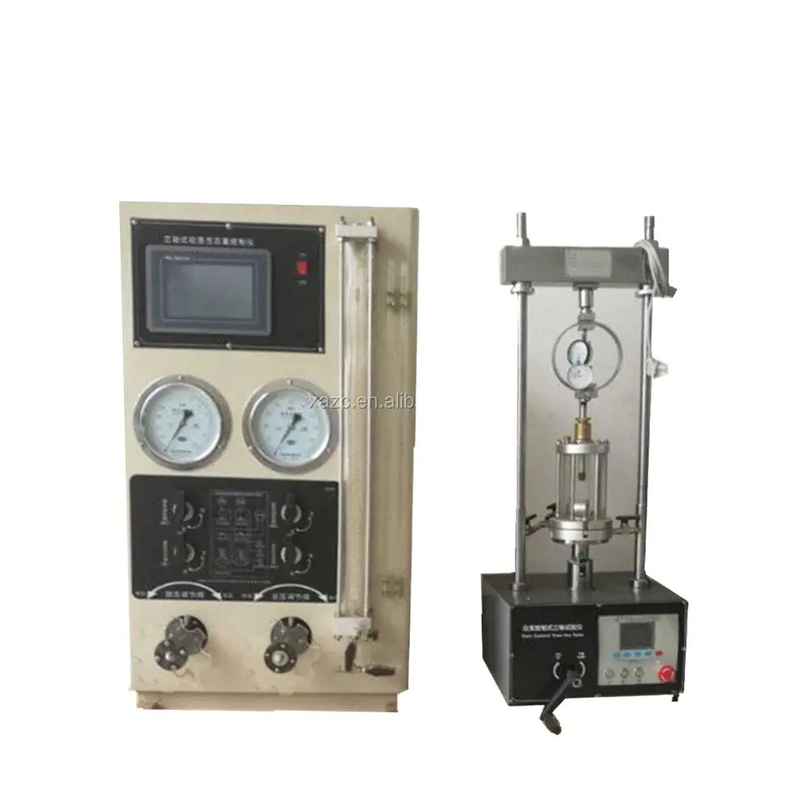

C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine

C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine

    • C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine
    • C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine
    • C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine
  • C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: C002

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $10000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Specimen: 39.1mm X 80mm,61.8mm X 125mm Capacity: 30KN
    Strain Rate: 0.0001-4.8mm/min Volume Deformation: 0-25ml,minimum Division:0.1ml
    Standard: BS.ASTM

    Product Description
    C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine
    Specification
    C002 Strain controlled triaxial apparatus 60KN Soil Laboratory Testing equipment triaxial testing machine

    The soil triaxial test is one of the most common testing methods for determining the shear strength of soils. Many different factors affect the shear strength of soils, including the amount of air and water in the soil, so the triaxial test was developed to calculate the shear strength of the soil in many different situations. In a standard triaxial test, a confining stress is applied to the entire cylindrical specimen and anaxial stress (usually referred to as the deviator stress) is applied to the top of the specimen. The deviator stress is applied using a loading frame, and since this stress is the greatest stress on the specimen, this is the maximum principal stress, denoted σ1. The confining pressure applied to the specimen is used to simulate the horizontal pressure experienced by the soil at the in-situ depth. In a standard triaxial test, this confining pressure causes the intermediate and the minimum principal stresses, denoted σ2 and σ3, to be equal. This is different from a true triaxial test, where σ1, σ2, and σ3 can each be individually controlled.

    In addition to determining the shear strength of the soil, the triaxial test is also used to calculate the angle of internal
    friction and cohesion of the soil, which are two parameters used most often by geotechnical engineers when attempting to calculate the ability of a soil to be used in various applications, such as under a foundation or as backfill for a retaining wall. In addition, the triaxial test is capable of determining the relationship between the stress and the strain on the soil, which is not possible with simpler shear strength tests, such as the Direct Shear Test or the Simple Shear Test.

    item
    value
    Warranty
    1 year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    zealchon
    Model Number
    C002
    Power
    Electronic
    Specimen
    39.1mm x 80mm,61.8mm x 125mm
    Capacity
    30KN
    Strain rate
    0.0001-4.8mm/min
    Volume deformation
    0-25ml,minimum division:0.1ml
    Standard
    BS.ASTM
    Certificate
    ISO
    Warranty
    1 Year
    Weight
    170kg
    Power supply
    220V 50Hz
    Product name
    triaxial test machine
