Product Description

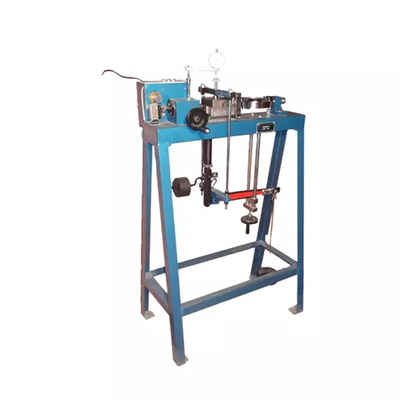

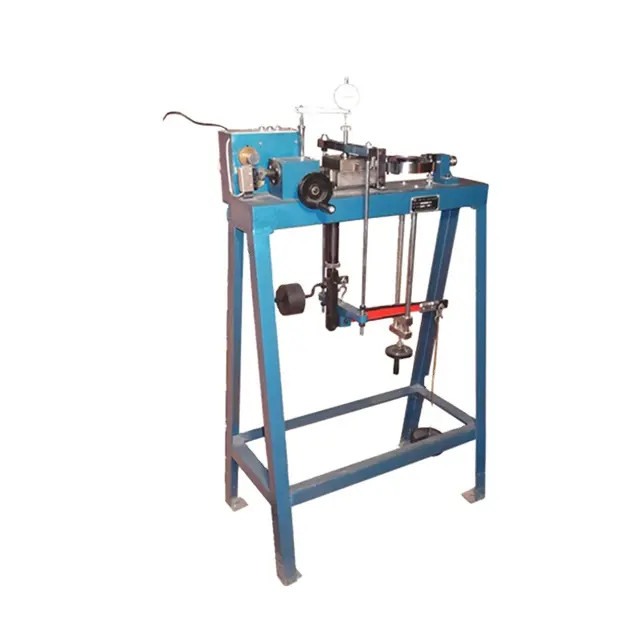

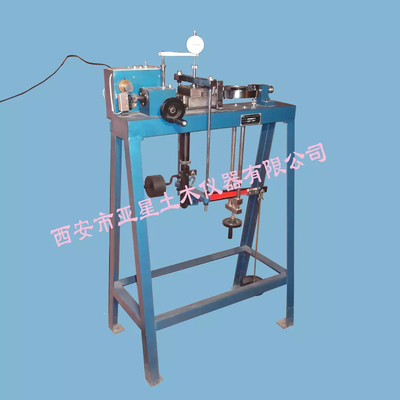

C012 Electric Strain Direct Shear Residual Testing Apparatus for soil testing machine
Being one of the eminent manufacturers and suppliers, we are involved in offering precisely designed and developed Direct Shear Test Apparatus Electronic. Manufactured in accordance with the preset industry standards, the offered apparatus comes in great capacity and an excellent range of maximum overload. Proffered selection is provided at affordable rates.
Features:
Great capacity
Low power consumption
Precisely engineered
Specifications:
| Mode of Digital Display |
The decimal display point is positioned by the channel selector switch |
| Power |
220V±10% mains, 50Hz, Single Ph. AC Supply |
| No. of channels |
3 |
| Parameter display |
By a selector switch |
| |
|
| EK DS-51101B Load Cell 1 No. |
| |
| Capacity |
2 kN (200 Kgf) Universal Type, TCPR. with 3 meter long cable without hooks |
| Max. overload |
110% of the rated capacity |
| Sensing element |
Strain Gauges in full bridge configuration |
| |
|
| EK DS-51101C Displacement Sensor 2 Nos. |
| |
| Range |
± 20 mm. Displacement sensor with 3 metre long cable |
| Sensing element |
LVDT Complete as above |
Automatic collection of iso-strain control direct shear instrument (stepless speed regulation)

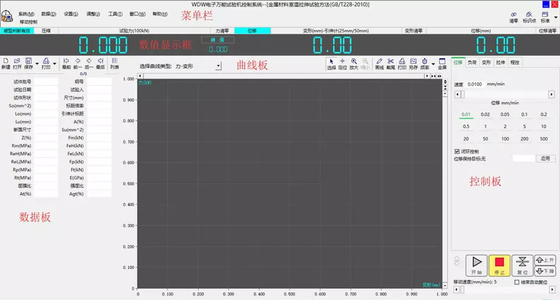

Digital display and other strain-controlled direct shear instruments use electronic digital technology to transmit data, and the geotechnical test data processing and acquisition system software automatically collects, records and stores test data in real time. Compared with previous instruments, it saves the trouble of manual data reading and improves work efficiency.
The digital display equal strain controlled direct shear instrument is used to determine the shear strength of soil.Usually, a specimen is used to apply shear force to shear under different vertical pressures, and the shear stress at failure is obtained, and the resistance is determined according to Coulomb's law. Shear strength coefficient, internal friction angle and cohesion.
Digital display equal strain control direct shear instrument can be suitable for slow shear, fast shear and repeated shear tests of soil
