Name: 50kn Hydraulic Portable Field Use Soil Penetration Test CPT Static Cone Penetrometer Machine
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: 2y-20t
Price: 13000 USD
Availability: InStock

Home Products soil testing machine

50kn Hydraulic Portable Field Use Soil Penetration Test CPT Static Cone Penetrometer Machine

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	2y-20t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$13000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Rated Power - Speed:	5.67KW-2600r / Min	Rated Penetration Force:	50KN
Rated Pull Force:	70KN	Stroke:	570mm
Weight:	180 Kg

Product Description

Product Description

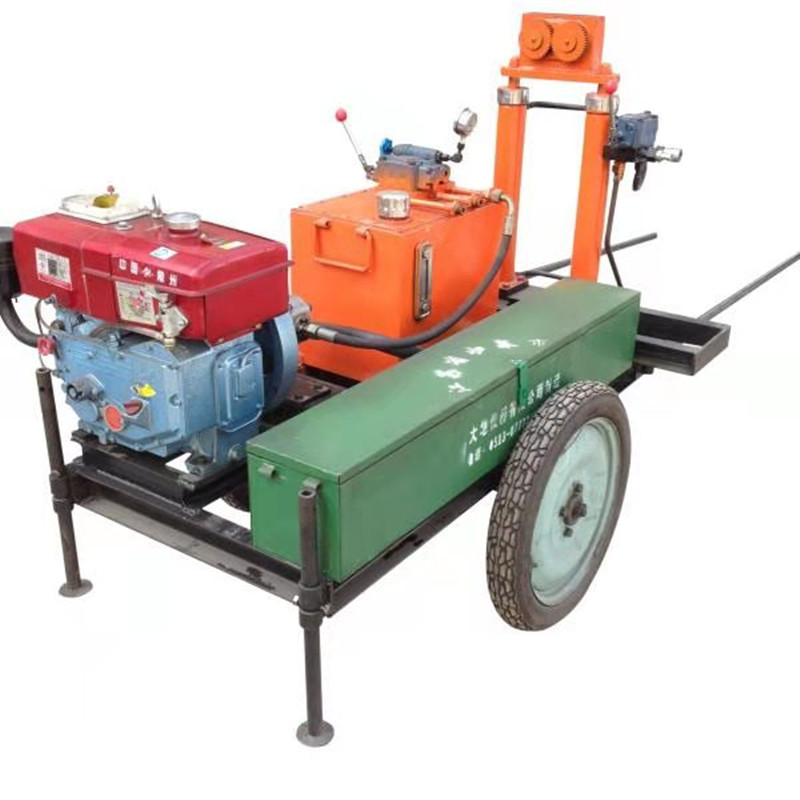

50KN Hydraulic portable Field use soil penetration test CPT static cone penetrometer machine

WYSB-50 double cylinder light hydraulic static touch machine is a very economical and ideal CPT test equipment. Independent hydraulic power unit and hydraulic cylinder device, with high pressure hose and hydraulic quick connector flexible connection. Lightweight size is easy to carry, can be almost any other large equipment can not reach the place to survey, especially for the hole in the hole hole. It can also be easily installed on a wide range of new or existing platforms such as transport cars, crawler chassis, trolleys, barges and so on.
The use of high-end quality of the hydraulic components and other components, the effective protection of the equipment stable and reliable performance. The use of anti-high oil temperature design, effective protection in high temperature weather environment equipment life and efficiency.
The accessories can be extended for in-situ test tests such as CPTU and VCT.

The main technical parameters:

Engine: single cylinder 180 diesel engine horizontal four stroke water cooling
Rated power - speed: 5.67KW-2600r / min
CPT hydraulic cylinder device: rated penetration force 50KN rated pull force 70KN
Stroke 570mm can quickly rise
Card Strap Type: Mechanical Strap Automatic Clamp or Pad Insertion
Form of transport: special trolley
Weight: 180 kg (without accessories)
Under the anchor form: hydraulic under the anchor or artificial anchor
Ground anchor form: single leaf or multi-leaf anchor anchor diameter (mm): 200 ~ 250
Maximum working environment Permissible temperature: 45 ° C Minimum ambient temperature: -25 ° C °
Supporting probe: 10cm2, single and double bridge static probe, measuring cross-plate probe, pore water pressure probe or European and American brand multi-function probe.
Measuring instruments: static data collection or automatic collection of European and American brands
Probe rod specifications (mm): the overall high-strength non-joint probe Φ28 ~ Φ32 (optional) or supporting European and American brands

50kn Hydraulic Portable Field Use Soil Penetration Test CPT Static Cone Penetrometer Machine

Specification

item	value
Warranty	1 year
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	NDJT-10T
Power	Electronic
Hydrostatic Exploration Machine:	2Y-20T
Pull force	240KN
Penetration Rate	1.2m/min
Pulling speed	3-4m/min
Certificate	ISO
Power supply	220V 50Hz
Product name	ydraulic static cone penetrometer
Application	Soil
