190s/210s Hydraulic Breakers-Concrete Breaker Machine

190s/210s Hydraulic Breakers-Concrete Breaker Machine

    • 190s/210s Hydraulic Breakers-Concrete Breaker Machine
    • 190s/210s Hydraulic Breakers-Concrete Breaker Machine
    • 190s/210s Hydraulic Breakers-Concrete Breaker Machine
    • 190s/210s Hydraulic Breakers-Concrete Breaker Machine
    • 190s/210s Hydraulic Breakers-Concrete Breaker Machine
    • 190s/210s Hydraulic Breakers-Concrete Breaker Machine
  • 190s/210s Hydraulic Breakers-Concrete Breaker Machine

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: exf8200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $3200
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Model: BYB 190S Weight(kg): 3420
    Oil Pressure(kg/cm²): 180-220 Cylinder Volume(L/min): 230-320
    Power Of Impulse(Bpm): 180-200

    Product Description

    Product Description

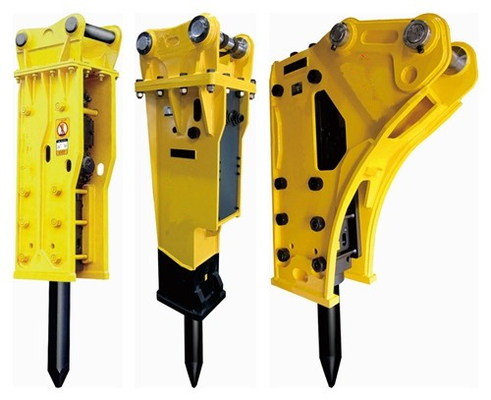

    190S/210S Hydraulic Breakers-concrete breaker machine

    190s/210s Hydraulic Breakers-Concrete Breaker Machine

    Suitable for 55-100T excavator--

    Product Description

    Beiyi hydraulic breaker adopts scientific structural design,selects special high quality steel, assembles world-class production and processing equipment, exquisite heat treatment and grinding technology,strict quality management;Longer service life, more powerful blow.



    Product Advantages

    1. BEIYI using the most advanced crushing technology to ensure the best working efficiency.

    2. BEIYI with the most superior crushing performance, excellent durability is the best gurantee of all-weather operation capability

    3. The innovative low-noise design meets the environmental protection requirements of various countries in the world and is applicable to road construction, house demolition subway and tunnel construction in cities





    190s/210s Hydraulic Breakers-Concrete Breaker Machine

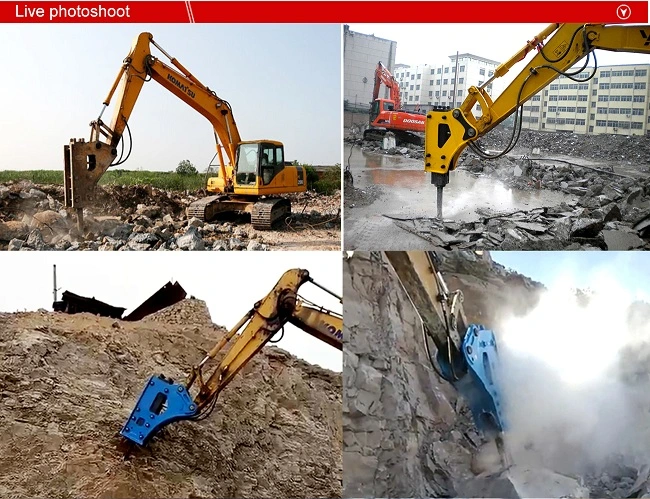

    Application



    1. Mining: Mountain opening, mining, mesh crushing, secondary crushing
    2. Metallurgy: cleaning of ladle and slag, dismantling of furnace body and equipment foundation
    3. Railway: Mountain opening, tunnel excavation, road and bridge demolition, subgrade compaction
    4. Municipal Garden: concrete crushing, water, electricity, gas engineering construction, old city reconstruction
    5. Buildings: demolition of old buildings and crushing of reinforced concrete
    6. Ship: hull descaling and derusting
    7. Others: ice breaking, frozen soil breaking, sand mold vibration


    190s/210s Hydraulic Breakers-Concrete Breaker Machine
    Product Parameters



    Model BYB 190S BYB 210S
    Weight(kg) 5100 6100
    Overall length 3420 3700
    Oil pressure(kg/cm²) 180-220 190-230
    Cylinder volume(L/min) 230-320 360-450
    Power of impulse(Bpm) 180-200 120-230
    Hose diameter(Inch) 1 1/4 1 1/4
    Chisel diameter(Mm) 190 210
    Hydraulic excavator(Ton) 55-65 65-100

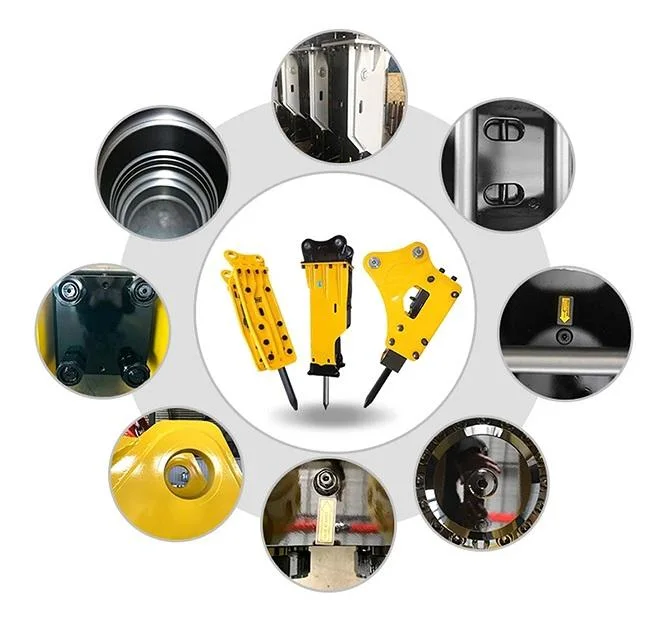

    Product details

    Through Bolt:The front head,cylinder and back head of the hydraulic breaker are mainly fixed by 4 through bolts.
    Control Value:The control value is used in the body to control the return of the piston.
    Accumulator:The accumulator is used to compensate the pressure in the hydraulic circuit and prevent vibration.Only nitrogen can be used,without frequent replenishment.
    Back Head:Inflatable value inside,nitrogen fiushed inside.
    Piston:The kinetic energy of the piston is converted into impact energy and transmitted to the chisel to break the rock.
    Cylinder:There is an oil circuit inside the cylinder that controls the reciprocating movement of the piston.The cylinder is the heart of the breaker.
    Front Head:The front head supports the entire breaker,the thrust ring and thrust bushing to withstand the impact from the chisel head.
    Chisel:Conical,blunt and wedge chisel can be used according to the application.
