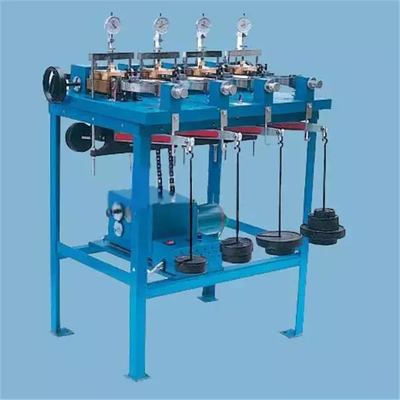

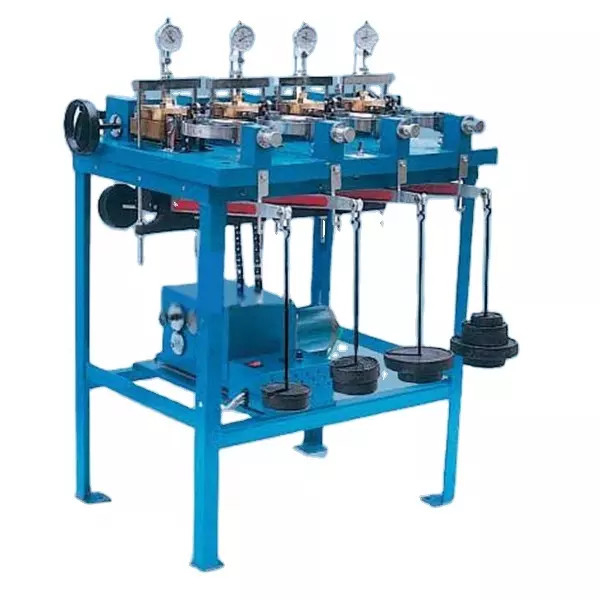

C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test

C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test

    • C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test
    • C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test
  • C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: C011

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Lever Ratio: 1:20 Horizontal Shear Peak Load: 1.2kN
    Weight Load: 100kPa,200kPa,300kPa,400kPa Shear Rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
    Measurement: 1160x900x1160mm(main Frame)

    Product Description
    C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test
    Specification
    C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test

    It is used to determine shear strength of soil, containing Electric and manual transmission function. Under different vertical pressure, inflicting Horizontal shear force, Destruction of the shear stress are obtained. According to the coulomb's law, we can determine the shear strength and deformation parameters of soil, internal friction Angle and cohesive force.

    Automatic collection of iso-strain control direct shear instrument (stepless speed regulation)


    Digital display and other strain-controlled direct shear instruments use electronic digital technology to transmit data, and the geotechnical test data processing and acquisition system software automatically collects, records and stores test data in real time. Compared with previous instruments, it saves the trouble of manual data reading and improves work efficiency.

    The digital display equal strain controlled direct shear instrument is used to determine the shear strength of soil.Usually, a
    specimen is used to apply shear force to shear under different vertical pressures, and the shear stress at failure is obtained, and the resistance is determined according to Coulomb's law. Shear strength coefficient, internal friction angle and cohesion.

    Digital display equal strain control direct shear instrument can be suitable for slow shear, fast shear and repeated shear tests of soil
    C011 Strain Controlled Shear Apparatus Controlled direct shear instrument soil shear stress test
    item
    value
    Warranty
    1 year
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    Zealchon
    Model Number
    C011
    Power
    Electronic
    lever ratio
    1:20
    Horizontal shear peak load
    1.2kN
    weight load
    100kPa,200kPa,300kPa,400kPa
    Shear rate
    5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
    Working voltage
    AC220V
    Measurement
    1160x900x1160mm(main frame)
    specimens
    4
    Product name
    direct shear apparatus
    Standard
    BS.EN.ASTM
