Product Description

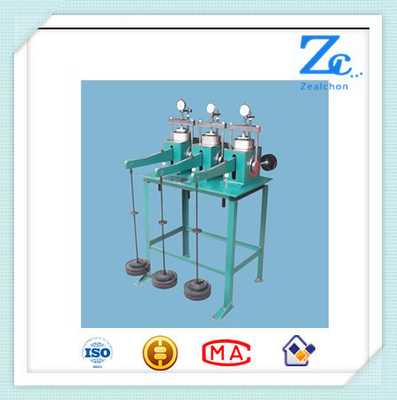

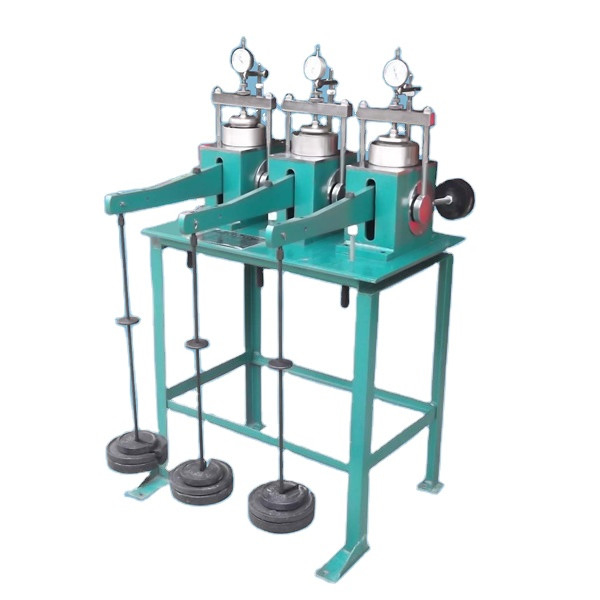

C020 Triplex Lever Consolidation Apparatus Soil Testing Equipment
-This product is used for the compression test of soil. It can test the relationship between deformation and stress of soil or Void ratio and stress or Deformation and time. It can calculate soil Unit of settlement, the compression coefficient, the springback index, compression modulus, the coefficient of consolidation etc.
Measuring project depends on the project need. It can do low pressure test, and can do medium pressure test, more can do high pressure test
-This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form. Three groups of tests can be performed at the same time. Stress points use bearing structure
| Parameters |
Details |
| Sample area |
30cm² 50cm² |
| Lever ratio |
1:12 |
| Vertical load Farmar is loaded |
Farmar loaded 30cm² 12.5,25,50,100,200,300,400,800kpPa Eight levels loading
50cm² 12.5,25,50,100,200,300,400 kPa seven levels loading |
| Vertical deformation |
dialgage 0-10mm precision 0.01mm Three pieces optional |
| Dimensions |
650*500*900mm |
Automatic soil collection triple high-pressure consolidation instrument
Overview
Using electronic digital technology to transmit data, the software of the geotechnical test data processing and acquisition system automatically collects, records and stores test data in real time. Compared with previous instruments, it saves the trouble of manual data reading and improves work efficiency.
The purpose of this experiment is to determine the deformation and the relationship between the pressure or the void ratio and the pressure and the relationship between the deformation and time of the sample under the confinement and axial drainage conditions, and to calculate the soil compression coefficient and index, rebound index, compression modulus, Consolidation coefficient and initial consolidation pressure of undisturbed soil, etc., the measurement items depend on the needs of the project.
This machine is mainly composed of a compression container, pressurizing equipment, weights, etc. It adopts a triple form and can carry out three sets of tests at the same time, and the force point adopts a bearing structure.
Instrument characteristics
1. The special geotechnical test data automatic collection system automatically collects, records and stores the vertical displacement and force value instrument data during the test process.
2. The test process saves labor and time, and improves the test efficiency
3. The leverage ratio is enlarged, reducing the weight and labor intensity
4. Compact structure, reliable and stable performance, easy to use
Technical parameter:
1. Sample area: 30cm2 and 50 cm2
2. Leverage ratio: 24:1 30cm2; 20:1 50 cm2
3. Load form: weight
5. High pressure: 4000kpa (30 cm2) level 11 loading; 2000kpa (50 cm2) level 10 loading
6. Pressure range: 12.5kPa~4000kPa
7. Instrument shape: steel structure
8.Length 820mm*width 820mm*height 1240mm
9. Vertical deformation: 0~12.7mm, precision 0.01mm
