YES-3000D 3000kn compression testing machineCivil Engineering Testing Equipment For Concrete Laboratory Material Testing

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	YES-3000D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Model:	YES-3000D	Max. Load:	3000kN
Testing Space Regulating Way:	Electric Ball Screw Adjust	Control Way:	Manual Control Load Way
Piston Route:	80mm

Product Description

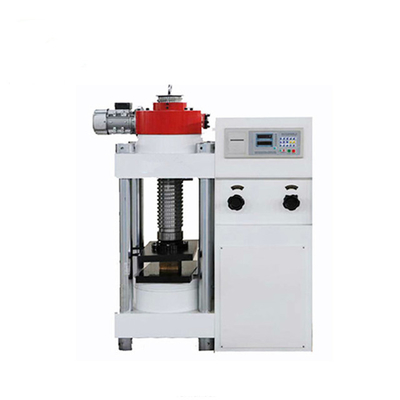

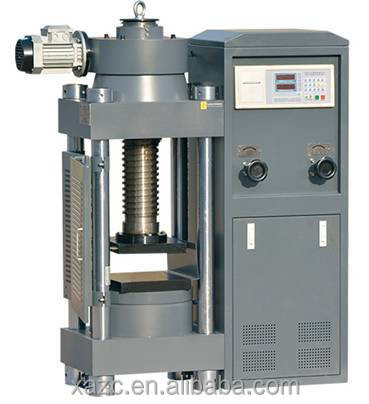

YES-3000D Hydraulic Auto Concrete Compression Strength Testing Machine

1.Application

Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used inmetallurgy, building materials, space flight and aviation, colleges and universitiesR&D institutionlines. The test operation and data processing meets standard requirements.

YES-3000D 3000kn compression testing machineCivil Engineering Testing Equipment For Concrete Laboratory Material Testing

2. Main Specifications

Model	YES-3000D
Max. load	3000kN
Class	1 class
Testing space regulating way	Electric ball screw adjust
Control way	Manual control load way
Oil source control cabinet structure form	One-piece bench oil source control cabinet
Range of test force	4% ~100%FS
Indicating value accuracy	1%
Piston route	80mm
Max piston speed	80mm/min
Range between the working tables	340mm
Pressure plates size	250*250mm(Can be customized)
Display	LCD
Power supply	2.1Kw/AC380V

Service:

1. Warranty 1 year of replacement and return.

1, Providing factory visit and study, technical training

2, 24-hour technical support by e-mail or phone

3, Providing laboratory construction program design guidelines

4, Providing product design and OEM service

Lab Display

YES-3000D 3000kn compression testing machineCivil Engineering Testing Equipment For Concrete Laboratory Material Testing

Trade Shows

YES-3000D 3000kn compression testing machineCivil Engineering Testing Equipment For Concrete Laboratory Material Testing

After-Sales Service

YES-3000D 3000kn compression testing machineCivil Engineering Testing Equipment For Concrete Laboratory Material Testing
