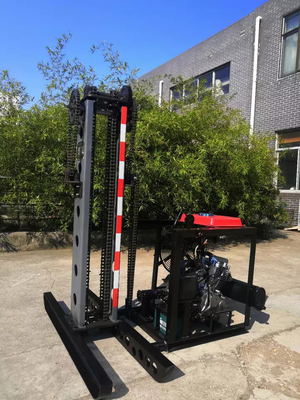

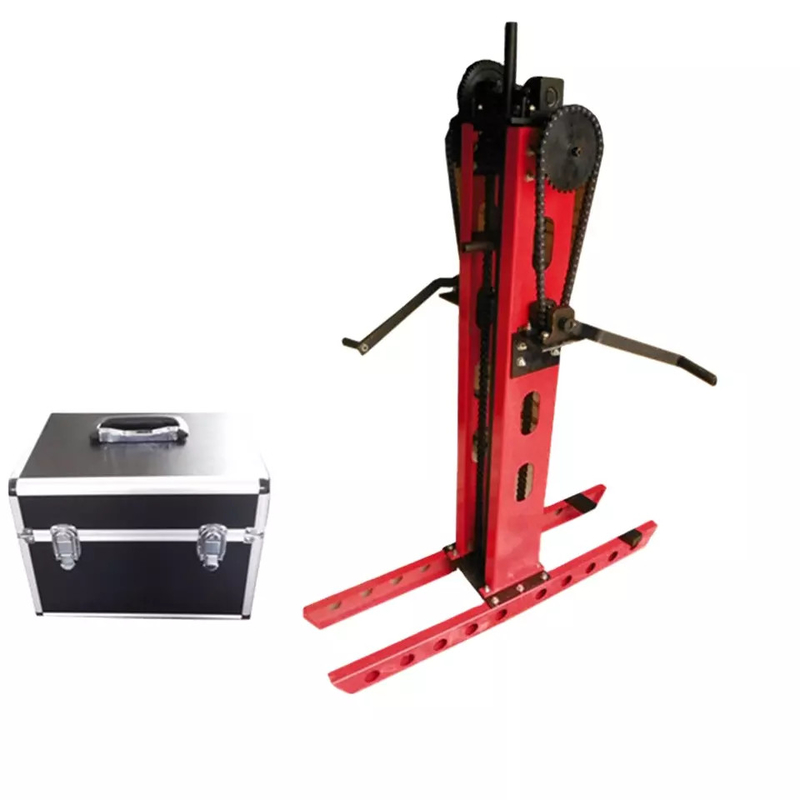

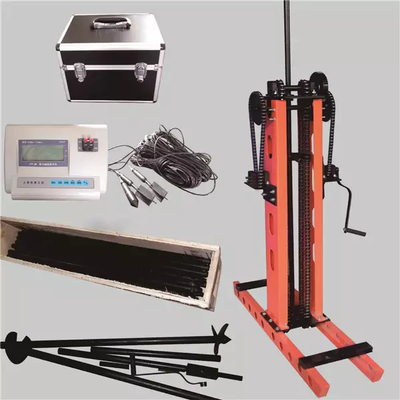

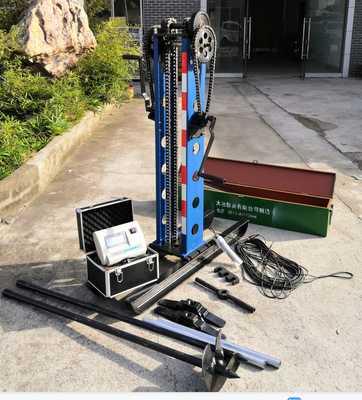

C075 Standard Manual Soil Static Cone Penetrometer CPT 20KN or 30KN

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	C075

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Rated Penetration Force (KN):	30	Pulling Force (KN):	36
Penetration Speed (m/min):	1.2	Lifting Speed (m/min):	3-4

Product Description

Specification

C075 Standard Manual Soil Static Cone Penetrometer CPT 20KN or 30KN
Application:

When we inject the feeler lever with probe into soil Steadily and slowly, we can measure the weight of Penetration resistance,bearing force and side frictional resistance.

It is suitable for clayey soil, Soft soil, loess and sand soil. It can provide data of Engineering propertiesfor Geotechnical andstructure design and construction. It is also suitable for the situ testing of foundation soil in Construction engineering,

municipal, railway, water and electricity engineering.

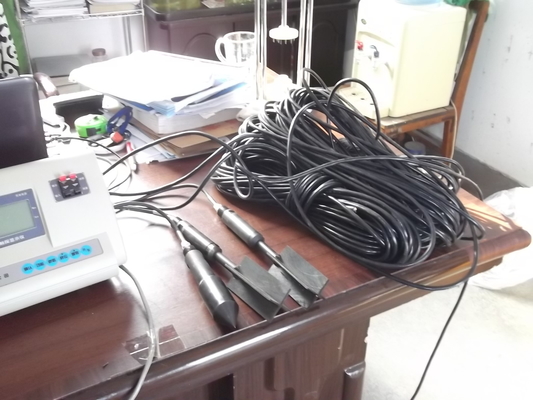

Also Cross shear head , sensor , speed variator is optional for Field vane shear

specification:

1. Rated penetration force (KN): 30

2. Pulling force (KN): 36

3. Penetration speed (m/min): 1.2

4. Lifting speed (m/min): 3-4

5. Power matching: BK-168F single-cylinder gasoline engine, output power 3.3KW

6. Probe diameter mm: 25

7. Probe taper: 60

8. Probe area: 10cm2

9. Length of ground anchor: 1.2m

10. Anchor piece diameter: 180mm

11. Penetration form: automatic clamping and pressing

12. Lifting form: automatic clamping and pulling

13. Data collection method: static probe computer collection, automatic storage

14: Weight: 220 kg (full set)

item	value
Warranty	1 year
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	C075
Power	Electronic
penetration resistance maximum load	20kN -30kN
Penetration depth	20 m, 30 m
Injection speed	0.5-1m/min
The probe cross-sectional area	15cm
Certificate	ISO
Warranty	1 Year
Product name	Soil Static Cone Penetrometer
Application	soil test
Standard	BS.EN.ASTM

Packing & Delivery

Company Profile

00:00

00:28

Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.

FAQ

1. who are we?

We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine

4. why should you buy from us not from other suppliers?

We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;

Accepted Payment Type: T/T,Credit Card,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,Japanese
