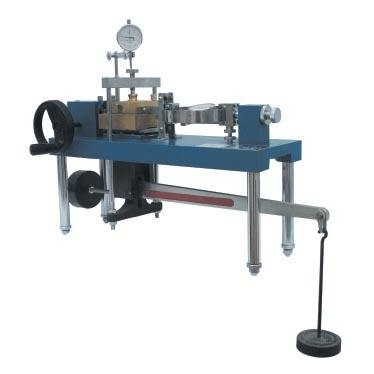

C012-A Soil portable Residual Shear Apparatus

C012-A Soil portable Residual Shear Apparatus

    • C012-A Soil portable Residual Shear Apparatus
    • C012-A Soil portable Residual Shear Apparatus
  • C012-A Soil portable Residual Shear Apparatus

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: C012-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $850
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    The Sample Area: 30cm Height 2cm Lever Ratio: 1:12:00
    Farmar Add Vertical Load: Grading 50,100,200,300,400kPa The Maximum Horizontal Shear Stress: 1.2kN

    Product Description
    C012-A Soil portable Residual Shear Apparatus
    Specification
    C012-A Soil portable Residual Shear Apparatus

    Description

    The light duty strain-controlled shear test apparatus is used to test the soil shearing strength,it can apply 4 different vertical pressure (400Kpa, 300Kpa, 200Kpa, 50Kpa) on specimens, then apply horizontal force to shear, so that to get the broken shearing force, thus can obtain the shearing strength coefficient, internal friction angle and cohesion force according on the Coulomb’s law.

    Technical specifications

    Specimen area: 30cm2 x 2cm (H)
    Lever ratio: 1:20
    Vertical gradation loading: 50KPa, 100KPa, 200KPa, 300KPa, 400KPa(hanger is first grade)
    Horizontal loading: Max.1.2KN
    Size: 850 x 550 x 1100mm (L x W x H)
    Weight: 40Kg

    item
    value
    Warranty
    1 year
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    Zealchon
    Model Number
    C012-A
    Power
    Electronic
    The sample area
    30cm height 2cm
    lever ratio
    1:12:00
    Farmar add vertical load
    grading 50,100,200,300,400kPa
    The maximum horizontal shear stress
    1.2kN
    The vertical deformation
    dialgage 0-10mm precision 0.01mm
    Product name
    Residual Shear Apparatus
    Application
    soil
    Standard
    BS.EN.ASTM
    Certification
    ISO
