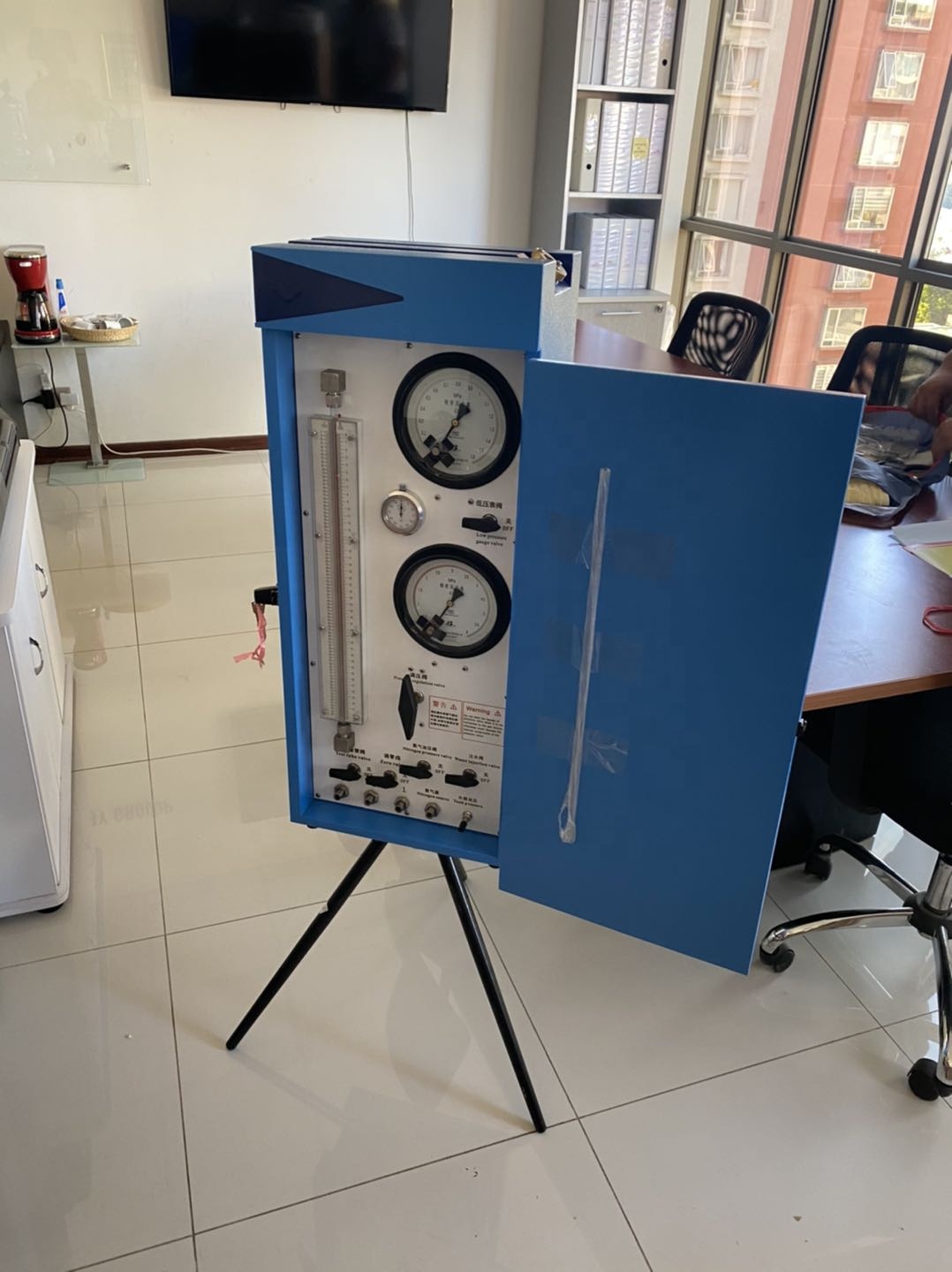

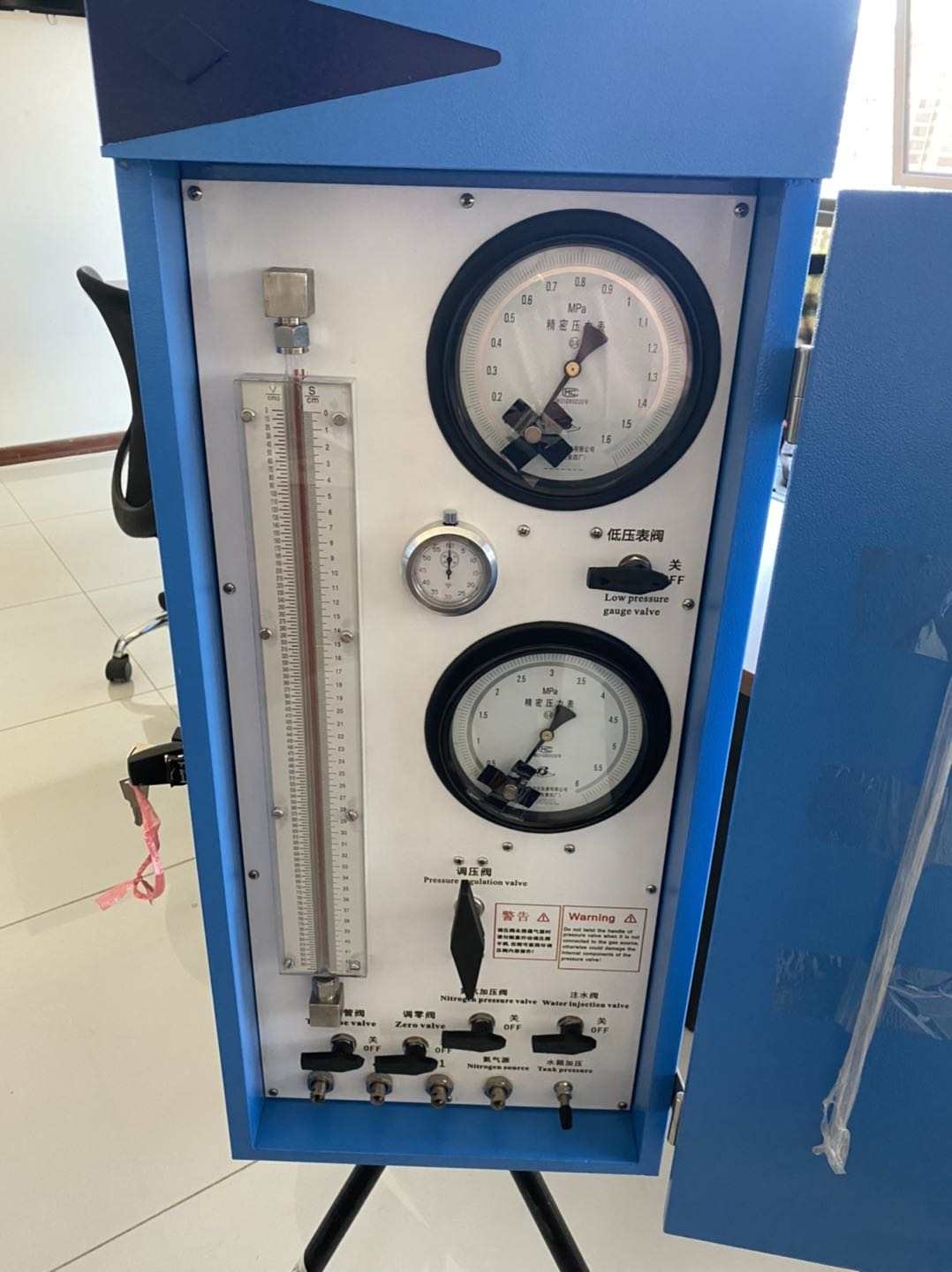

C148 5.5Mpa In-situ pressure testing Pre-boring Soil Menard Pressuremeter

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	C148

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$8400

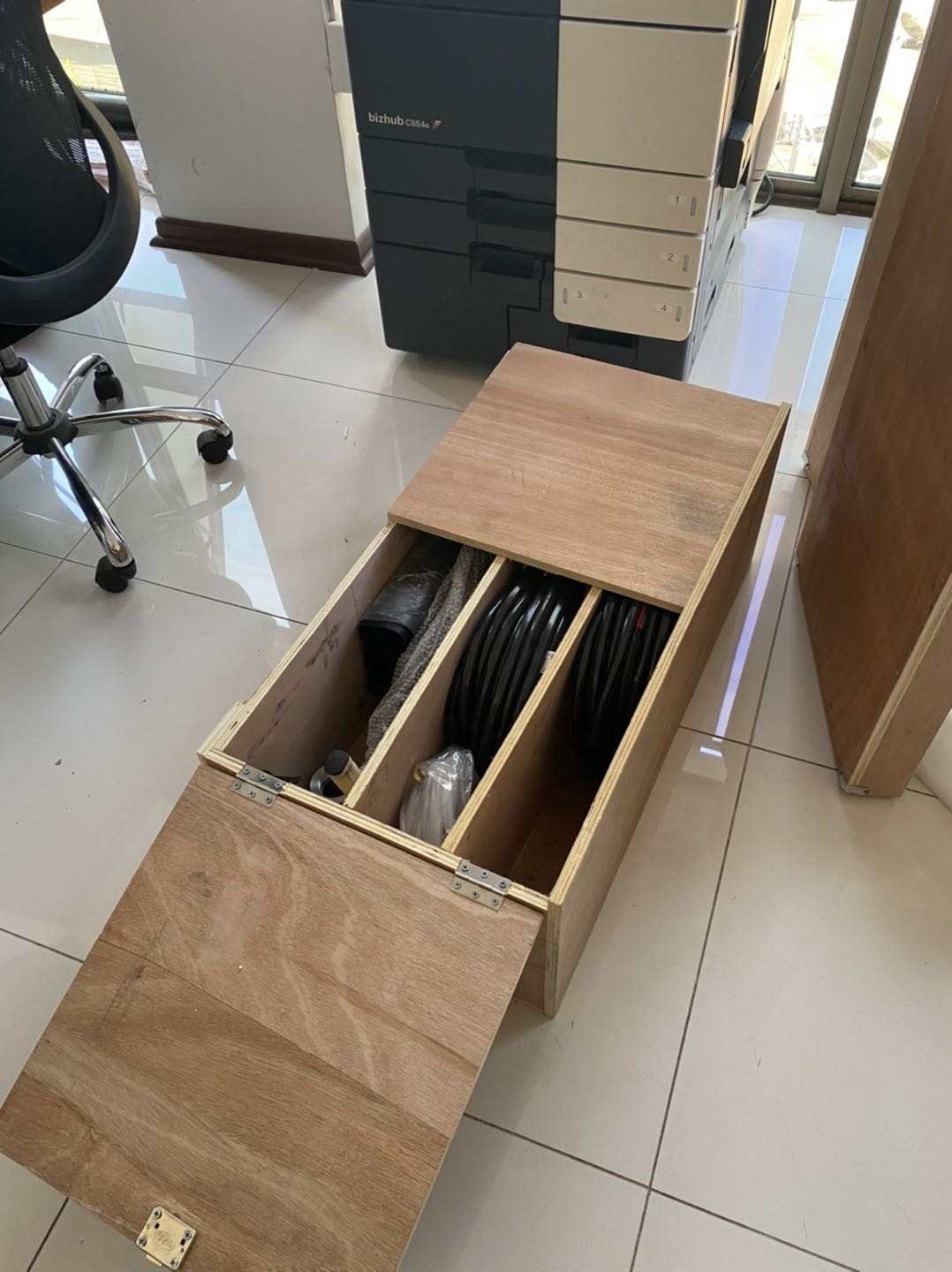

Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Nade Nonimal Dia.:	ø50mm	Dia.with Metal Shield:	ø55mm
Measure Chamber Length:	250mm	Pressuremeter Length:	800mm
Min.reading Of Pressure Gauge:	0.005Mpa	Volume Meter Effective Range:	400mm

Products Description

C148 5.5Mpa In-situ pressure testing Pre-boring Soil Menard Pressuremeter


Test Description:

The pressuremeter test is an in-situ testing method used to achieve a quick measure of the in-situ stress-strain relationship of

the soil. In principle, the pressuremeter test is performed by applying pressure to the sidewalls of a borehole and observing the corresponding deformation.

For the test readings (volume variation based on controlled pressure), a stress-strain curve can be obtained, in the case of plane deformation, which yields:

-the Menard pressuremeter modulus

-the creep pressure

-the Menard limit pressure.

Product Paramenters

Parameter		Model
Pressuremeter	Nade Nonimal dia.	ø50mm
	Dia.with metal shield	ø55mm
	Measure chamber length	250mm
	Pressuremeter length	800mm
precision precision	Min.reading of pressure gauge	0.005Mpa
	Volume meter effective range	400mm
	Comprehensive error	≤±1%
	Measurements	Electrical measurement and visual
others	Max.Pressure	5.5Mpa
	Size	830×360×220mm
	Weight	28kg
	Range	Clay, silt, sand, weathered rock, soft rock strata
