Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO CE |
Model Number: | EXF9630 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $13000 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Working Principle: | Energy Dispersive X-ray Fluorescence | Size(mm):: | 670*400*300 |
---|---|---|---|
Detection Limit:: | 100ppm Best Substance Effect | Precision:: | ±10ppm~0.1% |
Detector:: | Si-Pin145Kev±5 |
EXF9630 Non-destructive quick scan accurate xrf gold precious metal tester
EXF 9630 xrf gold purity testing machine is integrated an industrial computer with industrial motherboard & multi-point hand touch, providing best operation experience.

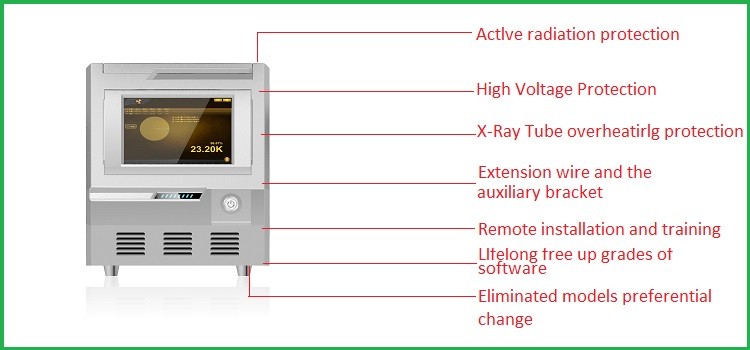

It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti-interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrum to add the accuracy and stability.

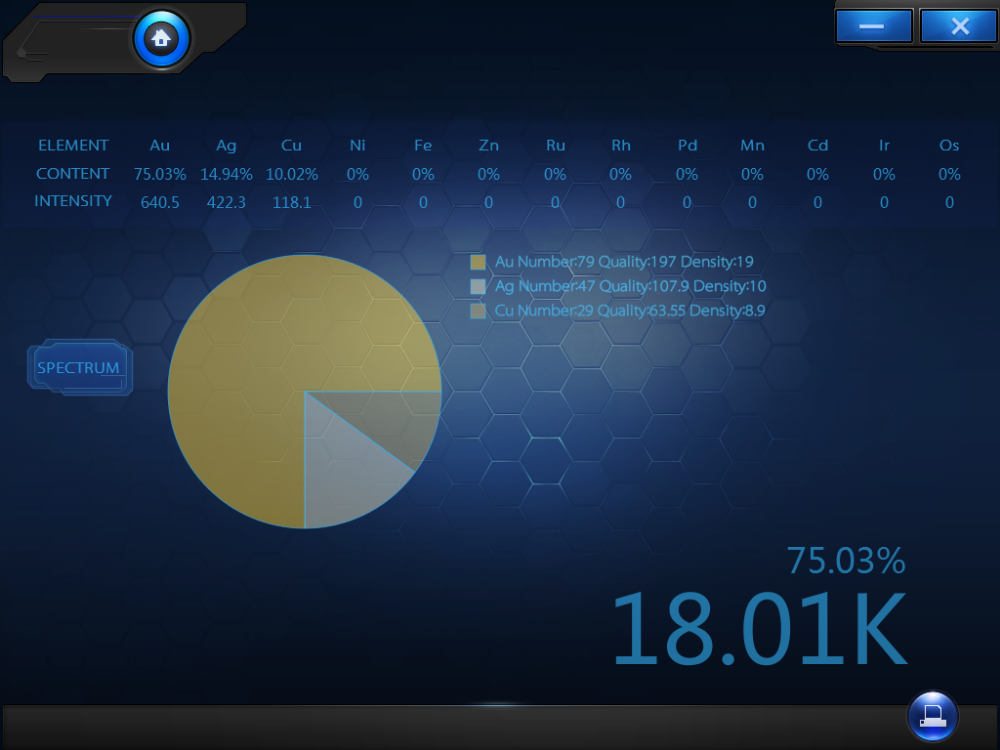

Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.

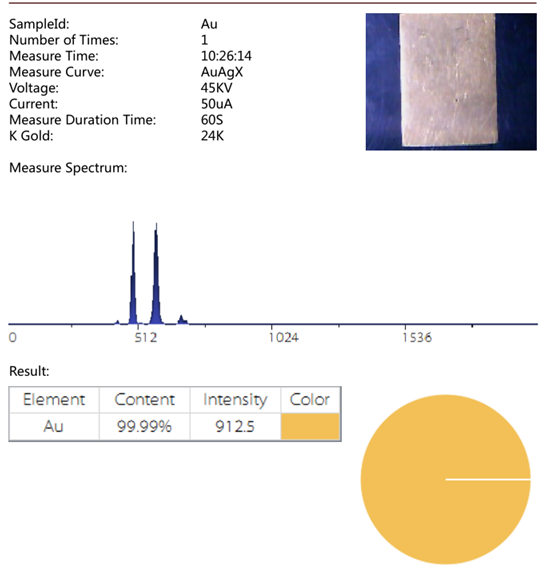

Testing result:
Specifications:
Working Principle: | Energy Dispersive X-ray Fluorescence |
Size(mm): | 670*400*300 |
Detection limit: | 100ppm Best substance effect |
Precision: | ±10ppm~0.1% |
Expanded Uncertainty: | ≤0.19% |
Operating Environment: |
Temperature -11~46℃ Humidity ≤70% |
High Voltage: | 0~50KV/0~1MA |
Detector: | Si-Pin145Kev±5 |
Testable Elements: | Any 20 Elements from whole elements (Na~U) |
Main Structure: | High-strength metal frame and industry plastic shell |
N/G Weight(KG): | 27 / 30 |
Pictures in details:
Service We Can Provide
Warranty 2year of replacement and return.
Providing factory visit and study, technical training.
24-hour technical support by e-mail or phone.
Providing laboratory construction program design guidelines.
Providing product design and OEM service.
Please refer to some questions:
1. So as to check out your equipment, would you provide a return policy of say 90 days, from purchase and receipt date?
Yes, it could be refunable if there is any quality issue concerned, we have the special team who could handle some problems.
2. Where is your manufacturing facility for the XRF analyzers you sell?
The manufactory locates in the south of China, Shenzhen, where you could easily have a factory visiting and have comprehensive understanding of the machine.
3. How will you handle the after service issue?
Since there are the software and hardware about the machine.
Once there is anything problem regarding to the machine, there will be appointed engineer for every client.
When it comes to the specific problems, he will have the remote control and online face-face checking procedure to adjust the software problems, which could be resolved by remote control.
Meanwhile, by the remote checking, he will also know the problem about the hardware, once confirmed the problem, you could send the hardware accessories back to us; we will fix or send a new one for you.
The warranty is one year, within 1 year, there will not be any problems, after one year, we will do the action as said above.
