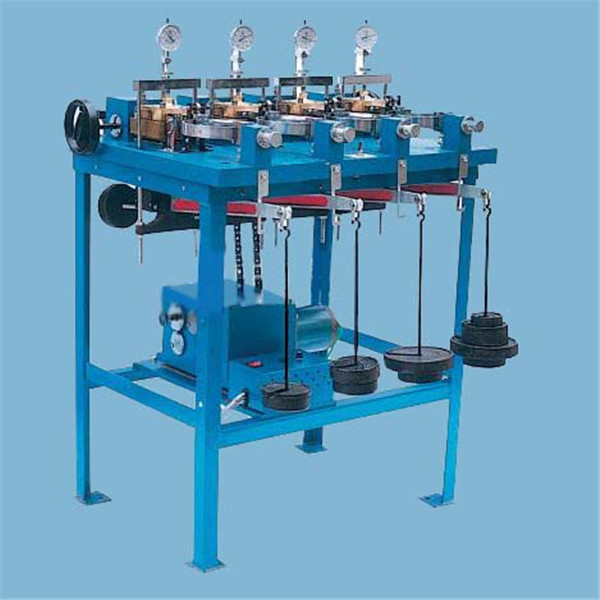

C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus

C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus

    • C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus
    • C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus
    • C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus
  • C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: C010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $3500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Soil Sample Area:: 30cm2 (diameter 6.18cm, Height 2cm) Leverage Ratio: 1:20
    Vertical Loading Classification: 50, 100, 200, 300, 400kpa Digital Dial Indicator: 0-10mm
    Ultimate Horizontal Shear Load: 1.2KN

    Product Description
    C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus
    C010 Digital Electric Tetragenous Soil Direct Shear Test Apparatus
    Specification
    C010 Soil Intelligent Electric Tetragenous Direct Shear Testing Machine

    It is used to determine shear strength of soil, containing Electric and manual transmission function. Under different vertical pressure, inflicting Horizontal shear force, Destruction of the shear stress are obtained. According to the coulomb's law, we can determine the shear strength and deformation parameters of soil, internal friction Angle and cohesive force.

    Instrument characteristics

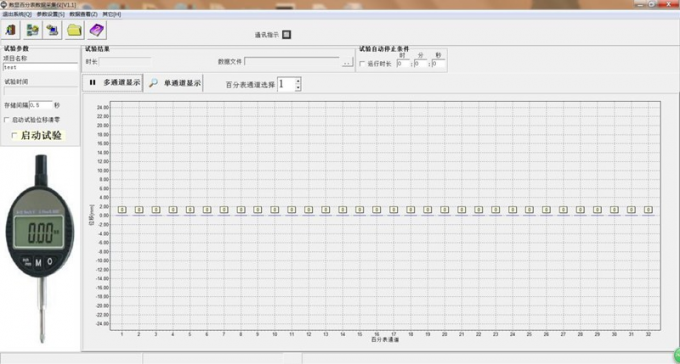

    1. The special geotechnical test data processing and collection system automatically collects, records and stores the vertical displacement and force value instrument data during the test process.
    2. The test process saves labor and time and improves the test efficiency.
    3. The leverage ratio is enlarged, which reduces the weight of the weight and labor intensity.
    4. Compact structure, reliable and stable performance, easy to use.
    5. The instrument has added the cutting box backward limit function, which makes the cutting box automatically stop after it moves back to the specified position, which enhances the protection function.
    6. The LCD screen displays the set cutting speed and cutting deformation.
    7. It has the function of hand shearing, which can not affect the test in the case of power failure.
    3. Main technical parameters
    1. Soil sample area: 30cm2 (diameter 6.18cm, height 2cm)
    2. Leverage ratio: 1:20
    3. Vertical loading classification: 50, 100, 200, 300, 400kpa
    4. Digital dial indicator: 0-10mm
    5. Ultimate horizontal shear load: 1.2KN
    6. Shear rate: 2.4mm/min, 1.2mm/min, 0.8mm/min, 0.4mm/min, less than 0.02mm/min; 5 speeds can also be set arbitrarily.
    7. Each handwheel rotation: 0.2mm
    8. Power supply: 220V±10%, frequency: 50HZ±2HZ; power: 350w
    9. Working environment: the temperature is 20±5℃, the relative humidity is 80%RH, and the environment is free from strong magnetism and strong vibration.
    10. Apparatus dimensions: length 845*width 430*height 1118mm
    item
    value
    Warranty
    1 year
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    zealchon
    Model Number
    C010
    Power
    Electronic
    The sample area
    30cm height 2cm
    power-driven
    shear speed 0.8mm,0.06,0.02mm/min
    vertical deformation
    0-10mm dial indicator optional
    size
    980*580*980mm
    voltage
    220V±10V 50Hz
    Certificate
    ISO
    Warranty
    1 Year
