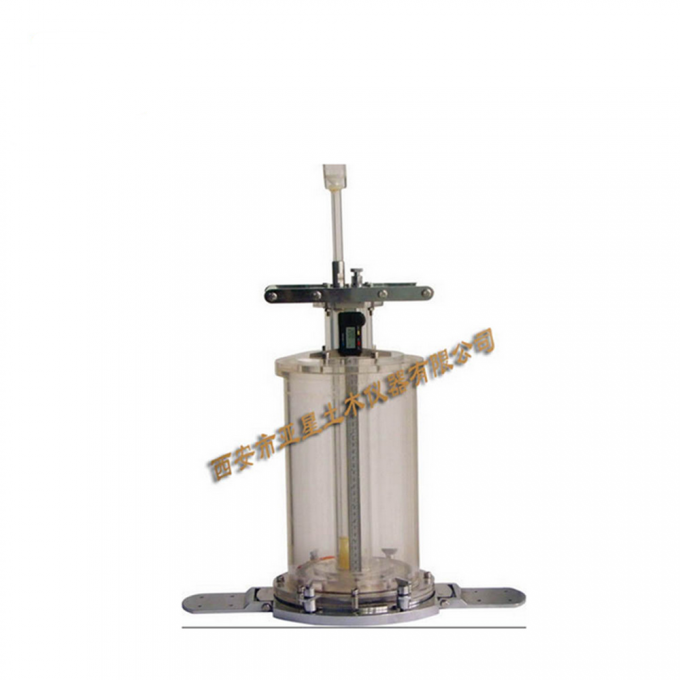

C111 Balloon method Soil Density Tester

C111 Balloon method Soil Density Tester

C111 Balloon method Soil Density Tester

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: C111

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $1000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Cylinder Volume: 5200cm3 Piston Stroke: 280mm
Balloon Pressure: 8KPa Digital Depth Gauge Resolution: 0.01mm
Detection Test Pit Size: 150mm × 200mm

Product Description
C111 Balloon method Soil Density Tester
Specification
C111 Balloon method Soil Density Tester

Application:

This test method can replace sand replacement method and irrigation methods, test speed, high precision and easy operation.

* Uses

Balloon-type volumetric measuring instrument is a determination of soil density test instrument for determining the density of the field maximum particle size of less than 20mm of soil.
Applicable Standard: "The railway engineering soil test procedures" (TB 10102-2004).
* working principle
Balloon-type volume analyzer is based on physics of Boyle (Boyle) Law design; the test, with a certain pressure, pushes the piston to medium (air) to be placed within the cylinder test pit airbag transferred, so that the air bag inflates close to the inner wall of the test pit; a data recording device for displaying measurement, calculation test pit volume.


Technical Parameters:
* Cylinder volume 5200cm3
* Piston stroke 280mm
* Balloon pressure 8KPa
* Digital depth gauge resolution of 0.01mm
* Volume constant piston area × 0.1cm3 / mm
* Detection error ≤1%
* Detection test pit size Φ150mm × 200mm
* Handle operation force ≤200N
* Machine weight 5.2kg
* Dimensions Φ255mm × 627mm
* Instrument composition: balloon-type volumetric measuring instrument is mainly composed of the balloon, cylinder, piston, pneumatic standard, digital depth gauge, pit retaining ring, pedal components.
item
value
Warranty
1 year
Certification
ISO
Customized support
OEM
Place of Origin
China

Shaanxi
Brand Name
Zealchon
Model Number
C111
Power
Electronic
Cylinder volume
5200cm3
Piston stroke
280mm
Balloon pressure
8KPa
Volume constant piston area
0.1cm3/mm
Product name
balloon method Soil Density Tester
Warranty
1 Year
Standard
BS.EN.ASTM
Packing & Delivery
C111 Balloon method Soil Density Tester
Company Profile
C111 Balloon method Soil Density Tester
C111 Balloon method Soil Density Tester
C111 Balloon method Soil Density Tester
Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
