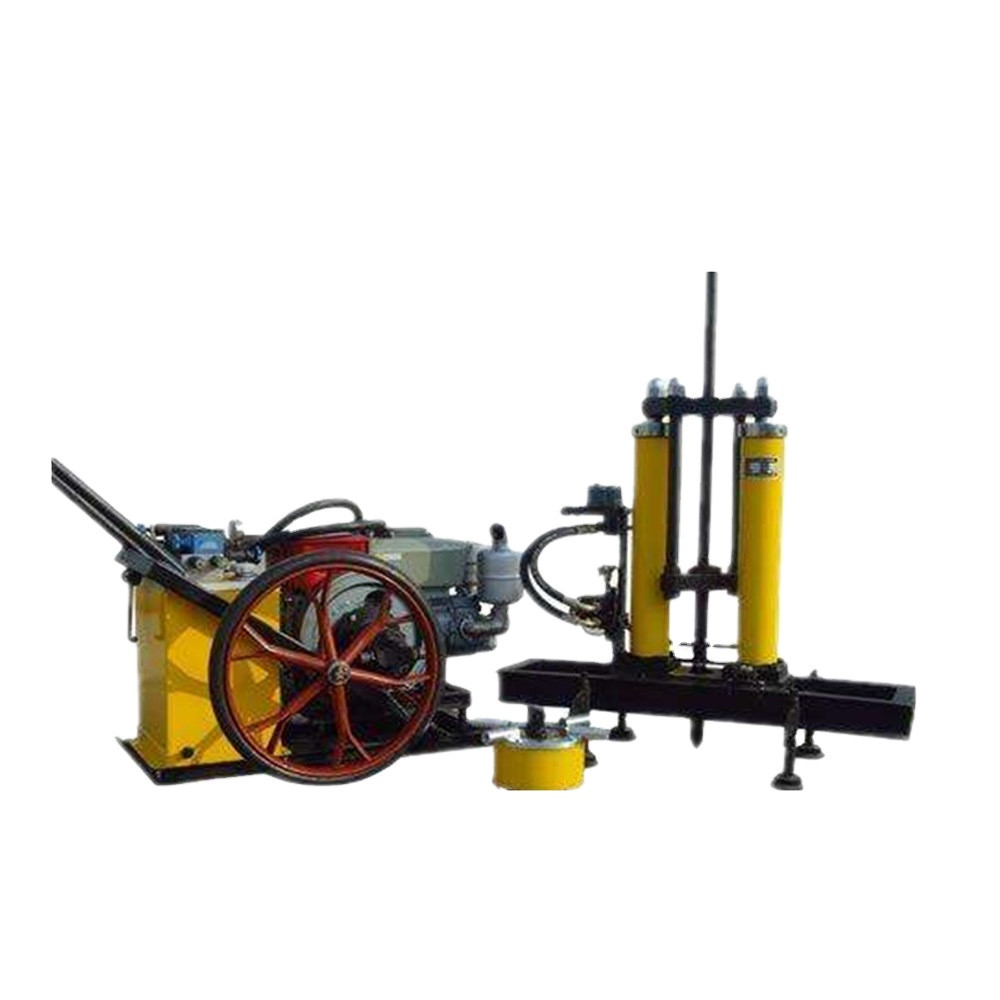

NDJT-10T Portable Double-cylinder hydraulic static penetration tester

NDJT-10T Portable Double-cylinder hydraulic static penetration tester

    • NDJT-10T Portable Double-cylinder hydraulic static penetration tester
    • NDJT-10T Portable Double-cylinder hydraulic static penetration tester
    • NDJT-10T Portable Double-cylinder hydraulic static penetration tester
    • NDJT-10T Portable Double-cylinder hydraulic static penetration tester
    • NDJT-10T Portable Double-cylinder hydraulic static penetration tester
    • NDJT-10T Portable Double-cylinder hydraulic static penetration tester
    • NDJT-10T Portable Double-cylinder hydraulic static penetration tester
  • NDJT-10T Portable Double-cylinder hydraulic static penetration tester

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: NDJT-10T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $12000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, Western Union, T/T
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Rated Penetration Force (KN): 50 Pulling Force (KN): 60
    Penetration Speed (m/min): 1.2 Lifting Speed (m/min): 3-4
    . Power Matching: 185 Single-cylinder Diesel Engine Probe Diameter Mm: 28

    Product Description

    NDJT-10T Portable  Double-cylinder hydraulic static penetration tester





    Portable hydraulic static cone penetrometer for soil cpt testing machines







    Application:



    It is used for construction, water conservancy, electricity, transportation, port construction and design of ground-based universities and scientific research in situ soil testing tools.

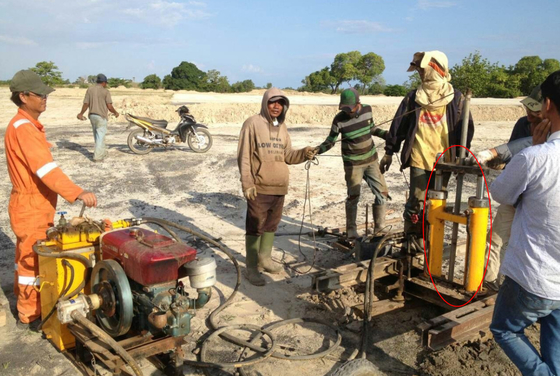

    This cylinder automatic static sounding instrument is for construction, water conservancy, electricity, transportation, port construction and design of universities and scientific research in situ testing tool to the foundation soil. The machine via hydraulic actuators, electrical measuring probe uniform pressed into the ground, so that the recording layer of the land under its depth probe penetration resistance by the instrument. For engineering surveying, exploration lines, mountains, terraced fields, marshes have reconnaissance. Soil suitable soil, old clay, loess, sandy soil, etc. for testing.

    The machine has a small, compact, high power, stable transmission, simple operation.



    1. Structure: bulk, chain drag type, trailer combination, four self-propelled, tracked self-propelled.

    2. Forms of work: Intermittent automatic penetrometer or pulling.

    3. latching lever forms: top-pressure, card rod.

    Static sounding machine engineering geological survey in situ testing of a special device. The machine consists of pumping stations, penetration into the machine, the next anchor windlass and solid institutions, probes, probe and recording instruments and other components. Hydraulic transmission, hydraulic components for the plate connection. Small size, low external leakage, low failure rate and so on. Penetration adopts double cylinder structure, low work intensity. And a differential circuit, the load rises and the differential effectiveness of the oil can greatly improve light load pulling. Chuck manually, using clamping kava with clamping reliable, flexible operating characteristics of. Power for the motor, electrical control centralized distribution box mounted on the pumping station on the overall safety and reliability, with a commutation, power indicator and overload, short circuit protection and other functions, the machine according to user needs, comes with diesel power to no power for construction sites. The machine disintegration strong, light weight monomer, and with a special trolley for a short construction site handling, transporting flexible, on-site installation simple and convenient.



    Specification:



    1. Rated penetration force (KN): 50
    2. Pulling force (KN): 60
    3. Penetration speed (m/min): 1.2
    4. Lifting speed (m/min): 3-4
    5. Power matching: 185 single-cylinder diesel engine
    6. Probe diameter mm: 28
    7. Probe taper: 60
    8. Probe area: 10cm2
    9. Length of ground anchor: 1.2m
    10. Anchor piece diameter: 180mm
    11. Penetration form: automatic clamping and pressing
    12. Lifting form: automatic clamping and pulling
    13. Data collection method: static detection computer collection, automatic data storage
    14: Weight: 420 kg (full set)

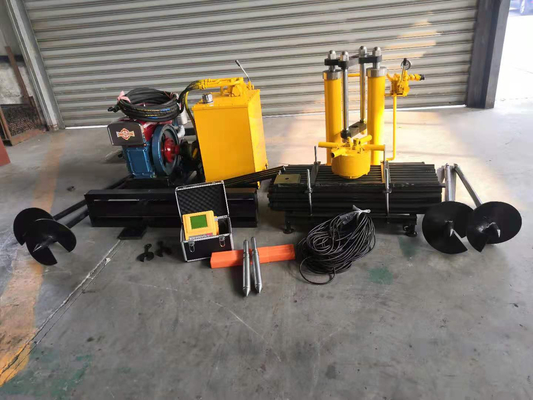

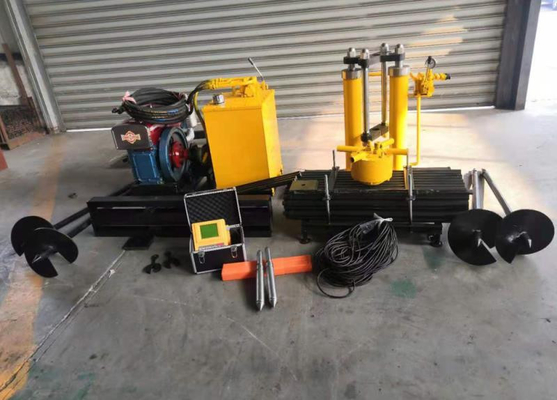

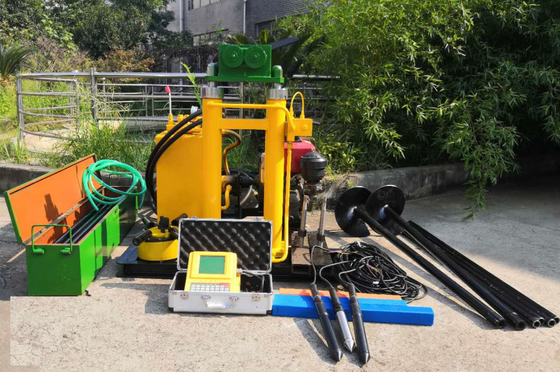

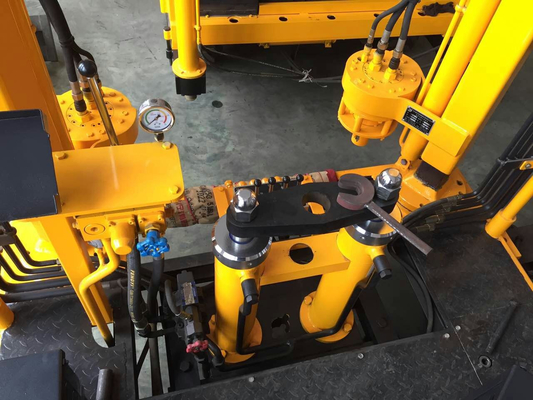

    Detailed Images

    NDJT-10T Portable  Double-cylinder hydraulic static penetration tester NDJT-10T Portable  Double-cylinder hydraulic static penetration tester



    NDJT-10T Portable  Double-cylinder hydraulic static penetration tester

    NDJT-10T Portable  Double-cylinder hydraulic static penetration tester
