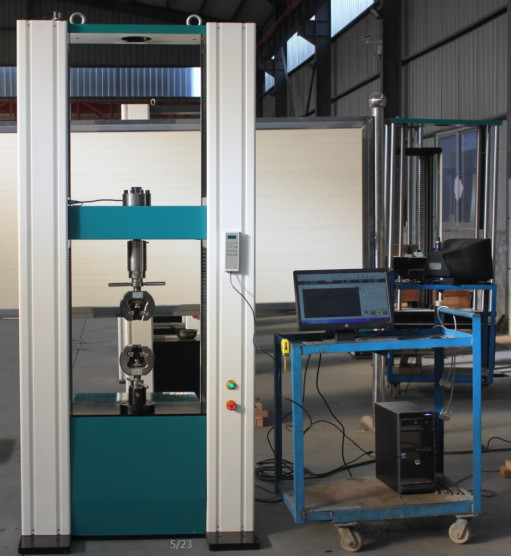

WDW-100E Microcomputer control electronic universal testing machine

WDW-100E Microcomputer control electronic universal testing machine

WDW-100E Microcomputer control electronic universal testing machine

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: WDW-100E

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $12000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Maximum Test Force: 100kN Effective Force Range: 0.2%-100%F.S(200N-100kN)
Resolution: 1/500000, The Whole Process Is Not Divided, And The Resolution Is Unchanged Speed Adjustment Range: 0.001 ~ 500mm / Min (stepless Speed Regulation)
Accuracy: Better Than ±0.5% Of The Indication

WDW-100E microcomputer control electronic universal testing machine



Specification:



1 Test force

Maximum test force: 100kN

Relative error of indication: better than ±0.5% of indication

Effective force range: 0.2%-100%F.S(200N-100kN)

Resolution: ±1/500000, the whole process is not divided, and the resolution is unchanged

2. Test speed

Speed adjustment range: 0.001 ~ 500mm / min (stepless speed regulation)

Accuracy: Better than ±0.5% of the indication

Displacement rate control accuracy: within ±0.5% of the set value when the rate is <0.1mm/min;

When the rate is ≥0.1%mm/min, within ±0.2% of the set value

3 Displacement (moving beam)

Measuring range: 0 ~ 1200mm

Resolution: 0.03μm







Number Name Model Unit
1 Host Single space 1set





 Ball screw High precision, no gap 2sets
Arc tooth timing belt   2pc
Pulley   1set
AC servo motor Full number; Panasonic 1set
server Driver Full number; Panasonic 1set
2 Measurement control system   1set







 Measurement controller Detached 1set
Special software   1set
Hand control box Digital 1set
Load cell 100kN;USA celtron 1pc
3 Fixture





 Wedge clamp Flat jaws: 0-7mm, 7-14mm 1set
Round jaws: Ø9-Ø14mm
Compression test device Φ150mm 1set
Electronic extensometer YUU50/25;Gauge:50mm;Deformation:5mm; 1set
4 computer system   1set







 Computer HP mainstream configuration (19 LCD) 1set
Printer A4HP color inkjet 1set
document Certificate of conformity, instruction manual, packing list, software program installation CD, etc 1set


WDW-100E Microcomputer control electronic universal testing machine


Product Description

Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service





Lab Display

WDW-100E Microcomputer control electronic universal testing machine



WDW-100E Microcomputer control electronic universal testing machine

Trade Shows

WDW-100E Microcomputer control electronic universal testing machine





WDW-100E Microcomputer control electronic universal testing machine

Detailed Images

WDW-100E Microcomputer control electronic universal testing machine

Packing and Shipping

WDW-100E Microcomputer control electronic universal testing machine



WDW-100E Microcomputer control electronic universal testing machine





Contact Us

WDW-100E Microcomputer control electronic universal testing machine





WDW-100E Microcomputer control electronic universal testing machine
