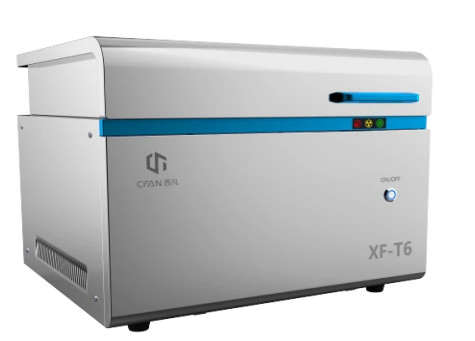

XRF-T6 Desktop Xrf X-ray RoHs heavy metal Testing Machine spectrometer analyzer

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	T6

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$15000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Mearuing Range:	From P-U To U-elements RoHS Regulated Harmful Element Pb / Hg / Cd / Cr / Br + Halogen Alloy: Copper, Iron Alloy, Nickel Alloy, Tin Alloy, Titanium Alloy, Precious Metal Coating: Ag / Sn / Au / Ni—Cu, Cr / Zn / Ni / Ag / —Fe	Sample Type::	Solid (plating), Liquid (component)
Testing Time:	60s-200s(Software Automatic Adjustment)	Camera Positioning System::	5 Million True Pixels HD Positioning System
X Ray Tube:	Model: KEW Place Of Production: Shanghai Window Material: Metallic Beryllium Service Life: More Than 20000 Hours	Detector:	Model: X55 Manufacturer: American Amptek Electric Cooling SI-PIN Detector Resolution: 135ev ± 5 1mil Beryllium Window Thickness

Product Description

Xrf X-ray RoHs heavy metal Testing Machine spectrometer analyzer


Industry applications

Energy Dispersive X-ray Fluorescence Spectrometer, XRF for short, is a physical elemental analysis method, which has special technical advantages such as fast, non-destructive, simultaneous analysis of multiple elements, and low analysis cost. It is used in electronic RoHS, electrical appliances, jewelry, toys, clothing, leather, etc. , Food, building materials, metallurgy, geology and mining, plastics, petroleum, chemical, pharmaceutical and other industries are widely used.

XRF-T6 can correspond to IEC62321 for the detection of hazardous substances in electronic and electrical products, ASTM F963-11 for clothing and footwear, toy En-71, etc.

Parameter

Name	Parameter
Mearuing range :	From P-U to U-elements RoHS regulated harmful element Pb / Hg / Cd / Cr / Br + halogen Alloy: copper, iron alloy, nickel alloy, tin alloy, titanium alloy, precious metal Coating: Ag / Sn / Au / Ni—Cu, Cr / Zn / Ni / Ag / —Fe
Sample type:	Solid (plating), liquid (component)
testing time	60s-200s(Software automatic adjustment)
Camera positioning system:	5 million true pixels HD positioning system
X ray tube	Model: KEW Place of production: Shanghai Window material: metallic beryllium Service life: more than 20000 hours
Detector	Model: X55 Manufacturer: American Amptek Electric cooling SI-PIN detector Resolution: 135ev ± 5 1mil beryllium window thickness
High voltage power supply	Model: X3513 Manufacturer: Xianyang Westman 0-50kev, 0-2mA maximum 50W
High voltage protection measures	Over-voltage protection, self-recovery
Integrated Industrial Computer: (Computer All-in-One)	2G memory, 1.6G dual-core CPU Operating system: Genuine Windows7 (no external computer required)
Working temperature:	Temperature: 15-30 ℃; Humidity: ≤75% (non-condensing)
Input power	AC 220V±15%,50Hz
Instrument size	450(L)×410(W)×400(H)
Test sample cavity size	350(L)×300(W)×100(H)
Radiation Protection Standard	Much higher than the national standard GB18871-2002 GBZ115-2002
