50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine

50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine

    • 50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine
    • 50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine
    • 50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine
  • 50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: WYSB-50KN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $12800
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Engine: Single Cylinder 180 Diesel Engine Horizontal Four Stroke Water Cooling Rated Power - Speed: 5.67KW-2600r / Min
    CPT Hydraulic Cylinder Device: Rated Penetration Force 50KN Rated Pull Force 70KN Stroke: 570mm
    Weight: 180 Kg (without Accessories)

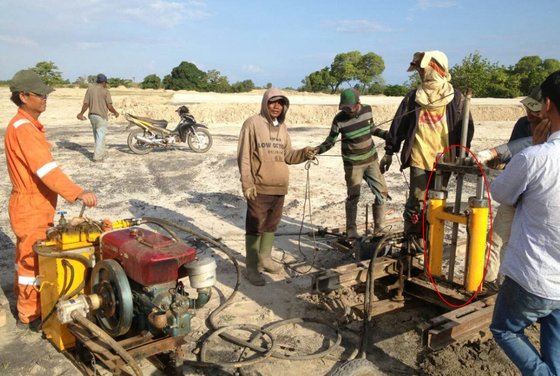

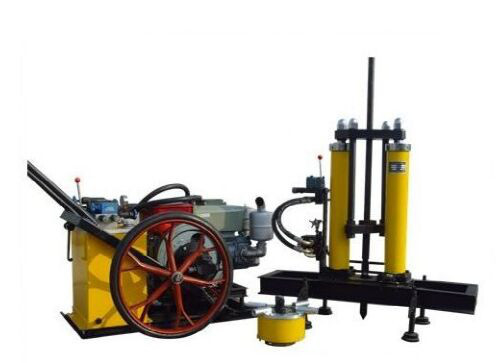

    WYSB-50 double cylinder light hydraulic static touch machine is a very economical and ideal CPT test equipment. Independent hydraulic power unit and hydraulic cylinder device, with high pressure hose and hydraulic quick connector flexible connection. Lightweight size is easy to carry, can be almost any other large equipment can not reach the place to survey, especially for the hole in the hole hole. It can also be easily installed on a wide range of new or existing platforms such as transport cars, crawler chassis, trolleys, barges and so on.

    The use of high-end quality of the hydraulic components and other components, the effective protection of the equipment stable and reliable performance. The use of anti-high oil temperature design, effective protection in high temperature weather environment equipment life and efficiency.

    The accessories can be extended for in-situ test tests such as CPTU and VCT.



    The main technical parameters:



    Engine: single cylinder 180 diesel engine horizontal four stroke water cooling

    Rated power - speed: 5.67KW-2600r / min

    CPT hydraulic cylinder device: rated penetration force 50KN rated pull force 70KN

    Stroke 570mm can quickly rise

    Card Strap Type: Mechanical Strap Automatic Clamp or Pad Insertion

    Form of transport: special trolley

    Weight: 180 kg (without accessories)

    Under the anchor form: hydraulic under the anchor or artificial anchor

    Ground anchor form: single leaf or multi-leaf anchor anchor diameter (mm): 200 ~ 250

    Maximum working environment Permissible temperature: 45 ° C Minimum ambient temperature: -25 ° C °

    Supporting probe: 10cm2, single and double bridge static probe, measuring cross-plate probe, pore water pressure probe or European and American brand multi-function probe.

    Measuring instruments: static data collection or automatic collection of European and American brands

    Probe rod specifications (mm): the overall high-strength non-joint probe Φ28 ~ Φ32 (optional) or supporting European and American brands



    50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine



    50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine



    50KN Hydraulic static cone penetrometer for soil and Dual Hydraulic Ram CPT Machine
