E014 Concrete Anchor Pullout Test Apparatus 50 Tons Concrete Anchor Tensiometer

E014 Concrete Anchor Pullout Test Apparatus 50 Tons Concrete Anchor Tensiometer

    • E014 Concrete Anchor Pullout Test Apparatus 50 Tons Concrete Anchor Tensiometer
    • E014 Concrete Anchor Pullout Test Apparatus 50 Tons Concrete Anchor Tensiometer
  • E014 Concrete Anchor Pullout Test Apparatus 50 Tons Concrete Anchor Tensiometer

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: E014

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Rated Weight: 15t Minimum Hieght: 130mm
    Lifting Hegiht: 35mm Working Pressure(Mpa): 47.5
    Handle Operation Force(N): 390

    Product Description

    E014 Concrete Anchor Pullout Test Apparatus 50 Tons Concrete Anchor Tensiometer





    E014 Concrete Anchor Pullout Test Apparatus 50 Tons Concrete Anchor Tensiometer

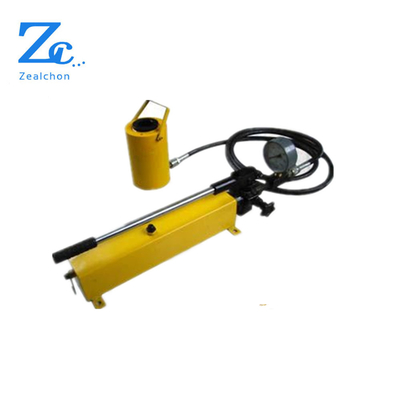

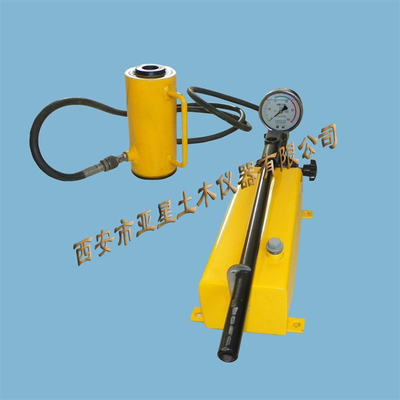

    Concrete Anchor Tensiometer used to detect a variety of bolt, steel and other anchor anchoring force. By a manual pump, hollow jack,pressure gauge with quick coupling high-pressure tubing, anchor and other components. Hollow jack can use any angle in space, but also vertical to horizontal, inclined like. Can automatically return the piston rod can be drawn ¢ 16 ~ 32mm diameter screw different test between the screw and the degree of combination of a solid foundation, it is a simple scientific tensile testing tools.



    Specification:



    Pressure gauge: 0 ~ 60MPa



    * Jaw (applicable to 16 ~ 20mm screw)



    * Jaw (applicable to 18 ~ 26mm screw)



    * Jaw (applicable to 24 ~ 32mm screw)



    Model Rated Minimum Lifting Working Handle Lifting Hollow
      weight(t) height(mm) height(mm) Pressure(Mpa) operation force(N) process(mm/time) inner diameter(mm)
    YML-150B 15 130 35 47.5 390 1 30
    YML-200B 20 130 35 41.28 500 0.65 32
    YML-300B 30 130 35 62 600 0.65 32
    YML-500B 50 160 40 37.2 290 0.23 34
