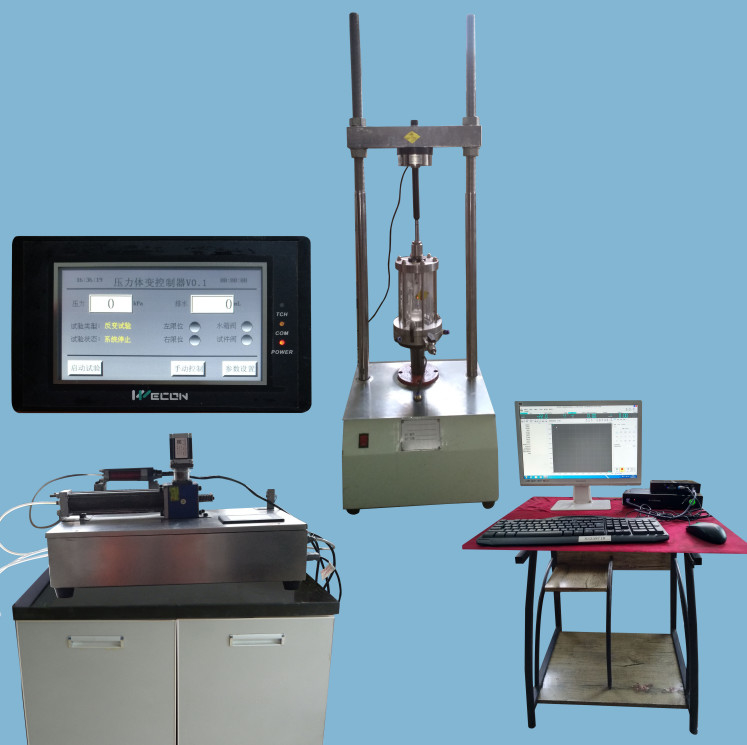

2021 Computer Control Full Automatic soil Triaxial test Machine
Description
It is a method of the determination of shear strength of kinds of soils. Usually with 3-4 cylindrical specimens, under different ambient pressure (i.e., a small primary stress sigma 3), axial pressure
is inflicted respectively. Shear strength parameters are obtained according to Mohr coulomb theory.
| Parameters |
Details |
| Voltage |
220V±5V 50Hz |
| Power |
0.75kW |
| Axial compressive force |
0-10KN 0-30KN 0-60KN 0-100KNoptional |
| Axial deformation |
0-30mm±0.01mm |
| Rate of shear |
0.001mm-10mm/min continuously viable |
| Specimen size |
¢39mm ¢63mm ¢100mm Confining pressure cylinder Optional |
| Pore pressure |
0-2MPa±1kPa,Can be modulated |
| Confining pressure back pressure |
0-2MPa±1kPa, volume change0-100ml±0.1ml |
| Work environment |
10℃-40℃,Relative humidity is less than 85%,Performance guarantee
0℃-45℃,Relative humidity is less than 85%,Performance guarantee |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
