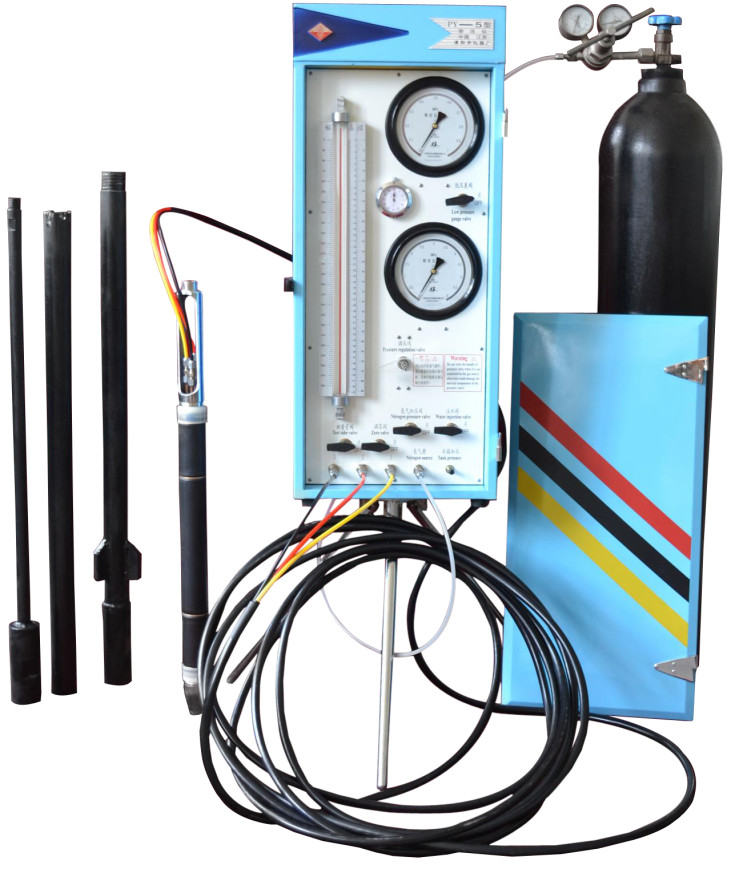

C148 Civil engineering Soil In-situ Menard Field Pressuremeter for lab testing
Test Description:
The pressuremeter test is an in-situ testing method used to achieve a quick measure of the in-situ stress-strain relationship of the soil. In principle, the pressuremeter test is performed by applying pressure to the sidewalls of a borehole and observing the corresponding deformation.
For the test readings (volume variation based on controlled pressure), a stress-strain curve can be obtained, in the case of plane deformation, which yields:
-the Menard pressuremeter modulus
-the creep pressure
-the Menard limit pressure
| Item |
Parameter |
Model |
| PY-3 |
PY-4 |
PY-5 |
| 1 |
Pressuremeter |
Nade Nonimal dia. |
ø50mm |
| Dia.with metal shield |
ø55mm |
|
Measure
chamber length
|
250mm |
|
Pressuremeter
length
|
800mm |
| 2 |
Measuring
precision
|
Min.reading of
pressure gauge
|
0.005Mpa |
|
Volume meter
effective range
|
400mm |
|
Comprehensive
error
|
≤±1% |
| Measurements |
Electrical measurement and visual |
| 3 |
Others |
Max.Pressure |
2.5Mpa |
4.0Mpa |
5.5Mpa |
| Size |
830×360×220mm |
| Weight |
28kg |
| Range |
Clay, silt and
other formations
|
Hard clay, silt, sand
and other formations
|
Clay, silt, sand, weathered rock,
soft rock strata
|
