C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

    • C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment
    • C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment
    • C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment
  • C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: C010-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $15000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Soil Sample Area: 30cm2 Soil Sample Height: 20cm
    Leverage Ratio: 1:10 Maximum Horizontal Displacement: 8cm
    Maximum Horizontal Shear Stress: 1000kPa

    Product Description

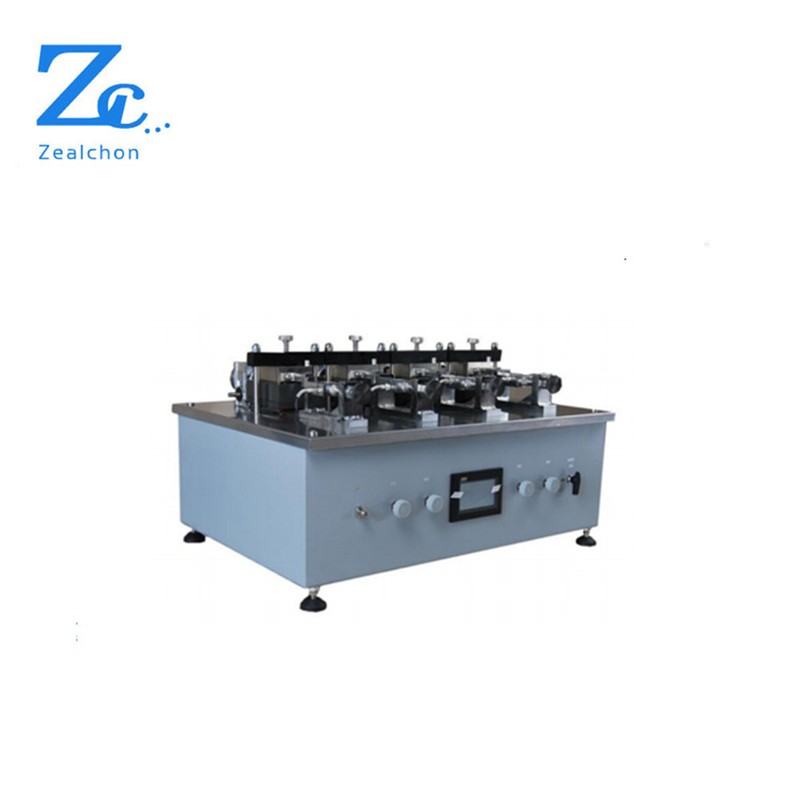

    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment





    C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment



    It is used to determine shear strength of soil, containing Electric and manual transmission function. Under different vertical pressure, inflicting Horizontal shear force, Destruction of the shear stress are obtained. According to the coulomb's law, we can determine the shear strength and deformation parameters of soil, internal friction Angle and cohesive force.







    Automatic collection of iso-strain control direct shear instrument (stepless speed regulation)





    Digital display and other strain-controlled direct shear instruments use electronic digital technology to transmit data, and the geotechnical test data processing and acquisition system software automatically collects, records and stores test data in real time. Compared with previous instruments, it saves the trouble of manual data reading and improves work efficiency.


    The digital display equal strain controlled direct shear instrument is used to determine the shear strength of soil.Usually, a specimen is used to apply shear force to shear under different vertical pressures, and the shear stress at failure is obtained, and the resistance is determined according to Coulomb's law. Shear strength coefficient, internal friction angle and cohesion.


    Digital display equal strain control direct shear instrument can be suitable for slow shear, fast shear and repeated shear tests of soil





    Technical Parameters:
    1. Soil sample area: 30cm2
    2. Soil sample height: 20cm
    3. Leverage ratio: 1:10
    4. Maximum horizontal displacement: 8cm *
    5. Maximum horizontal shear stress: 1000kPa
    6. Maximum vertical load: 5.0KN *
    7. Shear rate: 0.001-8mm/min, infinitely variable speed *
    8. The vertical loading adopts pneumatic loading method. *
    9. The instrument is equipped with an advanced touch operation screen, which can be used for parameter setting and test operations through the touch screen of the host. *
    10. Equipped with automatic data acquisition, control, analysis and processing software, the entire test can be controlled through computer software, and test results and reports can be output.





    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

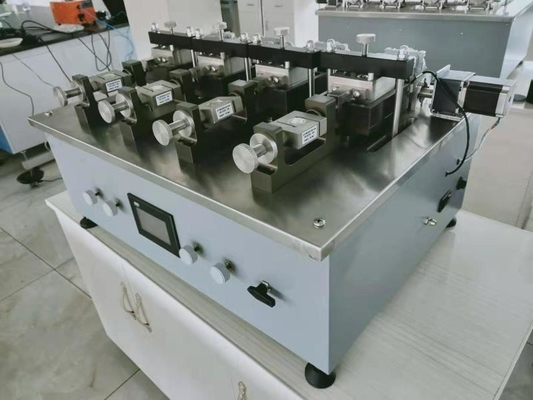

    Detailed Images

    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing EquipmentC010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

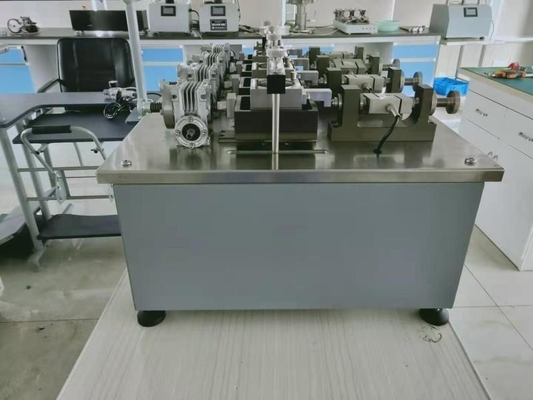

    Lab Display

    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment



    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

    Trade Shows

    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment





    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

    Packing and Shipping

    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment



    C010-A Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment





    After-Sales Service

    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment



    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment

    Certifications

    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment





    C010-A  Automatic computer control direct shear apparatus for shearing strength for soil Lab Testing Equipment
