Hydraulic static cone penetrometer for soil cpt testing machines
Application:
It is used for construction, water conservancy, electricity, transportation, port construction and design of ground-based universities and scientific research in situ soil testing tools.

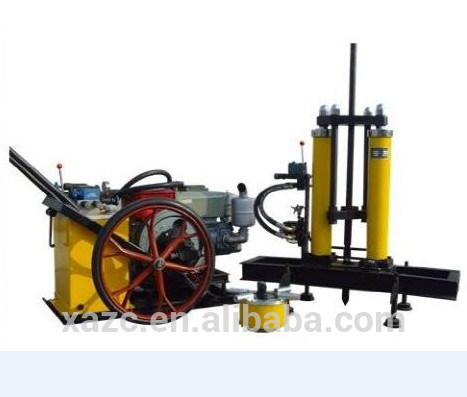

This cylinder automatic static sounding instrument is for construction, water conservancy, electricity, transportation, port construction and design of universities and scientific research in situ testing tool to the foundation soil. The machine via hydraulic actuators, electrical measuring probe uniform pressed into the ground, so that the recording layer of the land under its depth probe penetration resistance by the instrument. For engineering surveying, exploration lines, mountains, terraced fields, marshes have reconnaissance. Soil suitable soil, old clay, loess, sandy soil, etc. for testing.
The machine has a small, compact, high power, stable transmission, simple operation.
1. Structure: bulk, chain drag type, trailer combination, four self-propelled, tracked self-propelled.
2. Forms of work: Intermittent automatic penetrometer or pulling.
3. latching lever forms: top-pressure, card rod.

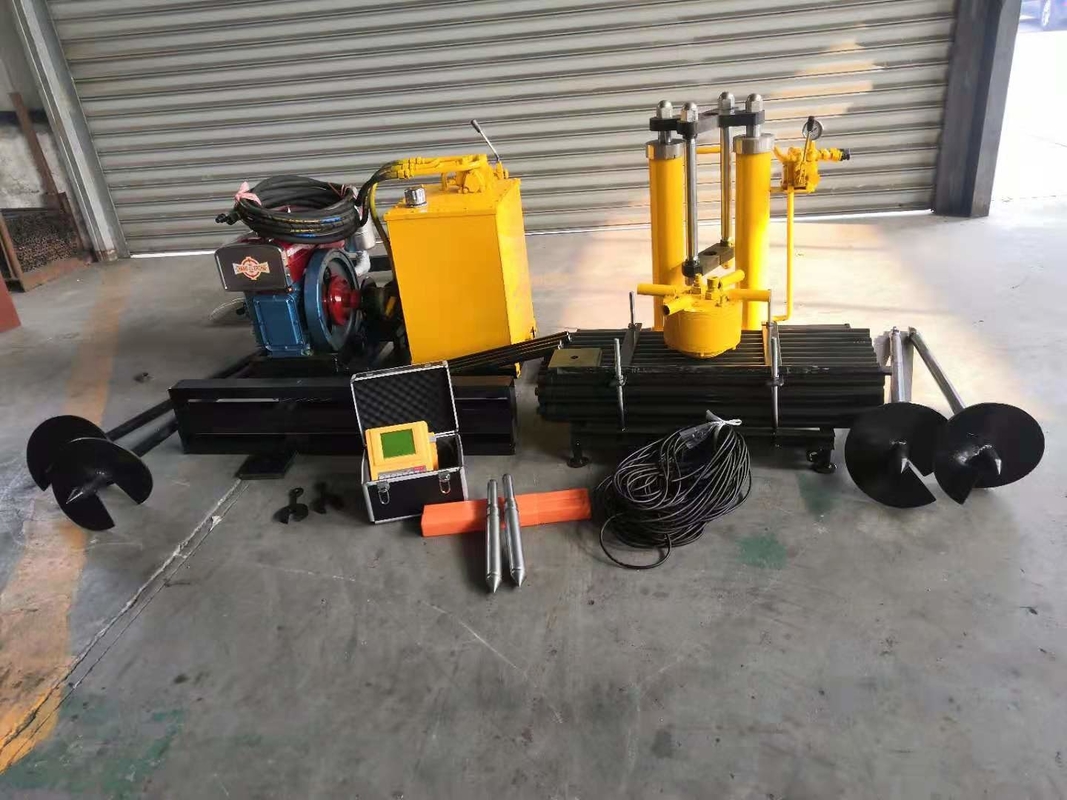

Static sounding machine engineering geological survey in situ testing of a special device. The machine consists of pumping stations, penetration into the machine, the next anchor windlass and solid institutions, probes, probe and recording instruments and other components. Hydraulic transmission, hydraulic components for the plate connection. Small size, low external leakage, low failure rate and so on. Penetration adopts double cylinder structure, low work intensity. And a differential circuit, the load rises and the differential effectiveness of the oil can greatly improve light load pulling. Chuck manually, using clamping kava with clamping reliable, flexible operating characteristics of. Power for the motor, electrical control centralized distribution box mounted on the pumping station on the overall safety and reliability, with a commutation, power indicator and overload, short circuit protection and other functions, the machine according to user needs, comes with diesel power to no power for construction sites. The machine disintegration strong, light weight monomer, and with a special trolley for a short construction site handling, transporting flexible, on-site installation simple and convenient.
Specification:
Hydrostatic Exploration Machine: 2Y-20T
Rated penetration force: 200KN
Pull force:240KN
Penetration Rate: 1.2m/min
Pulling speed: 3-4m/min
Diameter piston rod:Φ36
Weight:: 500kg
Cylinder diameter: Φ110
Hydraulic oil specifications:68#
Power matching:195 Diesel
Power: 18p
