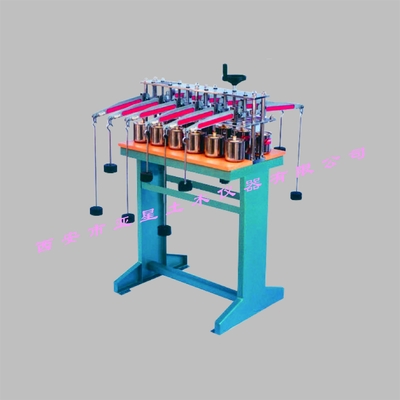

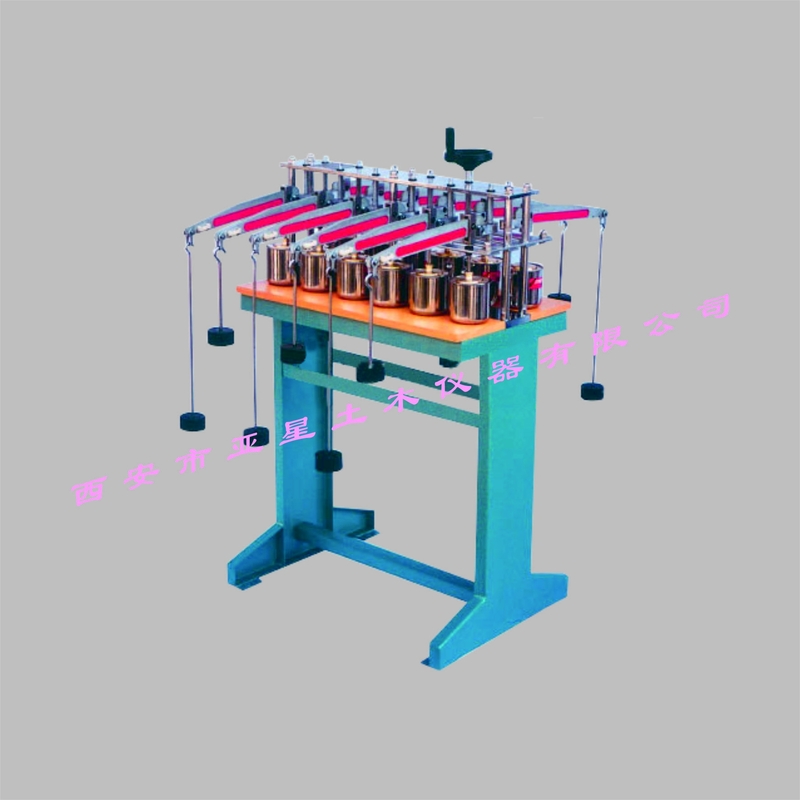

C015 Pneumatic Consolidation Direct Shear Preloading Apparatus ZYY-36
This instrument is a special pressure instrument that applies vertical pressure to the soil sample to stabilize the drainage and consolidation of the soil sample to provide samples for the consolidation rapid shear test.
Its characteristics: each container can be used for three soil samples, high utilization rate, very small footprint, unique shape; pneumatic pressure and constant pressure save manual loading and unloading of weights for leveling.
Technical parameter
1. Sample size: 61.8×20mm; 79.8×20mm
2. Limit number load: 1.2kN
3. Ultimate pressure: 1600kPa
4. Load form: servo air pressure, adjust the required pressure according to the sample area
5. Pressure rating: 50, 100, 200, 300, 400, 600, 800, 1200, 1600 (kPa)
6. Soil sample container: 36 samples can be made at the same time; 12 or 24 samples can also be separated.
7. Standard configuration of the instrument: 12 samples can be made at the same time.
