C020 Triple Front Loading oedometer consolidation test

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	C020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

The Sample Area:	30cm² /50 Cm²	Lever Ratio:	24:1 30cm² 20:1 50 Cm²
Loading Form:	Weight	Maximum Pressure:	4000kpa (30 Cm²) 11 Loading 2000kpa (50 Cm²) 10loading

Product Description

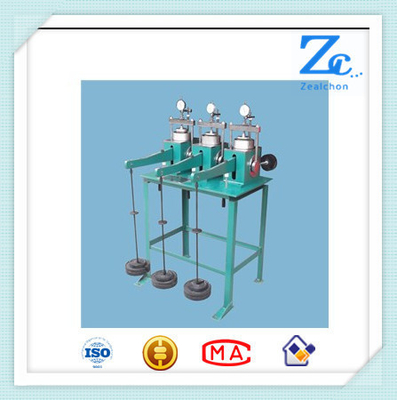

C020 Triple Front Loading oedometer consolidation test

Application:

This product is used for the compression test of soil. It can test the relationship between deformation and stress of soil or Void ratio and stress or Deformation and time. It can calculate soil Unit of settlement, the compression coefficient, the springback index, compression modulus, the coefficient of consolidation etc.
Measuring project depends on the project need. It can do low pressure test, and can do medium pressure test, more can do high pressure test

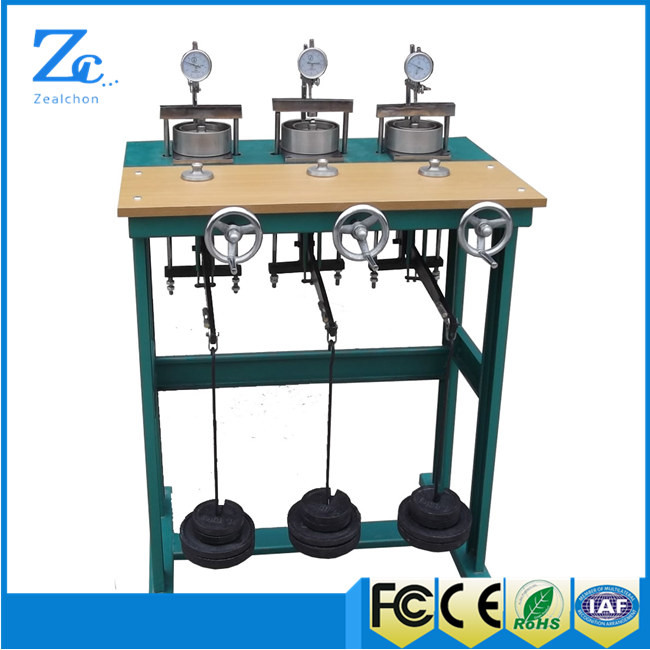

This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form. Three groups of tests can be performed at the same time. Stress points use bearing structure

Specification:

parameters	details
The sample area	30cm² /50 cm²
lever ratio	24:1 30cm² 20:1 50 cm²
Loading form	weight
maximum pressure	4000kpa (30 cm²) 11 loading 2000kpa (50 cm²) 10loading
pressure range	12.5kpa~4000kpa
Dimensions	steel structure L820mmW820mmH1240mm
