C002 Soil Strain Controlled bench triaxial compression test

C002 Soil Strain Controlled bench triaxial compression test

    • C002 Soil Strain Controlled bench triaxial compression test
    • C002 Soil Strain Controlled bench triaxial compression test
  • C002 Soil Strain Controlled bench triaxial compression test

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: c002

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $12800
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Specimen: 39.1mm X 80mm Capacity: 10KN Maximum 10KN
    Strain Rate: 0.016-1.6mm/min Platen Travel: 50mm Maximum
    Confining Pressure: 0-1MPa

    Product Description

    C002 Soil Strain Controlled bench triaxial compression test



    C002 Soil Strain Controlled bench triaxial compression test



    Application:



    Reliable information about soil strengths is a governing factor for safe and effective construction of embankments and foundation systems. Triaxial testing of soils involves preparing and mounting undisturbed or remolded specimens in a Test Chamber pressurized with water to create a confining pressure around the specimen. The Test Chamber is placed in a Pro-Loader Load Frame for testing by axial loading. Testing a specimen under confining pressure gives information about shear resistance, strength and cohesion, to predict such things as slope stability and structural foundation behavior. Tests can be conducted with specimens in unconsolidated-undrained condition as described in ASTM D2850, or consolidated-undrained or consolidated-drained conditions as noted in ASTM D4767.

    Triaxial Control Panels regulate air and fluid pressures in the Testing Chambers through a system of burettes, valves and regulators, and are a central point for supply connections of air, water, and drains. These Control Panels also used for hydraulic conductivity/flexible wall permeability testing as described in ASTM D5084.

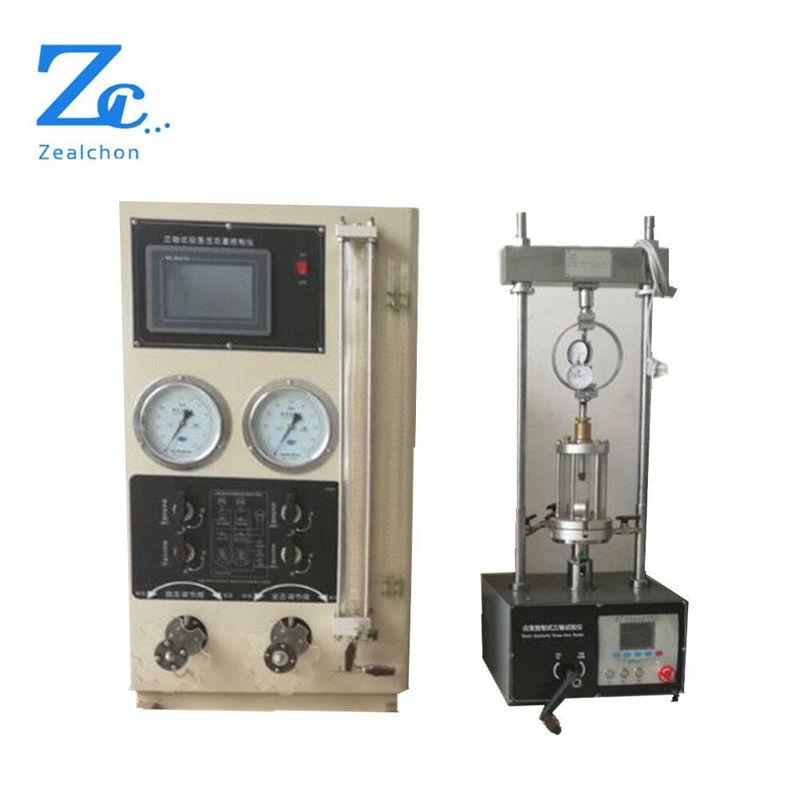

    TSZ-1A Bench Light-duty Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test. It is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1Mpa and sample diameter of Φ39.1x80mm. It can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
    Specifications:
    Specimen:Φ39.1mm X 80mm
    Capacity:10KN maximum 10KN
    Strain rate:0.016-1.6mm/min. mechanical speed with 6 gears
    Platen travel:50mm maximum
    Confining pressure:(σ3)0-1MPa
    Anti-pressure:(σb) 0-0.6MPa
    Pore pressure:(u)0-1MPa
    Volume deformation:0-25ml,minimum division:0.1ml
    Axial displacement:0-30mm(micrometer)
    Power supply:220V±10% 50Hz
    Dimension:
    Main unit:350 x 300 x 1100mm(L x W x H)
    Controller:500 x 500 x 925mm(L x W x H)
    Weight:170Kg

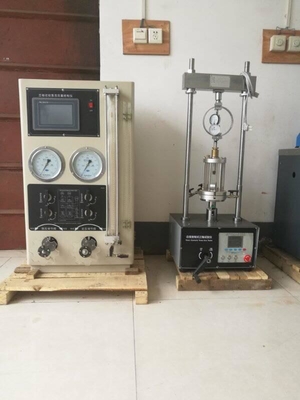

    Detailed Images
