Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO CE |
Model Number: | C027-A |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $600 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, Western Union, T/T |
Supply Ability: | 100sets/month |
Range: | 20N 40N 60N | Tip Size: | 0.3cm2 |
---|---|---|---|
Min.resolution: | 0.5N 1N 1.5N | Penetration Depth: | 6mm 6mm10mm |

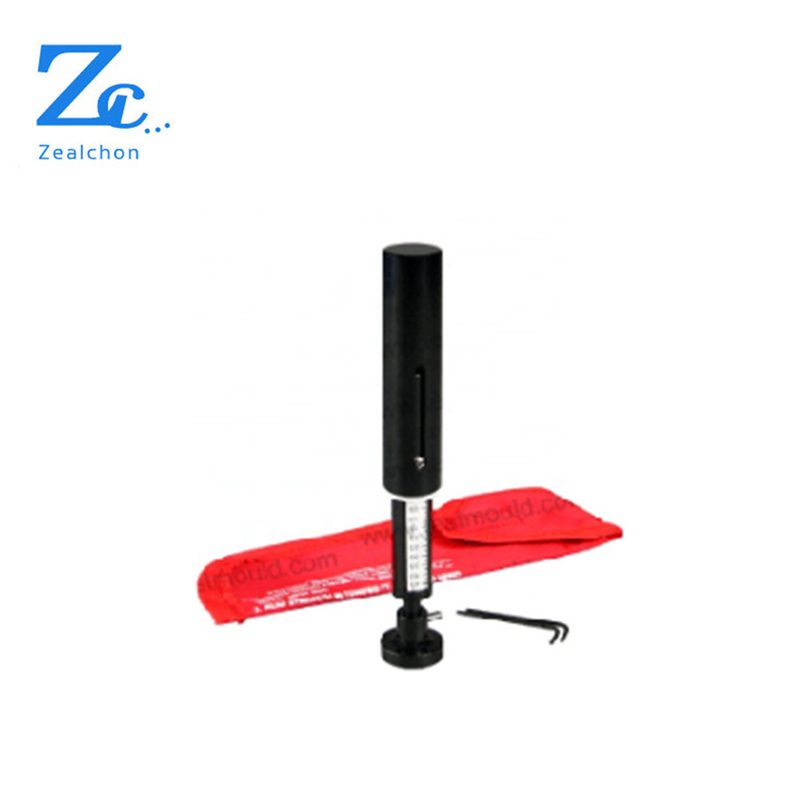

C027-A Pocket penetrometer for soil injection Resistance strength test
It is suitable for detecting strength of various soil type quickly, in order to confirm Soil tightness in different hardness, different temperature and density, assessing water content, penetration resistance of soil. It is the ideal equipment for Teaching, cultural relics, monitoring, scientific research institutes, colleges and institutes.
Technical parameters
Dynamometer type I II III
Probe tip type A B C
Range 20N 40N 60N
Tip size 0.3cm2 cylinderical 1.5cm2
cylinderical 30°tip
Min.resolution 0.5N 1N 1.5N
Penetration depth 6mm 6mm10mm
Measurement error +/-5%
Data ratio10.21.33
sizeΦ 15×185mm
weight 200g
