Product Description

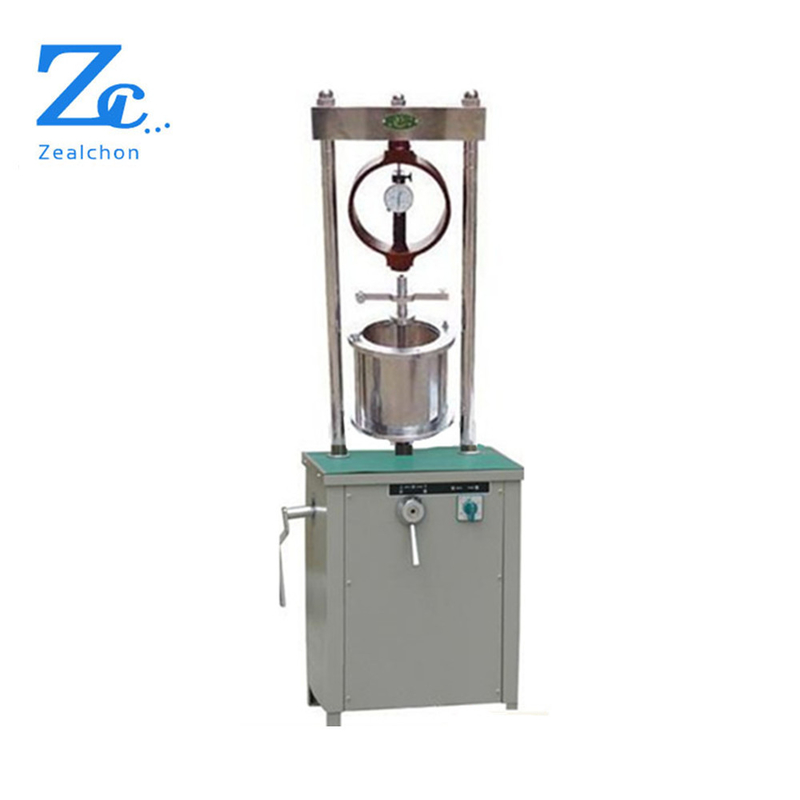

B014 Lab Testing Soils 30 KN CBR Test Machine Equipment with Load Ring
· Use: CBR test in Lab to determine soil bearing capacity
Standard:
· BS 1377, 1924, EN 13286-47, ASTM D1883, AASHTO T193 specifications
Equipment parts to above standards:
· 1 CBR Loading Press.
· Proving Ring. 28 kN (6,000 lb) capacity.
· Proving Ring. 50 kN (11,200 lb) capacity.
· Penetration Dial Indicator. 25 mm range x 0.01 mm divisions.
· 4 CBR Molds.
· 1 Spacer Disc.
· 4 Filter Screens.
· 1 Box, Filter Paper.
· 2 Swell Plates.
· 1 Tripod Attachment.
· 4 Surcharge Weights.
· 4 Slotted Surcharge Weights.
· 1 Compaction Hammer.
· 1 Straightedge.
· 1 Cutting Edge.
Specification:
| parameters |
details |
| Instrument load |
0-100 KN ±0.05% 7.5 KN 10 KN 30 KN 60 KN is optional |
| Loading rate |
A slow: 1 mm/min |
| fast 50 mm/min (manual can also be loaded) |
| Vertical load deformation |
0-20 mm ±0.01 mm (dial indicator) is optional |
| Power supply |
220 V, 50 HZ |
| Power |
750 W |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
