C008 Soil Casagrande Define Liquid Limit And Plastic Limit Apparatus Device

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	C008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Fall Frequency Of Soil Disc:	120beat/ Min	Shank Diameter:	10mm
Length:	90mm	Blade Length:	60MM
Chord Length:	93.5MM

Product Description

C008 Soil Casagrande Define Liquid Limit And Plastic Limit Apparatus Device

Application:

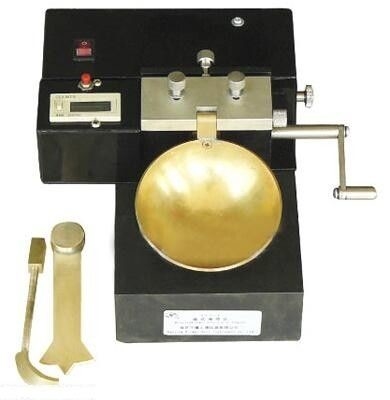

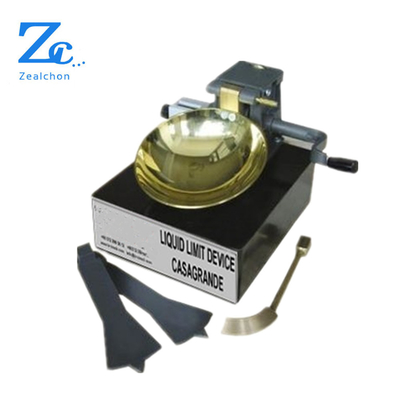

Liquid Limit Device
With consists of a brass cup held on an adjustable bracket. The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action. Complete with one casagrande grooving tool, one ASTM grooving tools and a height gauge block. Hand operated, with counter. As per IS : 2720 (Part-V), IS : 9259, BS : 1377, AS : 89
With consists of a brass cup held on an adjustable bracket. The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action. Complete with one casagrande-grooving tool, one ASTM grooving tools and a height gauge block. With counter. Fitted with a motor geared down to give approximately 120 RPM. Suitable for operation on 230 Volts, single phase, 50 cycles, A.C. supply.

Specification:

parameters	details
Fall frequency of Soil disc	120beat/ min
utility knife	shank diameter 10mm length 90mm,Blade length60mm blade width 10mm
Soil disc is made of brass, ball deficiency shape, chord length 93.5mm, Chord Height 27mm
