Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO CE |
Model Number: | C003-C |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $50000 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Voltage: | 220V ± 10V 50Hz Power0.75kW | Maximum Axial Load: | 10kN, 20kN, 30kN, 60kN, 100kN |
---|---|---|---|
The Axial Deformation: | 0-10mm ± 0.01mm (dial Indicator) Also Matchingdisplacement | Strain Rate: | 0.0024 ~ 4.5mm / Min |

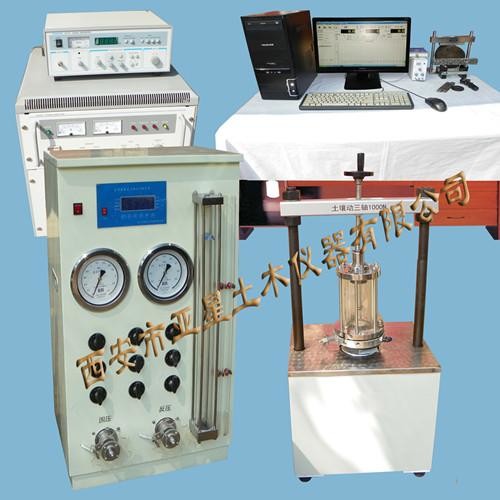

C003-C Soil dynamic triaxial machine (ASTM standard)
Uses: Widely used in engineering structures, housing construction, foundations, pile foundations, bridges, dams, airports, structural bodies and other fields. The material is subjected to vibration fatigue (distortion) under a specified environment, and its dynamic response, resonance frequency, mechanical damping durability, etc. are measured.
Instrument features: small size, light weight, wide frequency, high output efficiency.
The soil sample should be saturated fine-grained soil or sandy soil,
The dynamic strength characteristic test should adopt the consolidated undrained vibration test conditions;
The dynamic deformation characteristic test should adopt the consolidation undrained vibration test conditions;
The dynamic residual deformation characteristics test should adopt the consolidation drainage vibration test conditions
1, Voltage: 220V ± 10V 50Hz power0.75kW
2, Maximum axialload: 10kN, 20kN, 30kN, 60kN, 100kN matchingdynamometer, (also optionalforce sensordigital display)
3, Theaxial deformation: 0-10mm ± 0.01mm (dial indicator) also matchingdisplacement sensorLCD,orselectelectromechanicaldial indicatornewsletter
4, Strain rate: 0.0024 ~ 4.5mm / min steplessadjustmentto anysetting, LCD
5, The ambient pressure: 0-2MPa ± 0.1kPa LCDNC
6, Back pressure, pore pressure: 0-2MPa ± 0.1kPa LCDCNCpipebodyvariant0 ~ 50ml,0.1mlaccuracy
7, Lifting stroke: 0-90mm
8, The sample (confining pressure cylinder): ¢ 61.8 ¢ 39.1 ¢ 101
9, Thehostcontrol system,regulatingsystem, the bodybecomestubes,pressurechamber, constantpressure gauges, pressure regulators and other components.
Service:
1. Warranty 1 year of replacement and return.
2.Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
