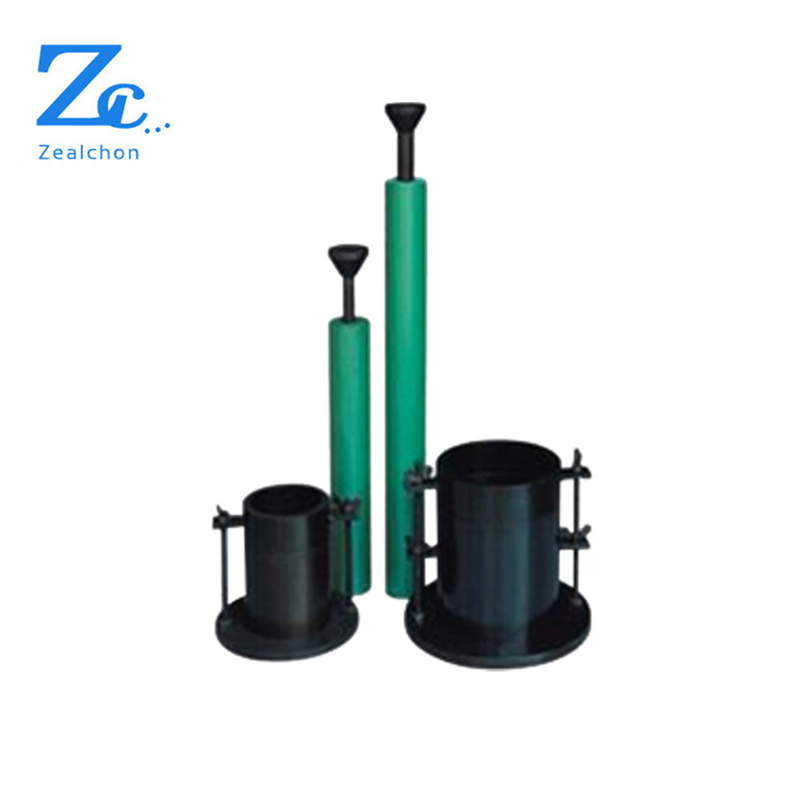

C023 Soil Modified compaction Hammers

C023 Soil Modified compaction Hammers

C023 Soil Modified compaction Hammers

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: c023

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $230
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Hammer Weight:: 2.5kg 4.5kg Hammer Falls Height: 305mm(light) 457mm
Mold Testing: φ100mm×127mm φ152mm×170mm Size:: L270×W270×H850mm

Product Description

C023 Soil Modified compaction Hammers





C023 Soil Modified compaction Hammers





Proctor Compaction Apparatus



It will be made of Mild steel having capacity of 1000 cc with an internal diameter of 100 + 0.1 mm and an internal effective height of 127.3 cm + 0.1 mm. The mould will be fitted with a detachable base plate and removable extension collar approximately 60 mm high.



The internal surface of the mould will be smooth. It will conform to the requirements given in the IS 2720 (Part VII). Complete with our own test certificate 2.6 Kg x 310 mm fall. A metal chrome plated rammer having 50 mm dia. Circular and weighing 2.6 kg. The rammer will be equipped with a suitable arrangement for controlling the drop to the specified height of 310 mm. It will conform to the requirement given in the IS 2720 (Part VII), IS 9198.With our own test certificate.



It will be made of Mild steel having capacity of 2250 c.c with an internal diameter of 150 + 0.1 mm and an internal effective height of 127.3 cm + 0.1 mm.



The mould will be fitted with a detachable base plate and removable extension collar approximately 60 mm high. The internal surface of the mould will be smooth. It will conform to the requirements given in the IS 2720 (Part VII). Complete with our own test certificate. 4.89 Kg x 450 mm fall. A metal chrome plated rammer having 50 mm dia. Circular and weighing 4.89kg. The rammer will be equipped with a suitable arrangement for controlling the drop to the specified height of 450 mm. It will conform to the requirement given in the IS 2720 (Part VII), IS 9198.With our own test certificate.





state standard YQS-1 part standard YZS-1
hammer weight: 2.5Kg 4.5Kg hammer weight: 2.5kg 4.5kg
hammer falls height:305mm(light) 457mm hammer falls height:305mm(light) 457mm

mold testing:φ102mm×116mm

φ152mm×116mm

mold testing:φ100mm×127mm

φ152mm×170mm

size:

L270×W270×H850mm

size:

L270×W270×H850mm

weight:14kg weight:14kg
