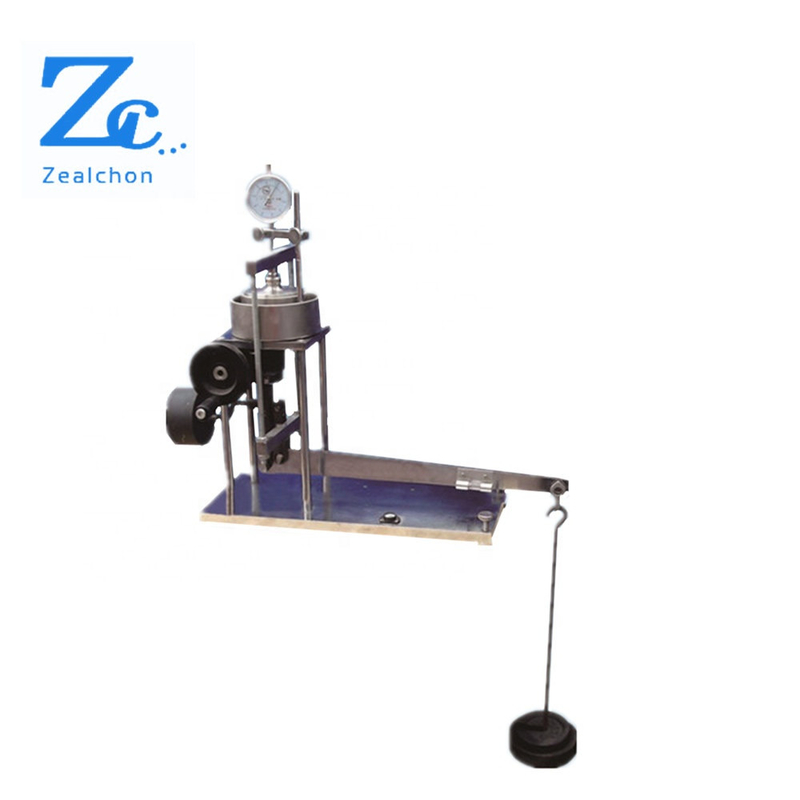

C018 one dimensional consolidation test Apparatus in soil laboratory equipment
Application:
This product is used for the compression test of soil. It can test the relationship between deformation and stress of soil or Void ratio and stress or Deformation and time. It can calculate soil Unit of settlement, the compression coefficient, the springback index, compression modulus, the coefficient of consolidation etc.
Measuring project depends on the project need. It can do low pressure test, and can do medium pressure test, more can do high pressure test
This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form. Three groups of tests can be performed at the same time. Stress points use bearing structure
Specification:
| parameters |
details |
| The sample area |
30cm² /50 cm² |
| lever ratio |
24:1 30cm² 20:1 50 cm² |
| Loading form |
weight |
| maximum pressure |
4000kpa (30 cm²) 11 loading 2000kpa (50 cm²) 10loading |
| pressure range |
12.5kpa~4000kpa |
| Dimensions |
steel structure L820mm*W820mm*H1240mm |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
