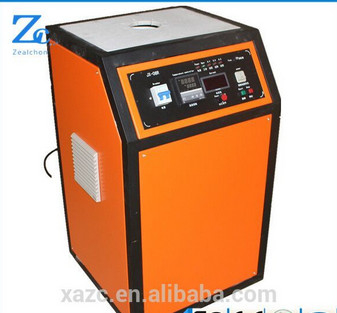

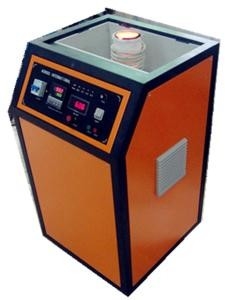

JXG-15 Portable induction melting furnace for gold smelting

JXG-15 Portable induction melting furnace for gold smelting

    • JXG-15 Portable induction melting furnace for gold smelting
    • JXG-15 Portable induction melting furnace for gold smelting
    • JXG-15 Portable induction melting furnace for gold smelting
    • JXG-15 Portable induction melting furnace for gold smelting
    • JXG-15 Portable induction melting furnace for gold smelting
  • JXG-15 Portable induction melting furnace for gold smelting

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: JXG-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Model: JXG-15KW Max Capacity: 10KG Gold Silver
    Oscillate Power Max: 15KW Input Power Desire: 3 Phase 380V 50/60HZ
    Oscillate Frequency: 1-20KHZ

    Product Description



    JXG-15 Portable induction melting furnace for gold smelting




    Main parts of the melting furnace system

    1. M.F Induction Heating Power.

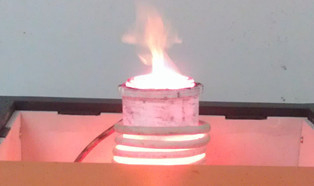

    2. Tilting type Melting Furnace.


    Characteristics of M.F Melting Furnace

    • Better Heating penetration and even temperature inside the melting metal.
    • M.F field force can stir the melting pool to achieve better melting quality.
    • Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.
    • Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.

    Main Technical Data
    Model JXG-15KW
    Max capacity 10KG gold silver
    Input power desire 3 phase 380V 50/60HZ
    Oscillate power max 15KW
    Max input current 23A
    Output voltage 70-520V
    Oscillate frequency 1-20KHZ
    Cooling water desire Only for generator: ≥0.2MPa, ≥3L/Min
    For generator & furnace: ≥0.2MPa, ≥6L/Min
    Duty cycle 100% 40°C
    Melting Speed First cool furnace: 50-60mins
    Second heated furnace: 20-30mins
    Package dimensions Power 650*750*680mm
    Furnace 1000*640*950mm
    Gross weight Power 90kg
    Furnace 110kg
    Cable length 2-6(Meters)


    Machine models and maximum melting ability
    (the first:50-60mins/furnace.the second:20-30mins/furnace)
    Model Steel ,iron Copper, Gold , Silver Aluminum
    15KWMelting Furnace   10KG 3KG
    25KW Melting Furnace 5KG 20KG 6KG
    35KW Melting Furnace 10KG 30KG 10KG
    45KW Melting Furnace 18KG 50KG 20KG
    70KW Melting Furnace 25KG 100KG 30KG
    90KW Melting Furnace 40KG 120KG 40KG
    110KW Melting Furnace 50KG 150KG 50KG
    160KW Melting Furnace 100KG 250KG 100KG


    List of Accessories In the Package

    Item Name of machine or parts Specification Amount
    1 15KW induction heater - 1 pc
    2 10KG Tilting-type furnace With coil and crucible inside 1 pc
    3 Foot pedal 3 core 1 pc
    4 Connect cable - 1 set
    5 Instruction Manual - 1 pc
    6 Product catalogue - 2 sets
