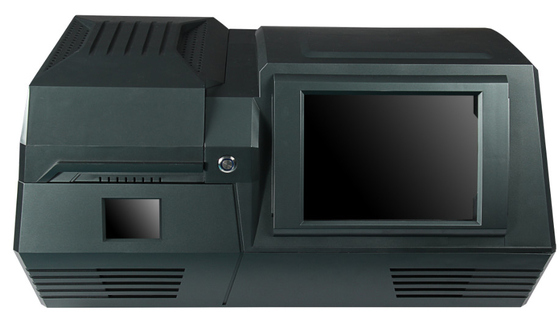

EXF9600 type energy dispersive spectroscopy xrf gold metal tester

EXF9600 type energy dispersive spectroscopy xrf gold metal tester

    • EXF9600 type energy dispersive spectroscopy xrf gold metal tester
    • EXF9600 type energy dispersive spectroscopy xrf gold metal tester
    • EXF9600 type energy dispersive spectroscopy xrf gold metal tester
    • EXF9600 type energy dispersive spectroscopy xrf gold metal tester
    • EXF9600 type energy dispersive spectroscopy xrf gold metal tester
    • EXF9600 type energy dispersive spectroscopy xrf gold metal tester
  • EXF9600 type energy dispersive spectroscopy xrf gold metal tester

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: EXF9600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $12800
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    The Test Time: 10sec ~ 100sec The Measuring Element: All Metal Elements
    External Dimension:: 480*480*390 (mm) Weight: 33kg
    Tube Voltage: 5KV ~ 50KV

    Product Description

    EXF9600 type energy dispersive spectroscopy gold metal tester



    Energy dispersive spectroscopy gold metal tester



    Instrument performance and configuration:

    Analysis of the scope of 1ppm to 99.99%

    The measurement precision of RSD is less than or equal to 0.1%

    The test form: solid, powder, liquid

    Tube voltage :5KV ~ 50KV

    High voltage power supply: 0 ~ 50KV

    Light pipe flow: 0 A ~ 1000 A

    Camera HD camera

    Detector proportional counter tube

    Multi channel analog multichannel analyzer

    The sample chamber size: 380*380*60 (mm)

    The test time: 10sec ~ 100sec

    The measuring element: Au, Ag, Pt, Pd, Ni, Cu, Zn, Cd, In, Rh

    Quantitative analysis, qualitative analysis software

    External dimension: 480*480*390 (mm)

    Weight: 39Kg

    Instrument of environmental requirements

    Ambient temperature 15 degrees C to 30 degrees C

    The relative humidity: 35% ~ 70%

    Power requirements: AC 220V + 5V, 50/60HZ, no electromagnetic interference source near the big power and vibration



    Product pictures:



    Testing Result





    Packing and Shipping







    Application
