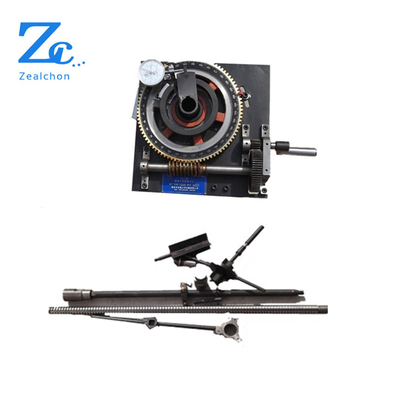

C041 Soil In-situ vane shear apparatus

C041 Soil In-situ vane shear apparatus

    • C041 Soil In-situ vane shear apparatus
    • C041 Soil In-situ vane shear apparatus
    • C041 Soil In-situ vane shear apparatus
    • C041 Soil In-situ vane shear apparatus
  • C041 Soil In-situ vane shear apparatus

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: C041

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 2500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Cross Board Size: ¢75mm×150mm ¢50mm×100mm Steel Ring Maximum Allowable Button Space: 800N.m Precision 0.55N.m Turbine Indexing Instructions 1.25° Per Gradutaion
    Leader: ¢30mm×1040mm Dial Indicator: Range 0-10mm Division Value 0.01mm

    Product Description

    C041 Soil In-situ vane shear apparatus





    C041 Soil In-situ vane shear apparatus





    Application:





    It is used to measure Natural shear strength of saturated soft clay on site.



    Test:Press cross slab head equipped with four blades into depth of the reservation, And cross slab head rotation, measure The resistance of the cylindrical surface is required formed by Vane shear head.

    Then put the equivalent resistance of shear resistance on the surface of the cylindrical units



    Due to the equipment in the determination of strength index in drilling need to use with drilling equipment, generally can do within 30 m shear test



    Cross plate drilling rod should have sufficient strength under the condition of full load , in order not to make the drilling rod distorted, or Torque Angle of rotation curve must be amended







    Specification:







    Parameter Details
    Cross board size ¢75mm×150mm ¢50mm×100mm
    Steel ring maximum allowable button space 800N.m precision 0.55N.m Turbine indexing instructions 1.25° per gradutaion
    Leader ¢30mm×1040mm
    5,dial indicator range 0-10mm division value 0.01mm



    Detailed Images



    Lab Display



    Trade Shows

    C041 Soil In-situ vane shear apparatus





    C041 Soil In-situ vane shear apparatus

    Service:







    1. Warranty 1 year of replacement and return.





    2, Providing factory visit and study, technical training





    3, 24-hour technical support by e-mail or phone





    4, Providing laboratory construction program design guidelines





    5, Providing product design and OEM service







    Packing and Shipping

    C041 Soil In-situ vane shear apparatus
