C012-A Soil Testing Equipment single Stepless speed direct shear test apparatus

C012-A Soil Testing Equipment single Stepless speed direct shear test apparatus

C012-A Soil Testing Equipment single Stepless speed direct shear test apparatus

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: C012A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
The Sample Area: 30cm²height2cm Lever Ratio: 1:12
Farmar Add Vertical Load: Grading 50,100,200,300,400kPa The Maximum Horizontal Shear Stress: 1.2kN
The Vertical Deformation: Dialgage 0-10mm Precision 0.01mm

Product Description

C012-A Soil Testing Equipment single Stepless speed direct shear test apparatus



C012-A Soil Testing Equipment single Stepless speed direct shear test apparatus





Application:



It is the common way to determine the shear strength of soil. under the vertical pressure, Applying horizontal shear to shear, shear stress are obtained. We can determine the shear strength parameters, internal friction Angle and cohesive force according to the coulomb's law. It contains Manual and electric function, and it is equipped with Limited position switch to protect the instruments.





Specification:







parameter details
The sample area 30cm²height2cm
lever ratio 1:12
Farmar add vertical load grading 50,100,200,300,400kPa
The maximum horizontal shear stress 1.2kN
The vertical deformation dialgage 0-10mm precision 0.01mm
Instrument weight 34kg Attached weight 6.12kg
size 710×295×440(mm)





Detailed Images

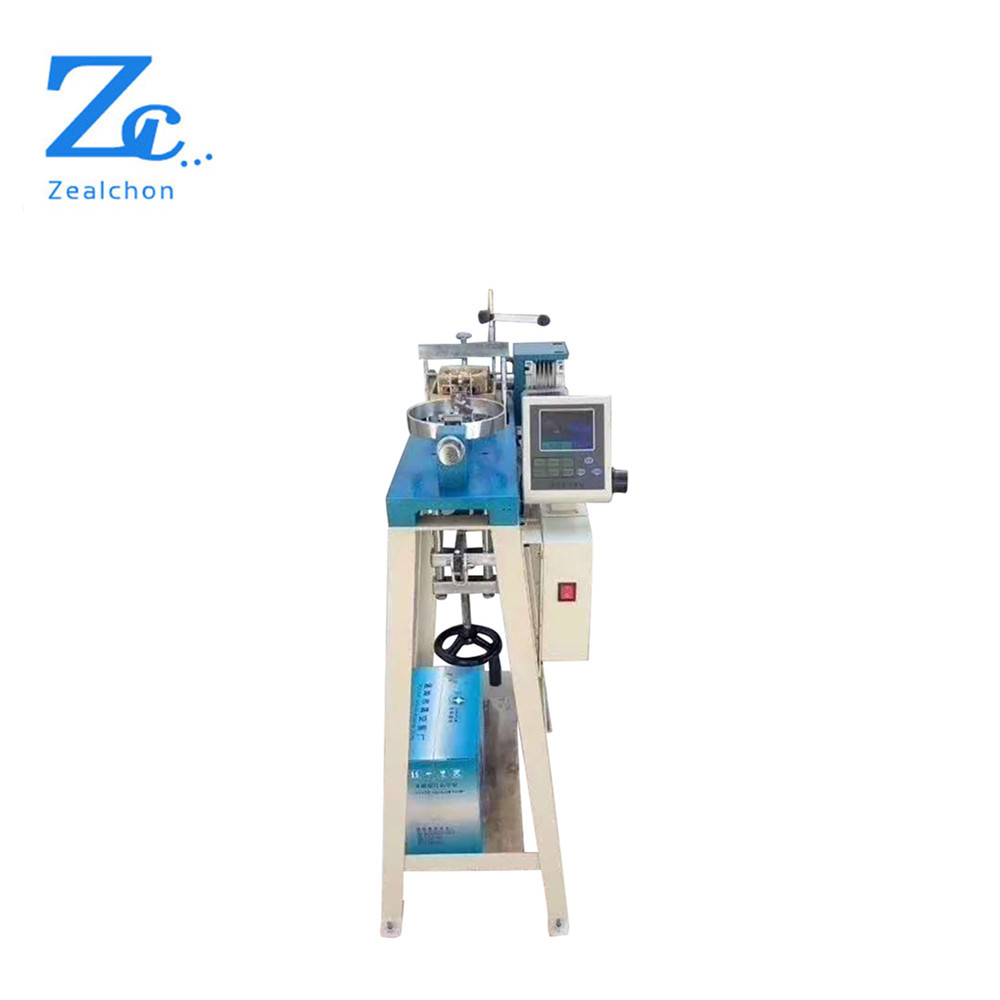

C012-A Soil Testing Equipment single Stepless speed direct shear test apparatus

Lab Display



Trade Shows





Packing and Shipping







After-Sales Service



Contact Us





Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service
